Note: T8-C3 needs to be used with T-U2T.

Specifications

MCU	ESP32 S3/ ESP32-C3 32-bit, RISC-V-based MCU
Flash	4MB

Support Wi-Fi, Bluetooth V5.0+BLE

Programming language	C/C++, MicroPython
Programming platform	Arduino, ESP-IDF
Onboard functions	Reset Button, Battery Power Detection, TF card
Antenna	3D WiFi Antenna [Use by default] (Support WiFi IPEX external antenna, but you need to adjust  the resistance)
Power supply	Support USB Type-C / Li-Po Battery  JST Connect type : JST 2pin 1.25mm

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T8

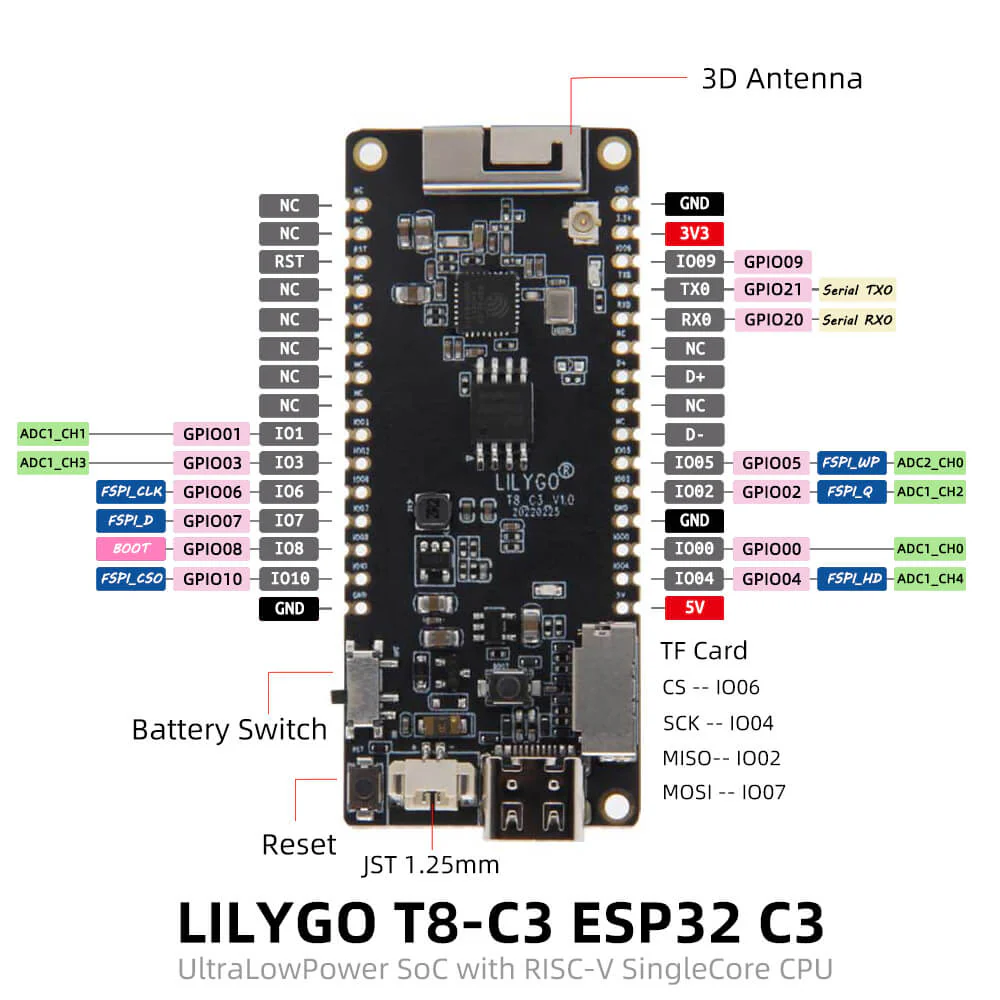

Pin Diagram

What In The Box

T8-C3

T8-S3
