T-Encoder

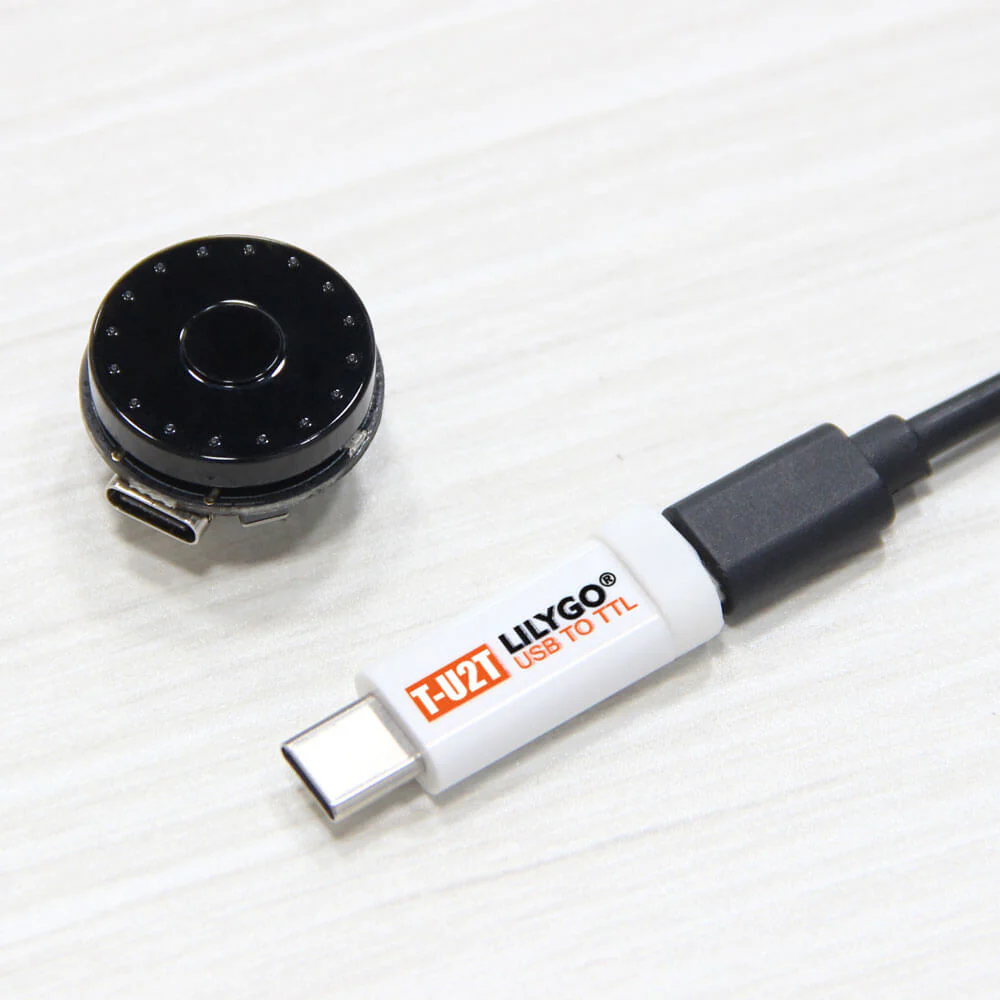

LILYGO® TTGO T-Encoder ESP32 Wireless Module RGB LED Ring Encoder T-U2T Downloader WiFi Bluetooth Programming Development Board
Note : Since the motherboard does not have USB Serial port chip, it needs to be equipped with T-U2T to program.
Specifications
| MCU | ESP32-PICO-V3-02 |
| Flash | 8Mb |
| PSRAM | 2Mb |
| Bus Interfaces | UART, SPI, I2C |
| Pin Header | male/female |
| Wireless Connectivity | Wi-Fi:802.11 b/g/n/, BLE V4.2 |
| Onboard Buttons | RESET |
| WS2812 RGB LED | Data IO25 |
Sample Code For Reference [Github]
If you need technical support please check the link to find more details.

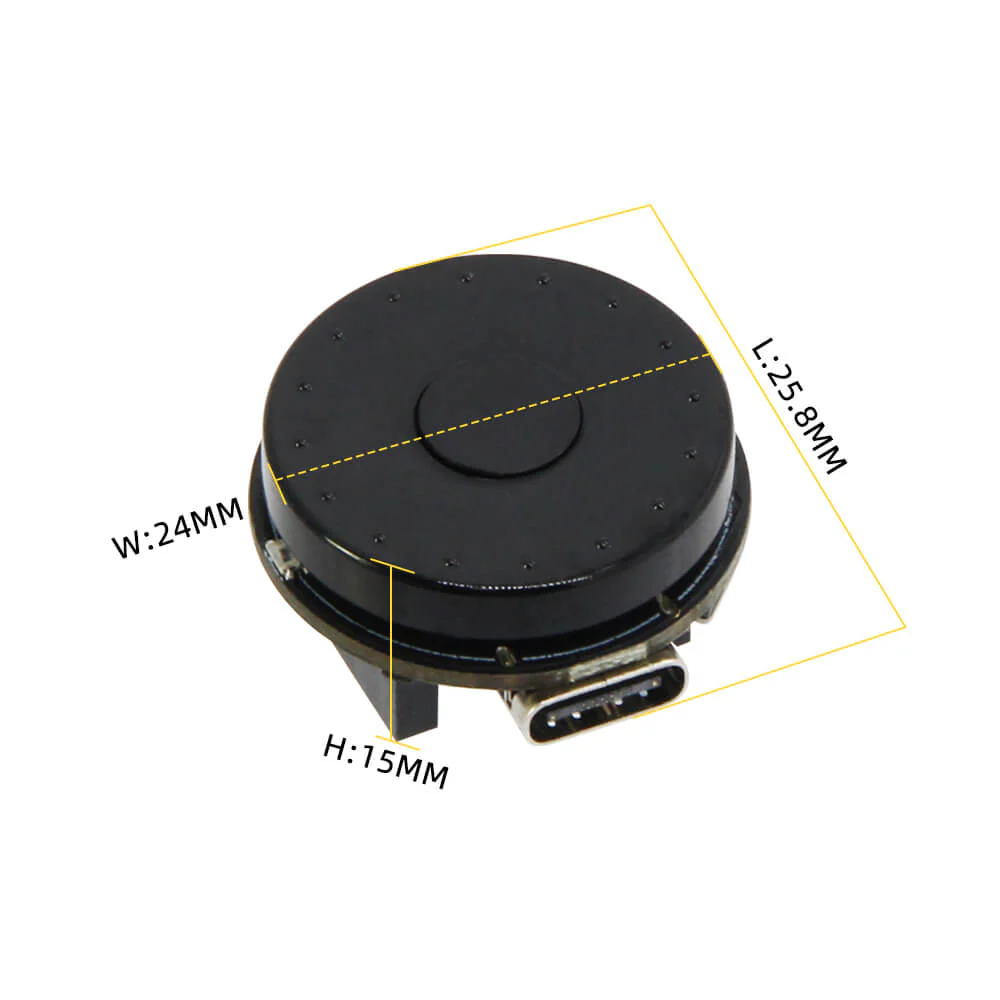

Size

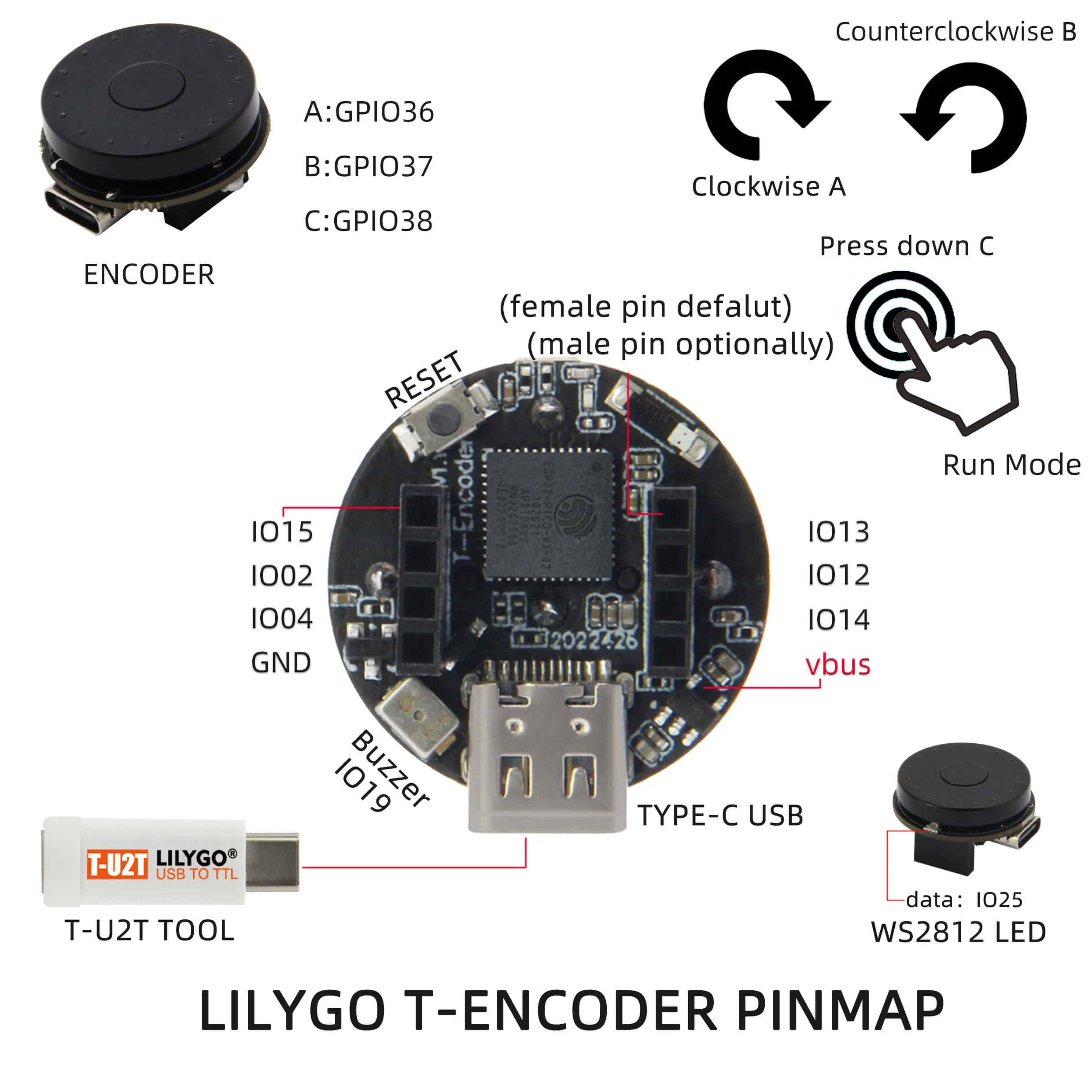

Pin Diagram
T-Encoder Male Pin
T-Encoder Famale Pin
T-UT2
