LILYGO® FabGL VGA32 VGA ESP32 PSRAM Module V1.4 Controller PS/2 Mouse Keyboard Graphics Library Game ANSI/VT Terminal Circuits

Specifications



Hardwear

Chipset	TTGO Micro32
FLASH	QSPI flash 4MB
SRAM	520 kB SRAM
Button	Reset, IO36
Extended function	VGA, PS/2 , TF card
USB to TTL	CH9102
Modular interface	UART、SPI、 SDIO、I2C_ LED PWM、TV PWM、I2S、 IRGPIO、 capacitor touch sensor、ADC、DACLNA pre -amplifier
On-board clock	40MHz crystal oscillator
Working voltage	2.7V-3.6V
Working current	About 30mA
Sleep current	230uA
Working temperature range	40°C ~ +85C
Size&Weight	Without VGA : 60.99mm' 32.06mm* 16.79mm  With VGA : 66.70mm*32.06mm * 16.79mm 21.25g

Power Supply

Power Supply	Micro USB 5V/1A
Charging current	500mA
Battery	3.7V lithium battery

Bluetooth

Protocol	Meet Bluetooth v4.2BR/EDR and BLE standard
Radio frequency	with .-97dBm sensitivity NZIF receiver Class-1,Class 2&tClass-3 emitter AFH
Audio frequency	CVSD&SBC audio frequency

Software

Wi-Fi Mode	Station/SoftAP/SoftAP +Station/P2P
Security mechanism	WPA/WPA2/WPA2- Enterprise/WPS
Encryption Type	AES/RSA/ECC/SHA
Firmware upgrade	UART download/OTA (Through network/host to download and write firmware) Software
Software Development	Support cloud server development /SDK for user firmware development
Networking protocol	IPv4、IPv6、 SSL. TCP/UDP/HTTP/FTP/MQTT
User Configuration	AT + Instruction set, cloud server, android/iOSapp
OS	FreeRTOS
Add Function	Audio Frequency



Technology Support [Github]

If you need technical support please check the link to find more details.

FabGL VGA32

1. Simple Pin Diagram

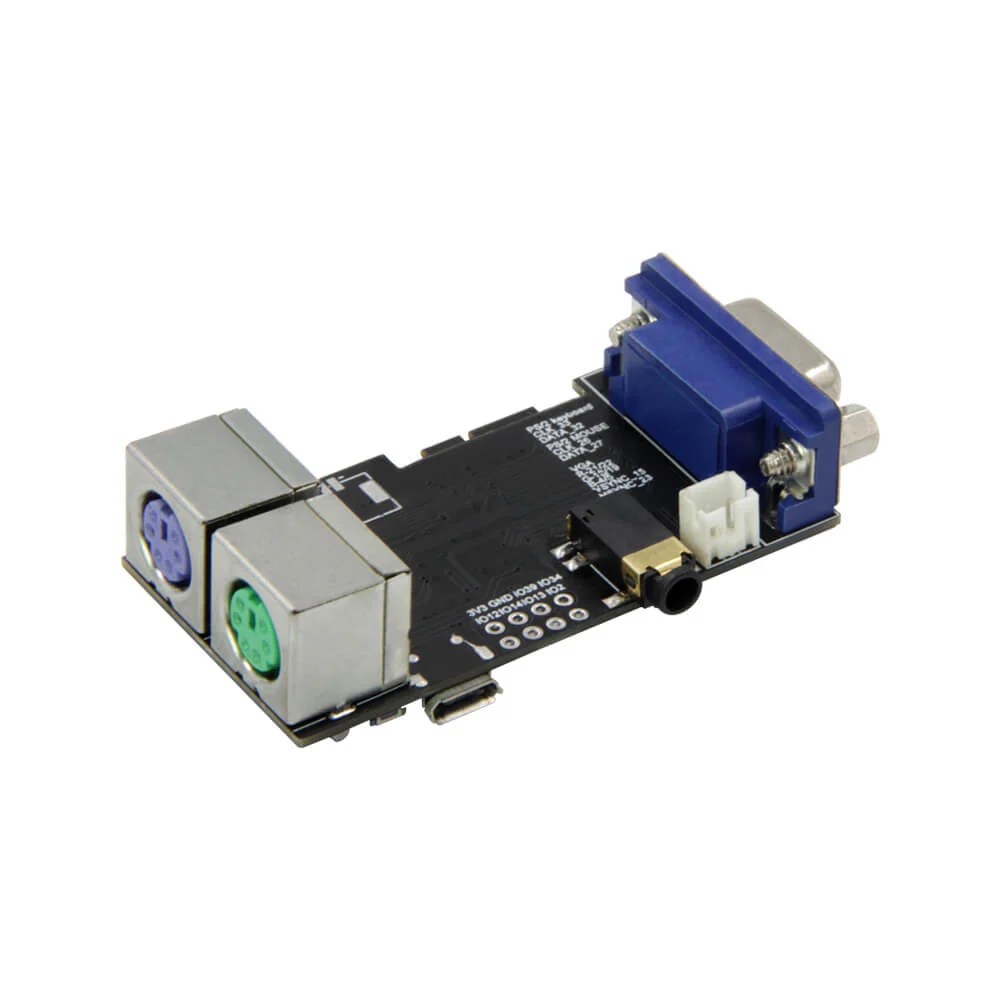

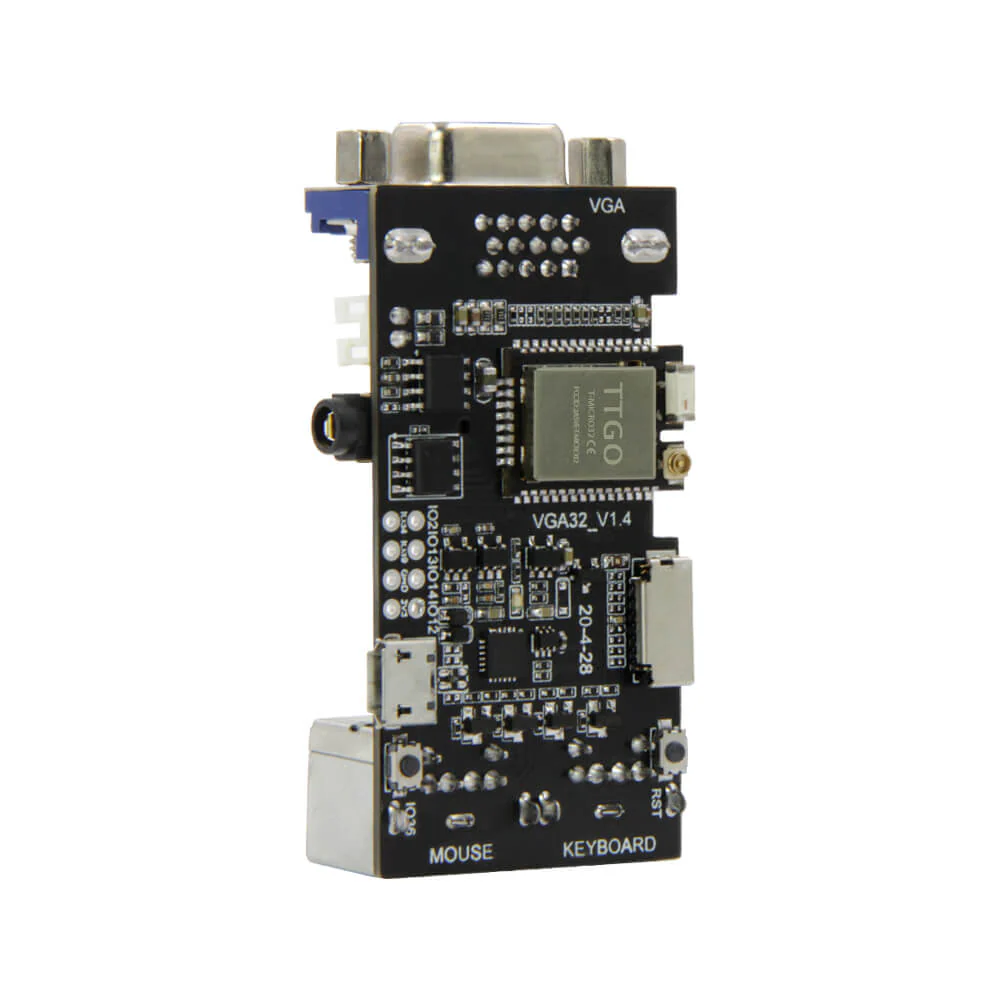

2. Appearance Details

1 X LILYGO® FabGL VGA32
