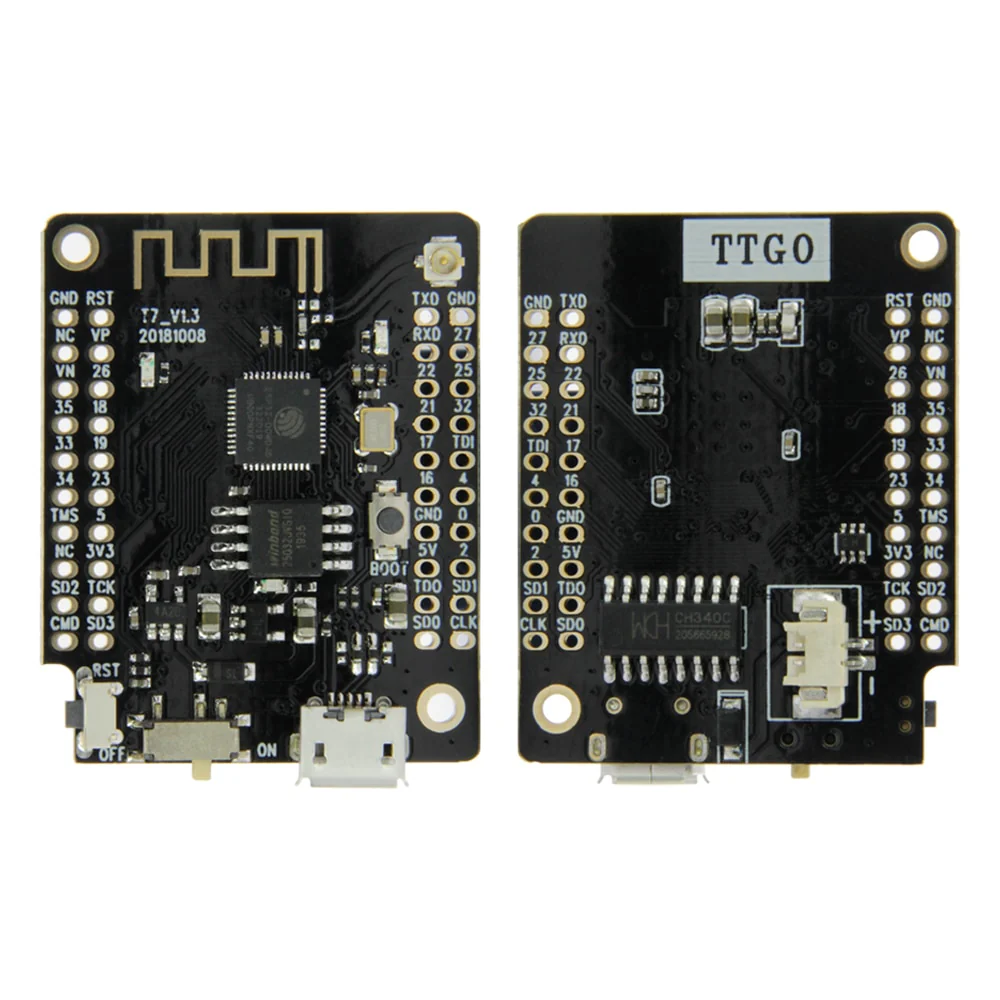

LILYGO® TTGO T7 V1.3 MINI 32 ESP32 WiFi Bluetooth Module Development Board

Description

Main chip	ESP32
Flash memory chip	25Q32
Charging IC chip	TP4054
USB to serial port chip	CH340C
JST Connector	2Pin 1.25mm

Technical support

If you need technical support, check out the links for more details.

https://github.com/LilyGO/ESP32-MINI-32-V1.3

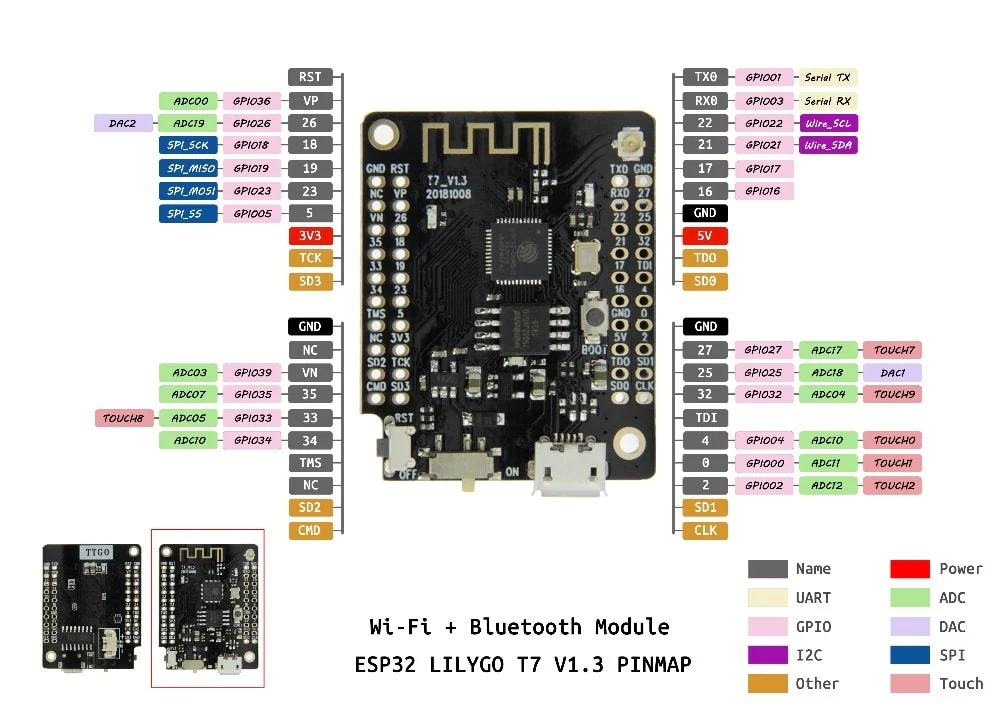

Pin Reference Description

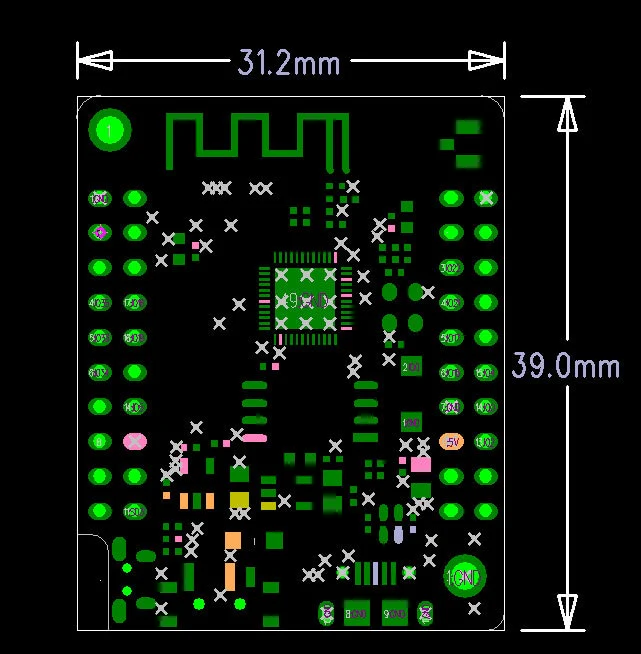

Product Size

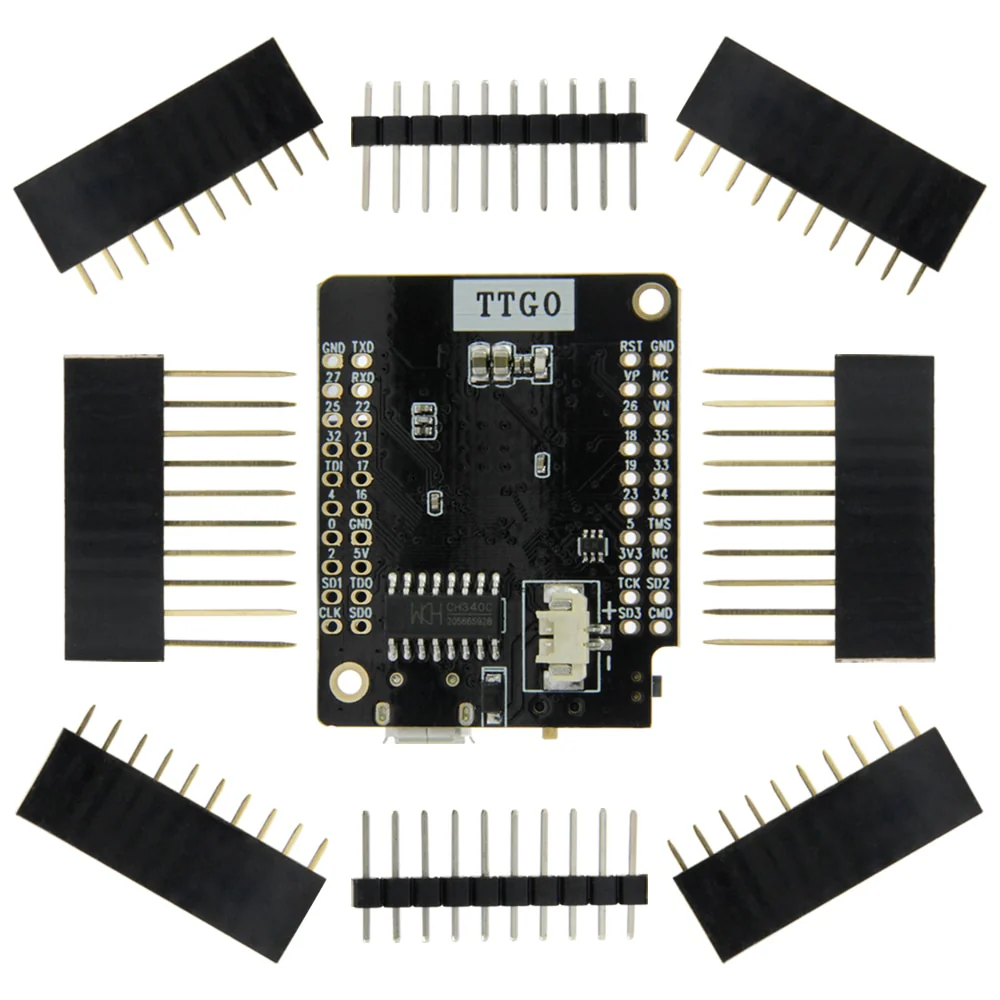

Shipping list

• 1 X TTGOT7 Mini32 V1.3 Development Board
• 2 X Long female pins
• 4 X Short female pins
• 2 X pins
