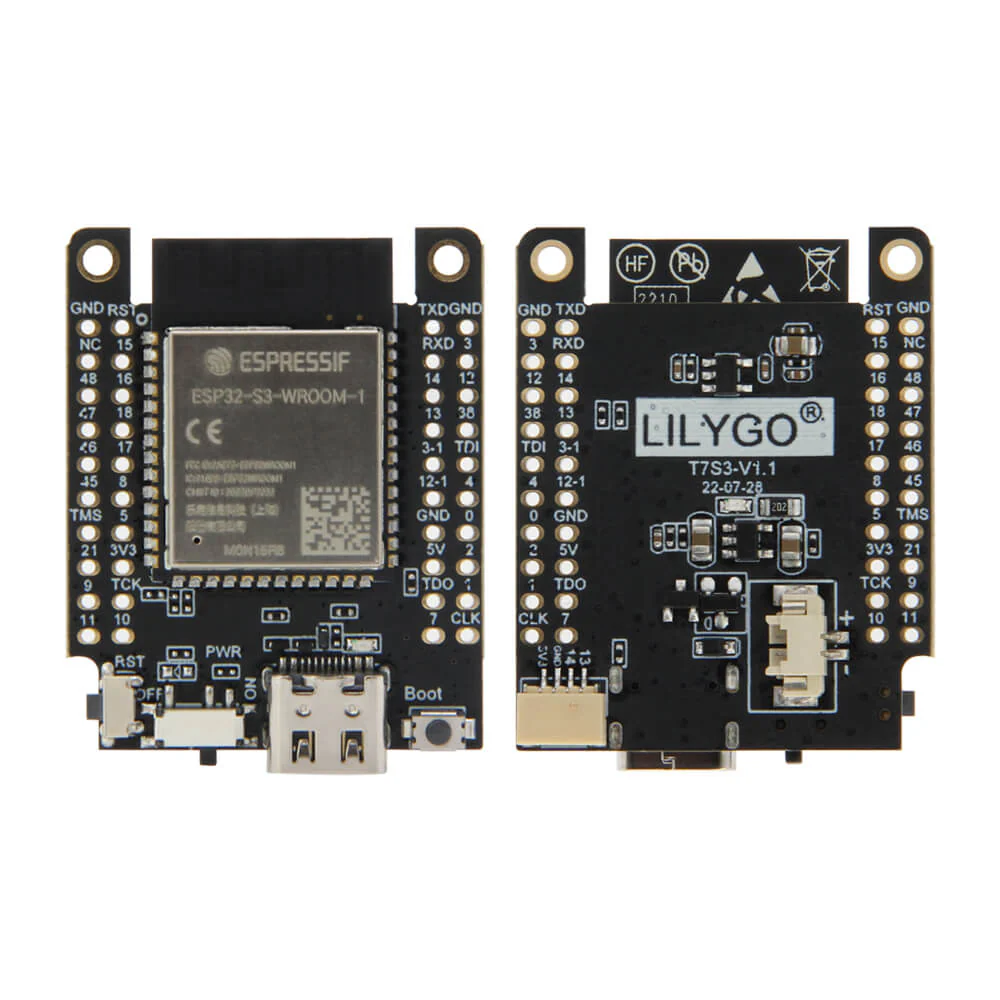

• T7 S3 is an ESP32 module based on ESP32-S3-WROOM-1, supports Wi-Fi Bluetooth 5, built-in Flash: 16MB PSRAM: 8MB.

• Onboard "USB 3.0" "Reset Switch" "Power (PWR) Switch" "4-PIN

• Support STEMMA QT/ Qwiic JST - SH 1.0mm

Specification

MCU	ESP32-S3-WROOM-1 Xtensao 32-bit RISC-V MCU
Support	Wi-Fi, Bluetooth 5 + Bluetooth Mesh
Flash	16MB
PSRAM	8MB
Programming language	C/C++, MicroPython
Programming platform	Arduino-IDE, VS Code

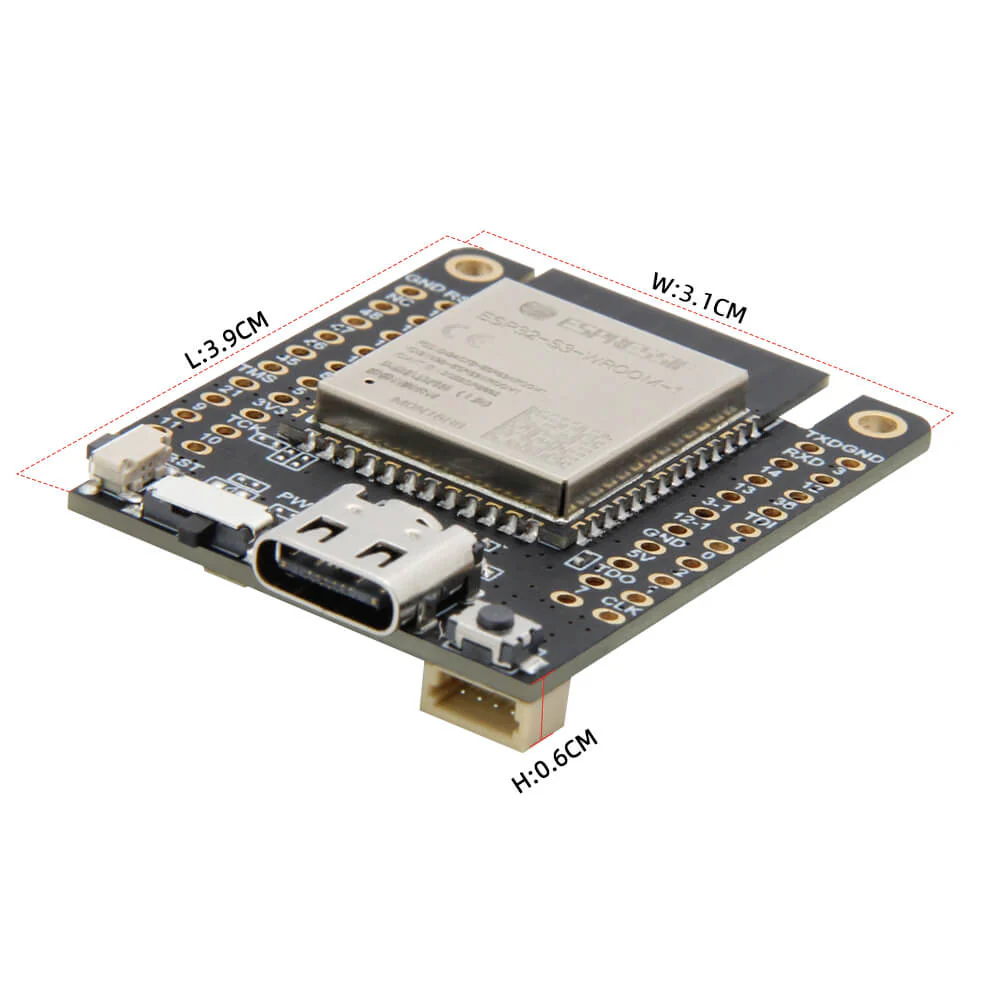

1. Size

• 1 X T7 S3 V1.1
• 2 X 2.54mm Male Pin (1*10P)
• 2 X 2.54mm Long Female Pin (1*10P)
• 2 X 2.54mm Short Female Pin (1*10P)
• 1 X 1 X JST 1.25mm 2P
