T3-S3 MVSR

Product image 1
1 / 7
+2

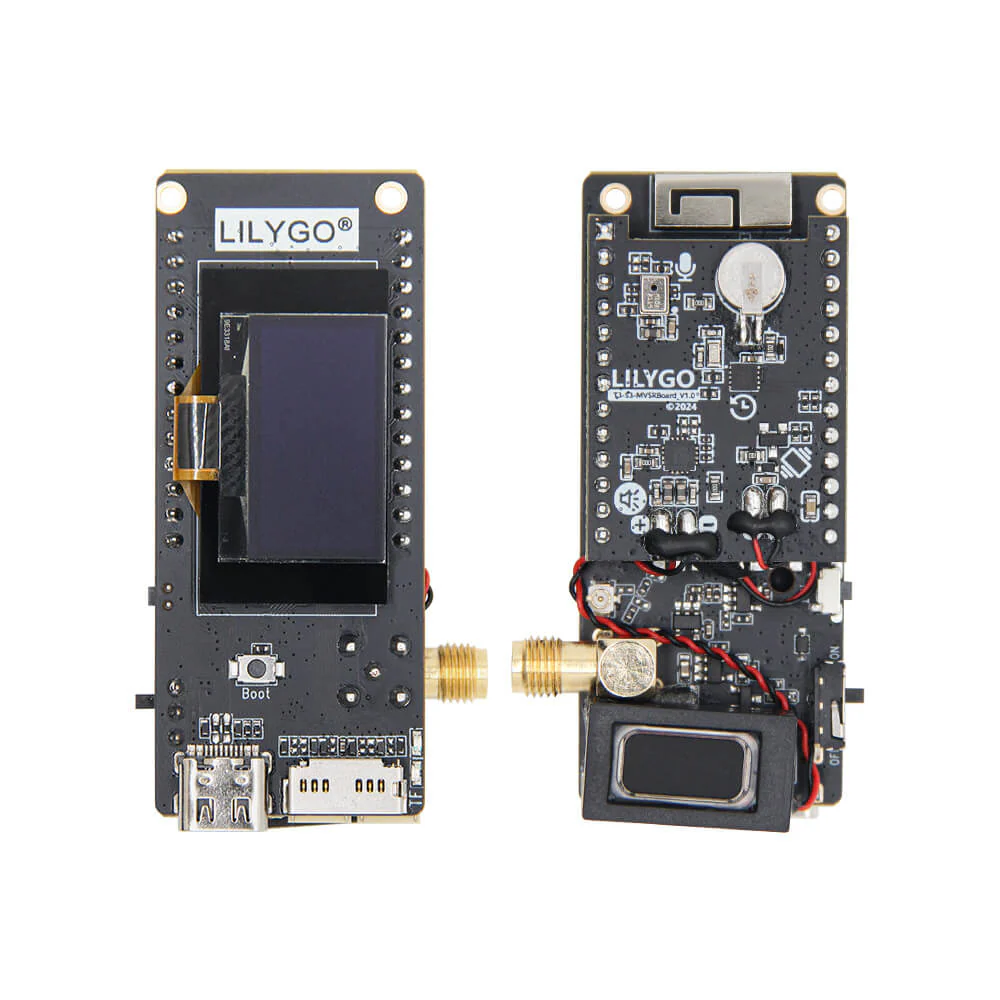

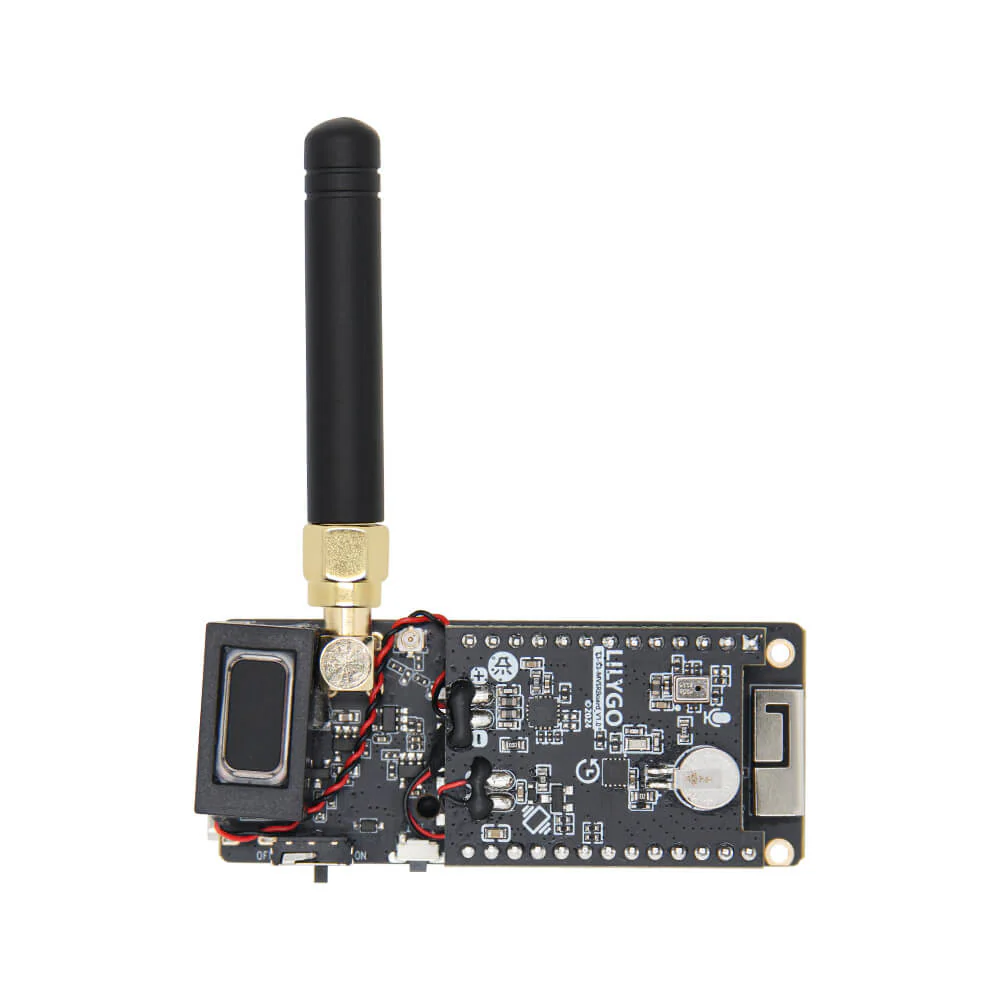

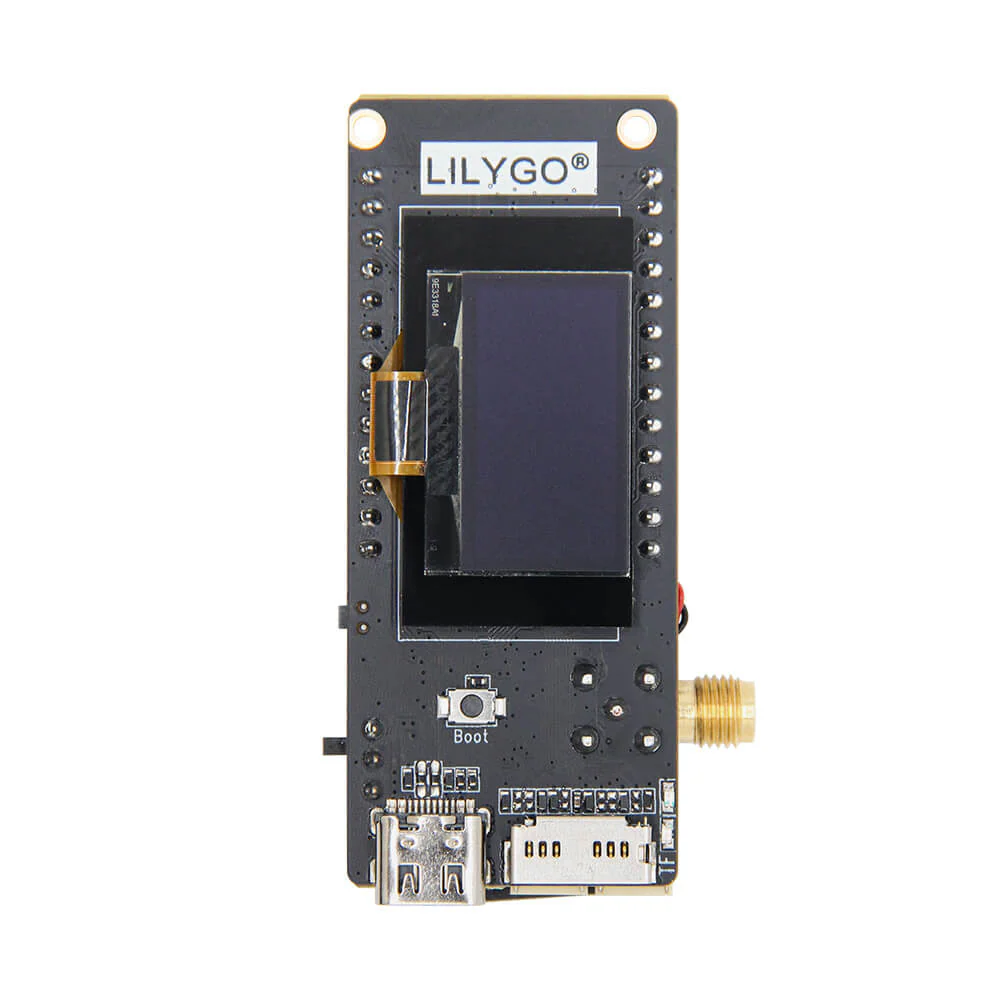

T3-S3 MVSR

Specifications

Vibration Motor and USB/3.7V Lipo battery power supply

MCU ESP32S3FH4R2
Flash 4MB
PSRAM 2MB
Wireless protocol 2.4Ghz Wi-Fi + Bluetooth 5.0
Onboard functions Reset + Boot Button, Support TF Card

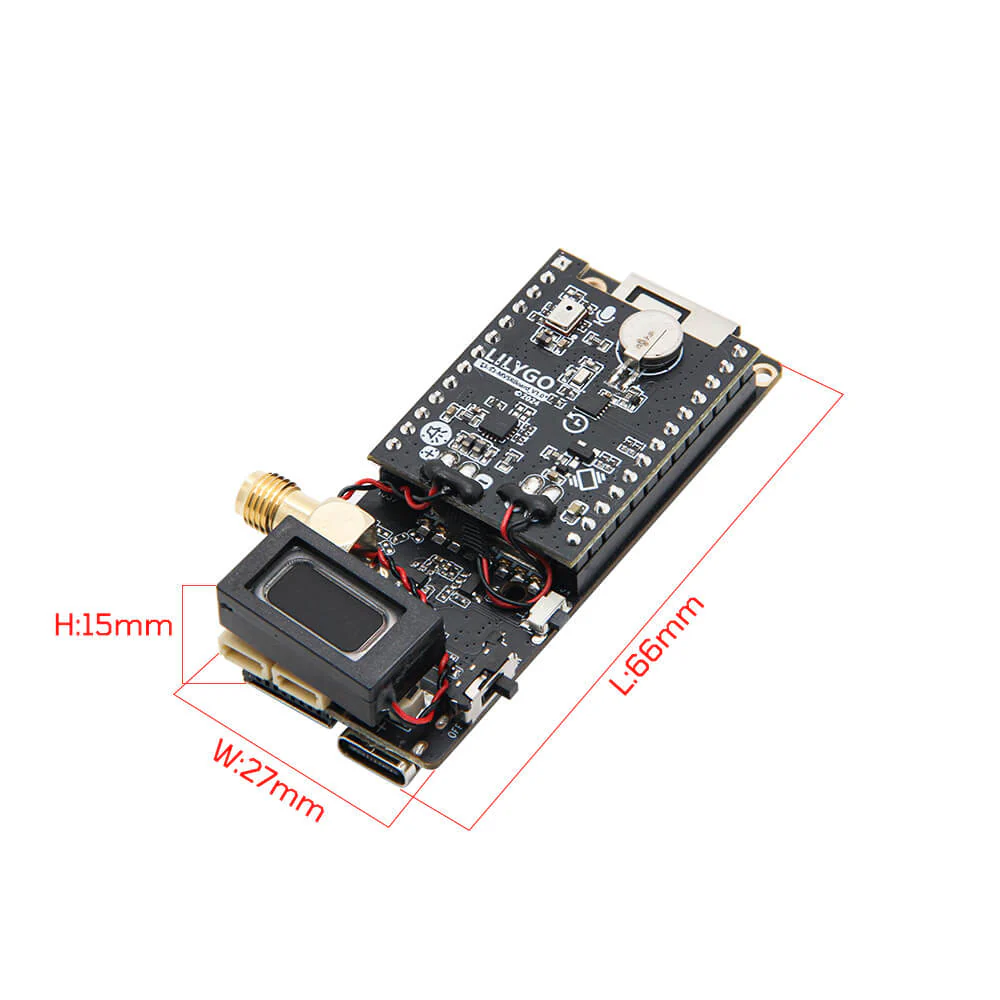

Size 66 x 15 x 27mm
USB Charging  5V 500mA

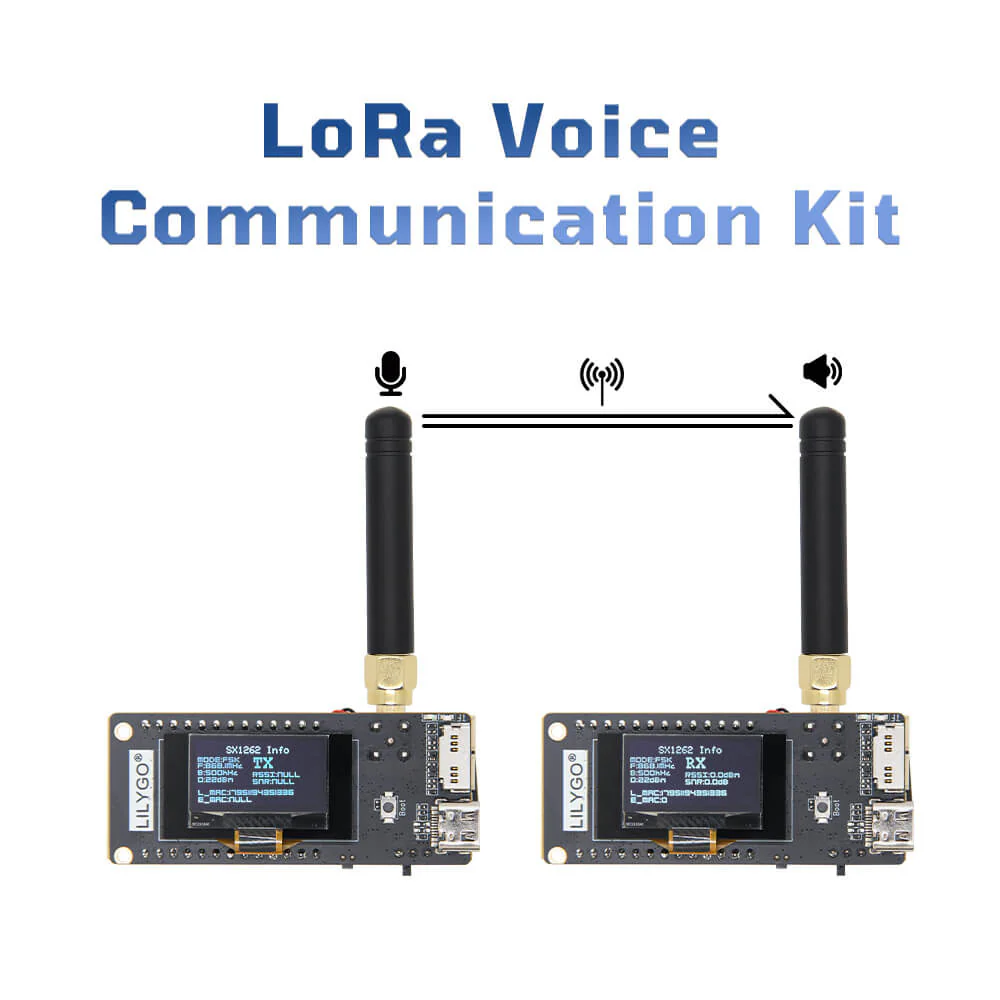

Voice Communication Kitiver

Speaker MAX98357A
Microphone MSM261S4030HOR


0.96 inch SSD1306 Driver I2C OLED

Resolution  128x64
I2C interface SDA--IO18 SCL--IO17

Tech Support

ℹ️Product information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

What's In The Box



Specifications

Vibration Motor and USB/3.7V Lipo battery power supply

MCU ESP32S3FH4R2
Flash 4MB
PSRAM 2MB
Wireless protocol 2.4Ghz Wi-Fi + Bluetooth 5.0
Onboard functions Reset + Boot Button, Support TF Card
Size 66 x 15 x 27mm
USB Charging  5V 500mA


Voice Communication Kitiver

Speaker MAX98357A
Microphone MSM261S4030HOR


0.96 inch SSD1306 Driver I2C OLED

Resolution  128x64
I2C interface SDA--IO18 SCL--IO17

Tech Support

ℹ️Product information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

What's In The Box



Select Warehouse
Select Version
From $7.84

Original: $26.15

-70%
T3-S3 MVSR—

$26.15

$7.84

Description

Specifications

Vibration Motor and USB/3.7V Lipo battery power supply

MCU ESP32S3FH4R2
Flash 4MB
PSRAM 2MB
Wireless protocol 2.4Ghz Wi-Fi + Bluetooth 5.0
Onboard functions Reset + Boot Button, Support TF Card
Size 66 x 15 x 27mm
USB Charging  5V 500mA


Voice Communication Kitiver

Speaker MAX98357A
Microphone MSM261S4030HOR


0.96 inch SSD1306 Driver I2C OLED

Resolution  128x64
I2C interface SDA--IO18 SCL--IO17

Tech Support

ℹ️Product information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

What's In The Box
