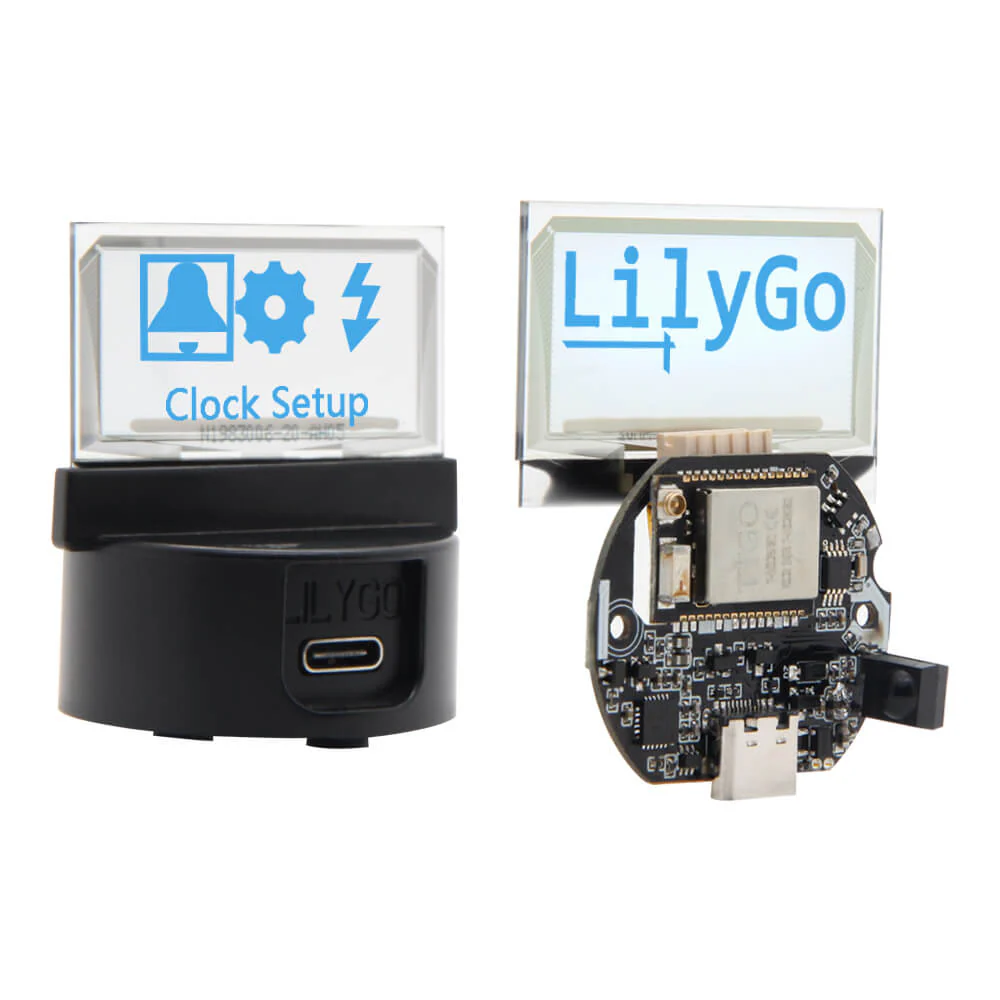

T-TV continues the concept of programmable products. Based on the transparent OLED design, we made a programmable desktop transparent small TV.

Factory firmware routines are built-in, UI interface functions controlled by remote control, including desktop clock, airplane games, chess, animation play, and host sleep, through this routine, you can modify the function application you want.

Specifications

Main control chip	ESP32

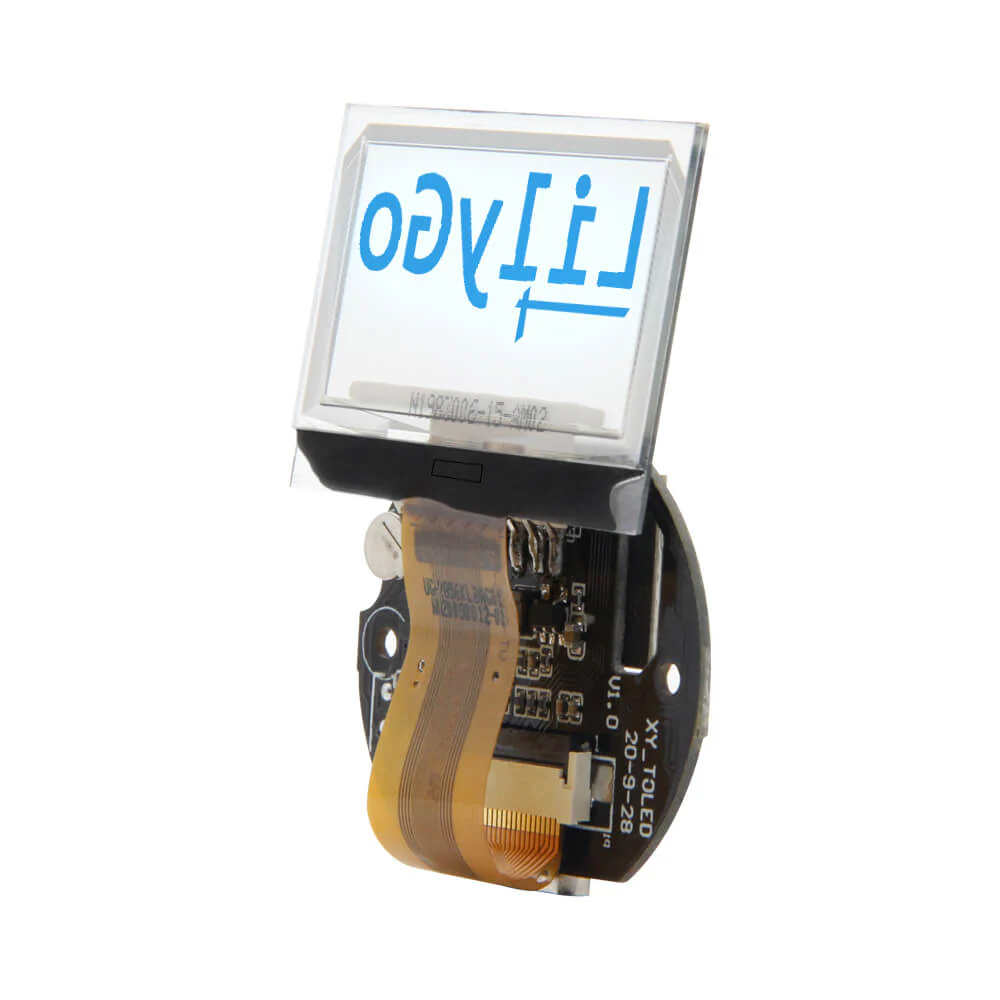

OLED	1.54 inch blue transparent OLED
Touch button	TTP223
Infrared receiver	HS0038
Battery	105ma

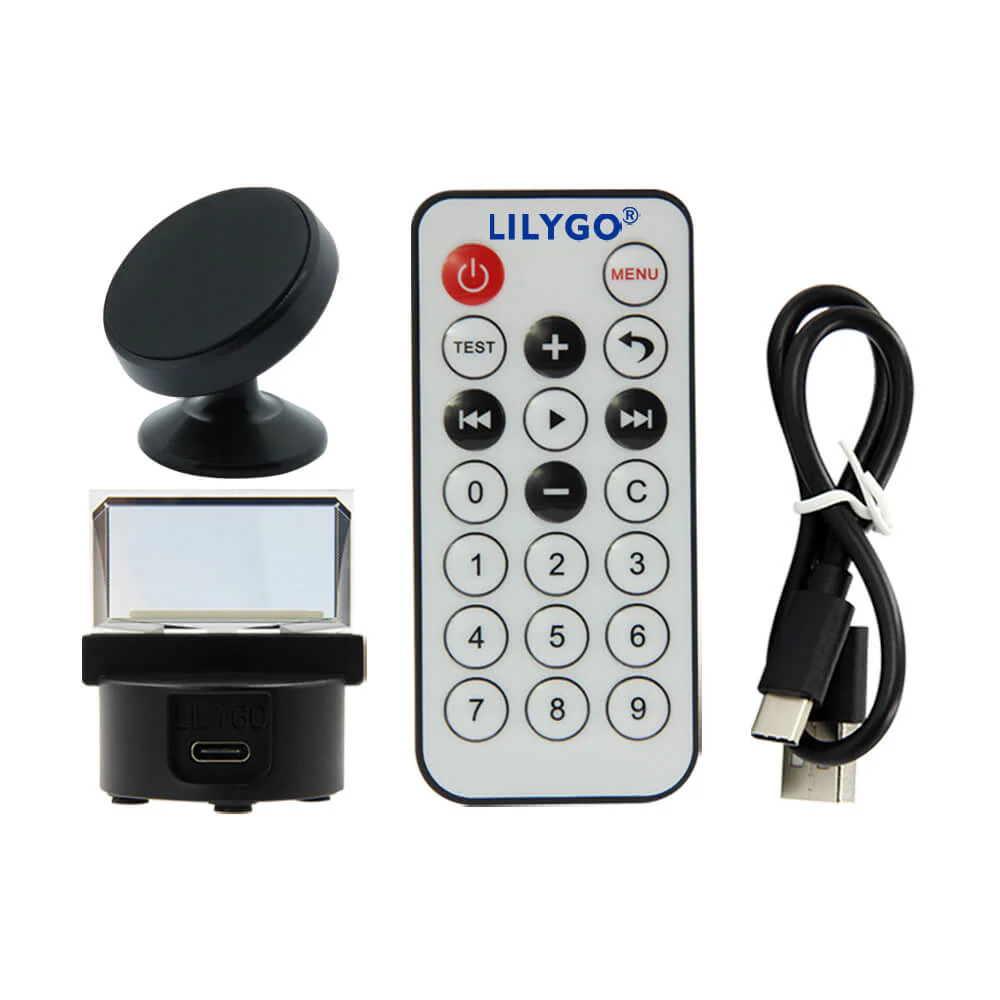

Remote control	Infrared transmitter remote control
Expansion interface	2.0 4PIN I2C/UART
USB	T-type-C
Shell	PC+ABS
USB input voltage	5V
Expansion interface	3.3V output
Wireless	Wifi/Bluetooth

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

T-TV

Pin Diagram

More

With Shell

Without Shell
