T-SIMCAM is based on the design of the PCI-E motherboard, it is equipped with：

• MCU: ESP32-S3 (supports WIFI and Bluetooth 5.0)
• Camera: OV2640 2 Million Pixels
• mPCIe: Support LILYGO T-PCIE SIM module
• Microphone: I2S Digital Microphone

Note:

This needs to be used with our PCIE-SIM module

Specifications

MCU	ESP32-S3R8
Wireless Connectivity	Wi-Fi 802.11, BLE 5+ BT mesh
Programming Platform	Arduino-ide, VS Code
Onboard functions	Boot + Reset Button, TF Card
PSRAM	8MB
FL ASH	16MB
0V2640-Camera module
Pixels	2 Million (UXGA 1622X1200) Voltage: 3.3V

Dual-core LX7 microprocessor

12S Digital Microphone Low Power mode, high performance, and reliability.



Sample Code For Reference [Github]

If you need technical support please check the link to find more details.

T-SIMCAM

What engineers have done with T-SIMCAM

 Connecting with the server anywhere

1. Size

2. Pin Diagram

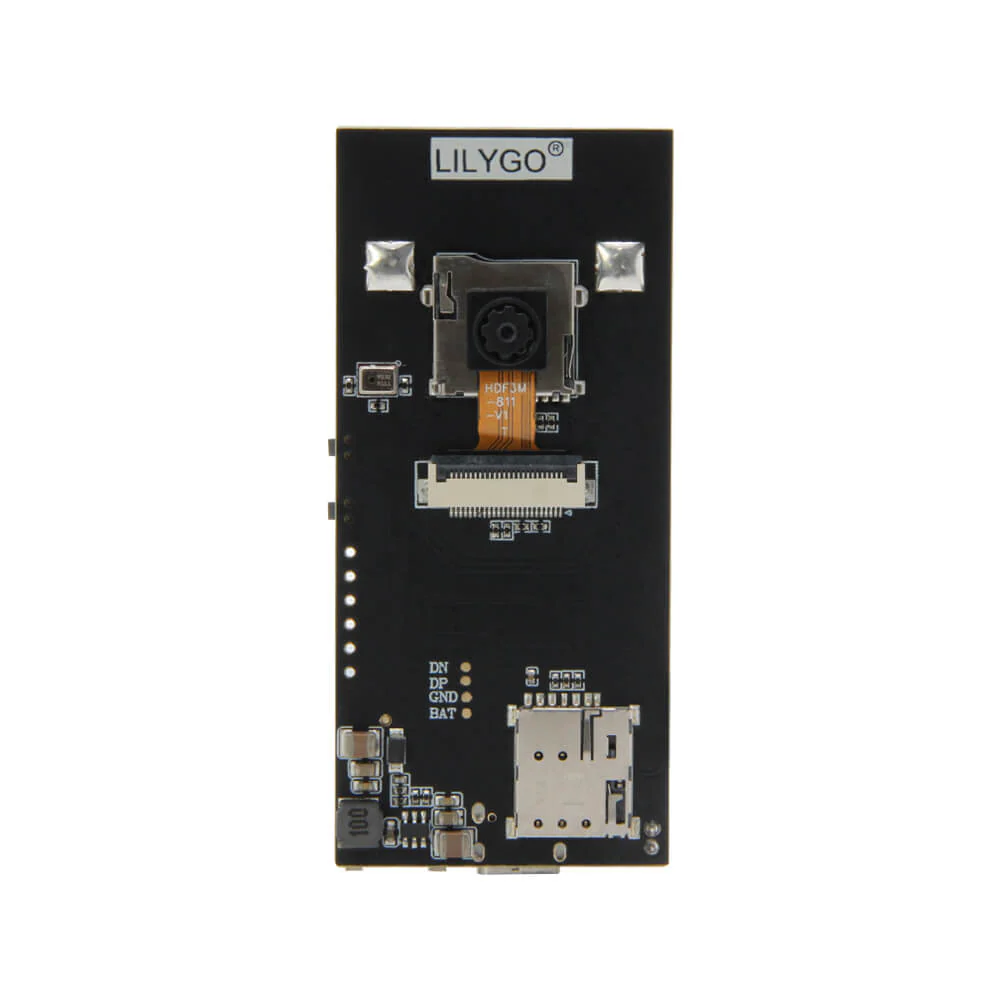

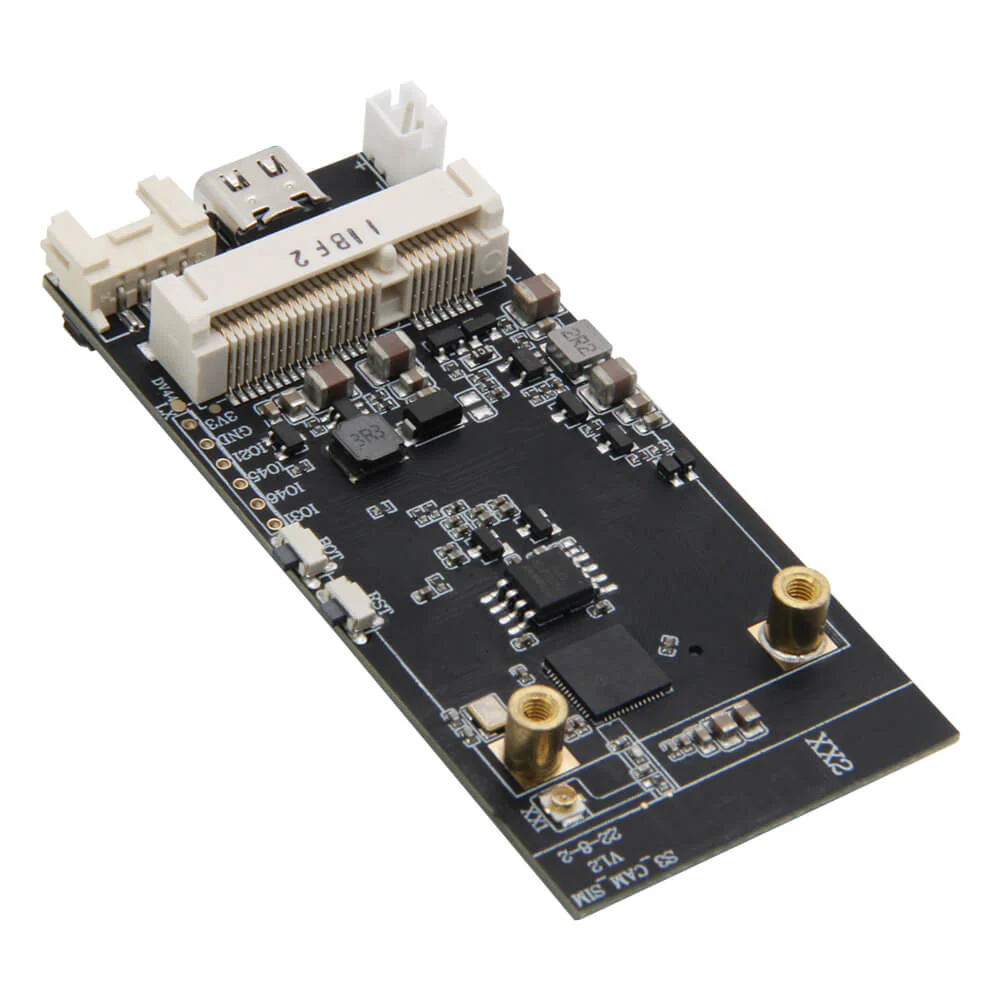

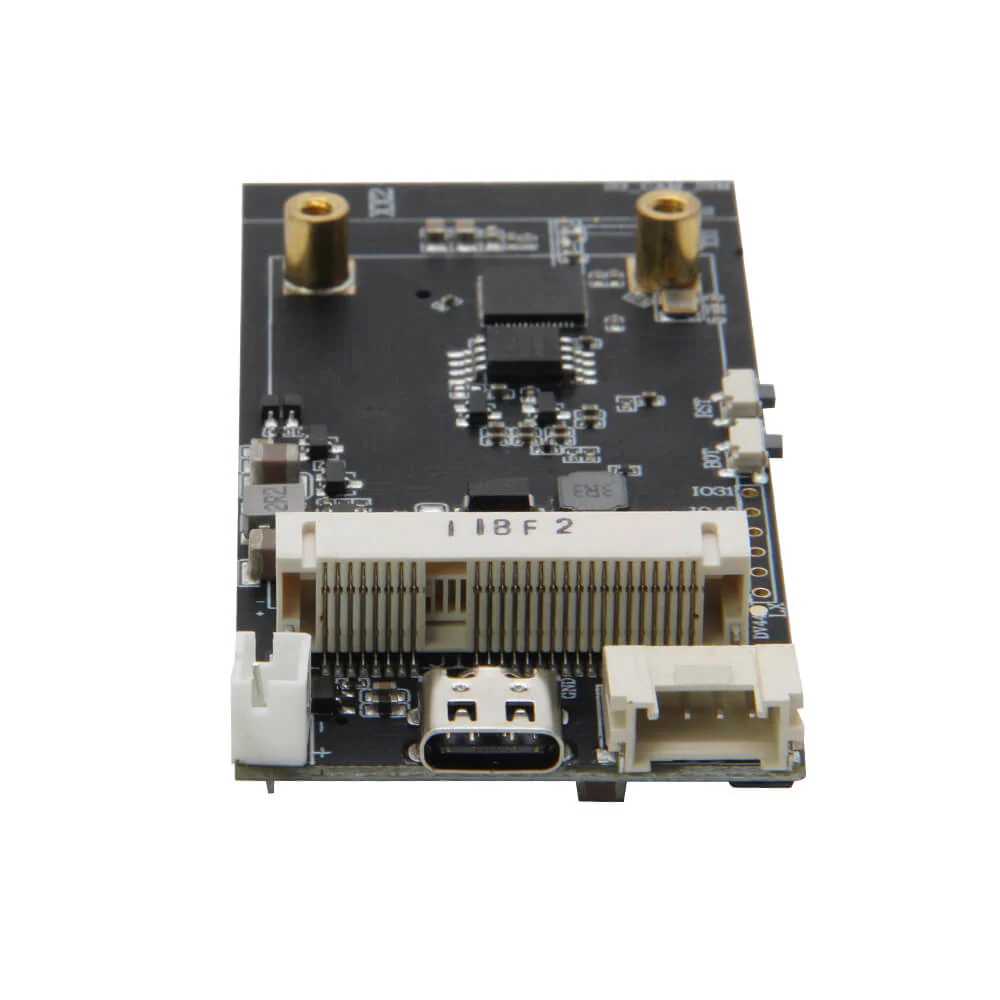

3. Appearance

Note : Shipping list only the control board.

If you need PCIE SIM module, you need to purchase it separately .
