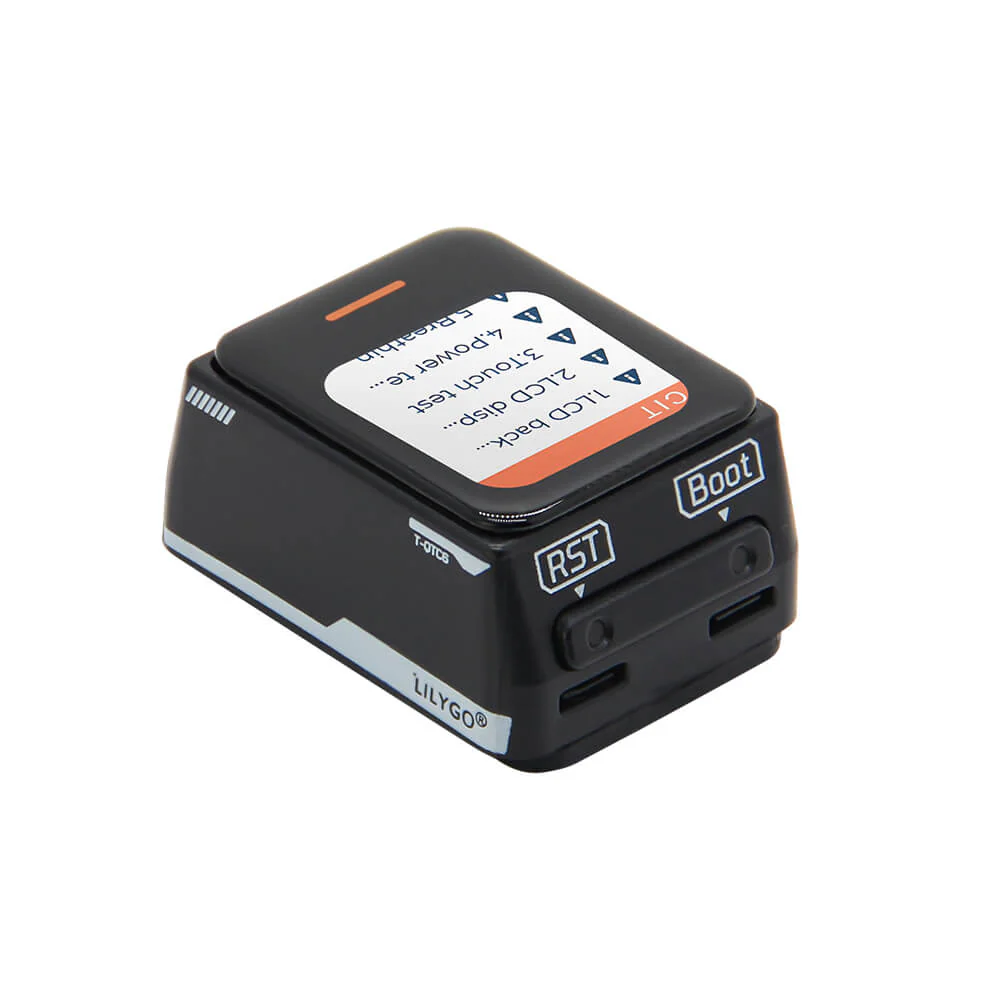

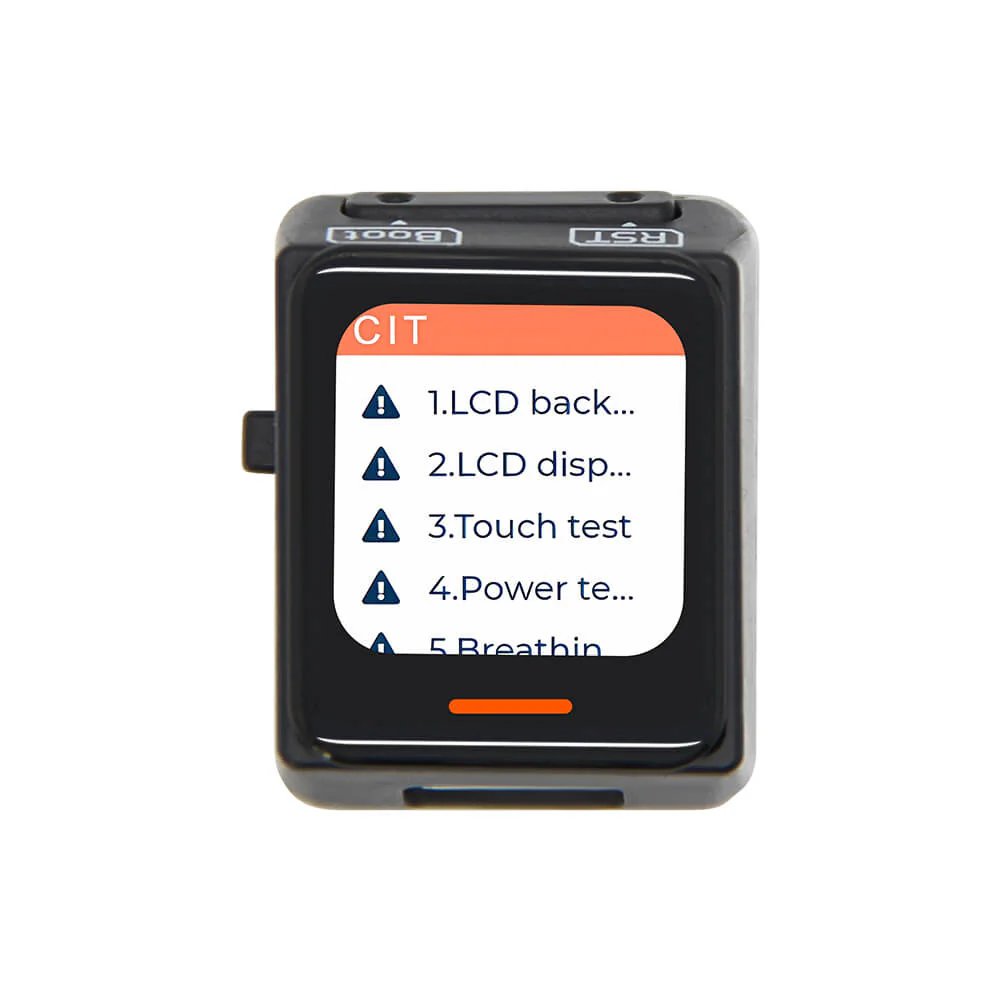

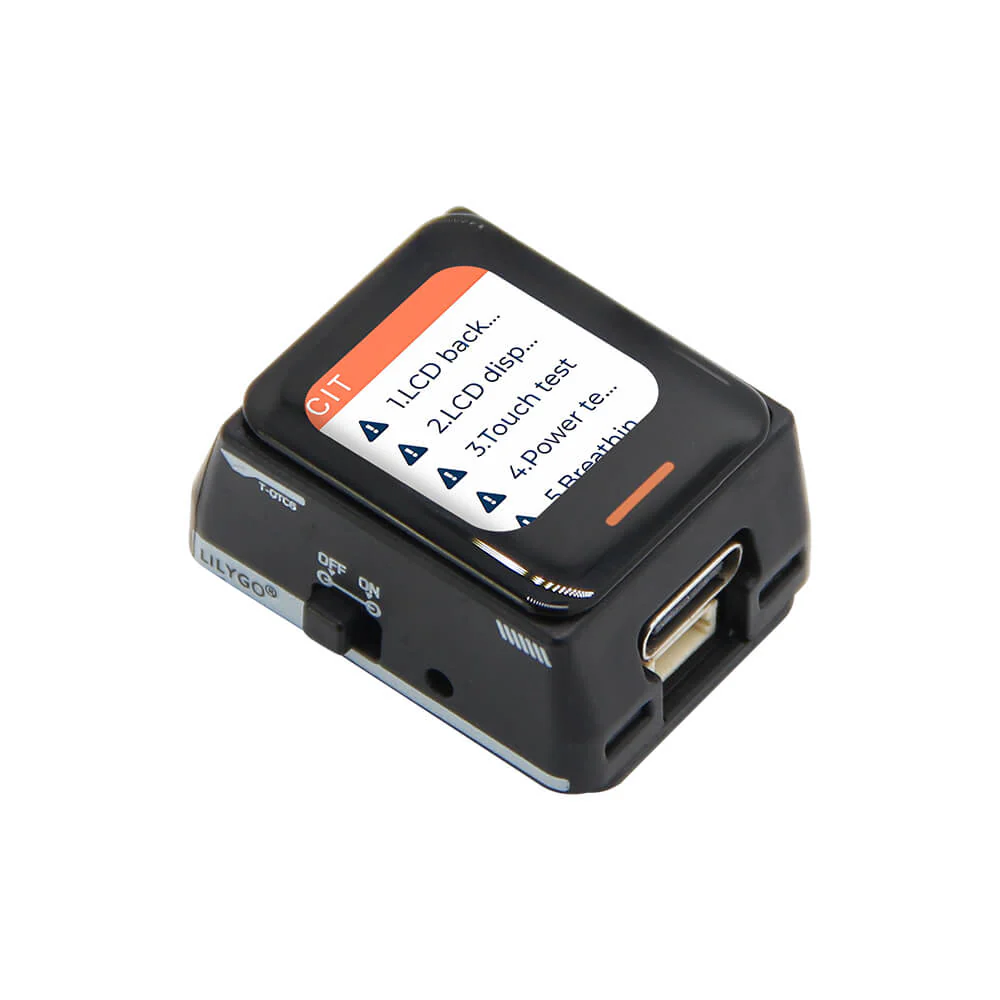

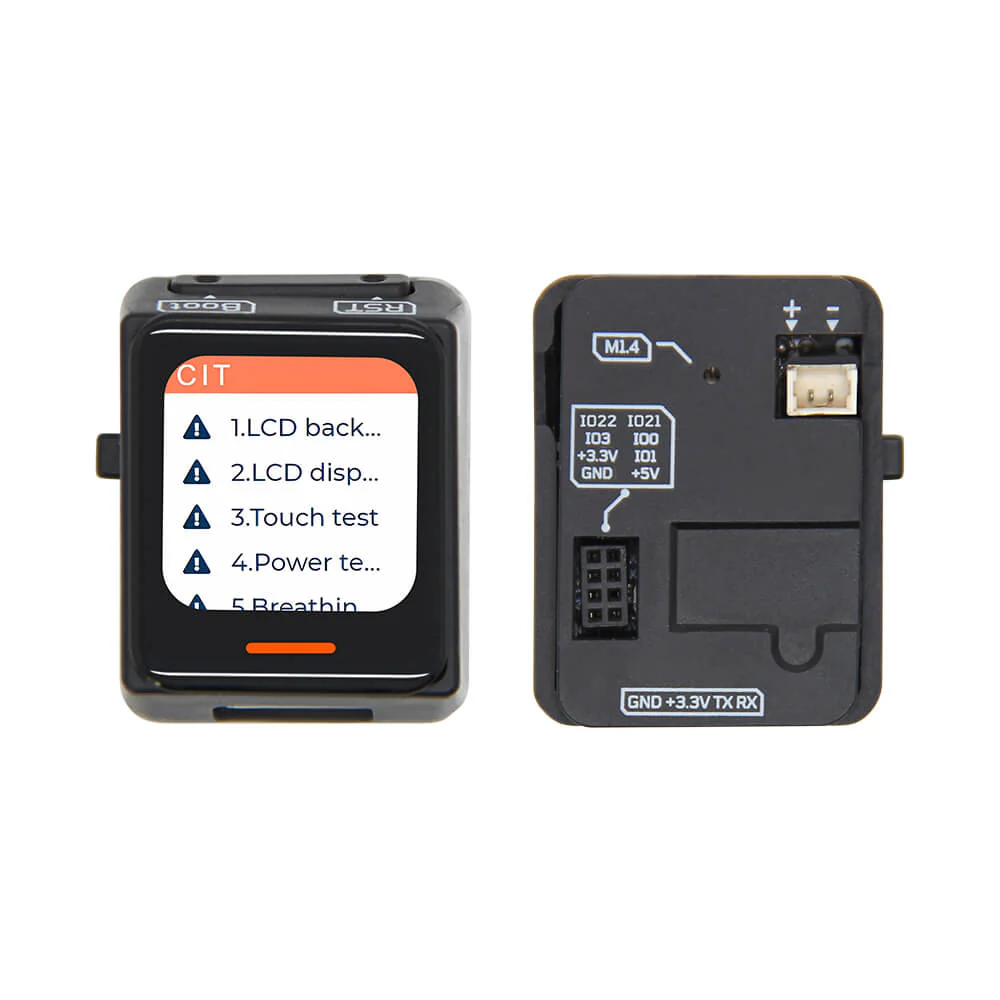

T-QT C6
T-QT C6 is a mini development board based on the ESP32C6 chip, which is only the size of two thumbnails.
It features a 128x128px TFT full-color touch screen, a separate charging indicator light, and an independent battery.
It can communicate with the power path management chip to modify the power bus status and limit values.
Specifications
| MCU | ESP32-C6- MINI-1U |
| Flash | 4MB |
| Wireless protocol | 2.4g Wi-Fi 6, Bluetooth 5 (LE), 802.15.4 |
| Onboard function | Battery ADC Detection, Breathing Light |
| 0.85 inch 128 X 128 Capacitive Touch TFT LCD |
| Driver Chip | SGM41562 |
| Communication Protocol | SPI |
| Power Management Chip |
| Driver Chip | ETA4662 |
| Communication Protocol | I2C |
T-QT C6
T-QT C6 With Ring
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.

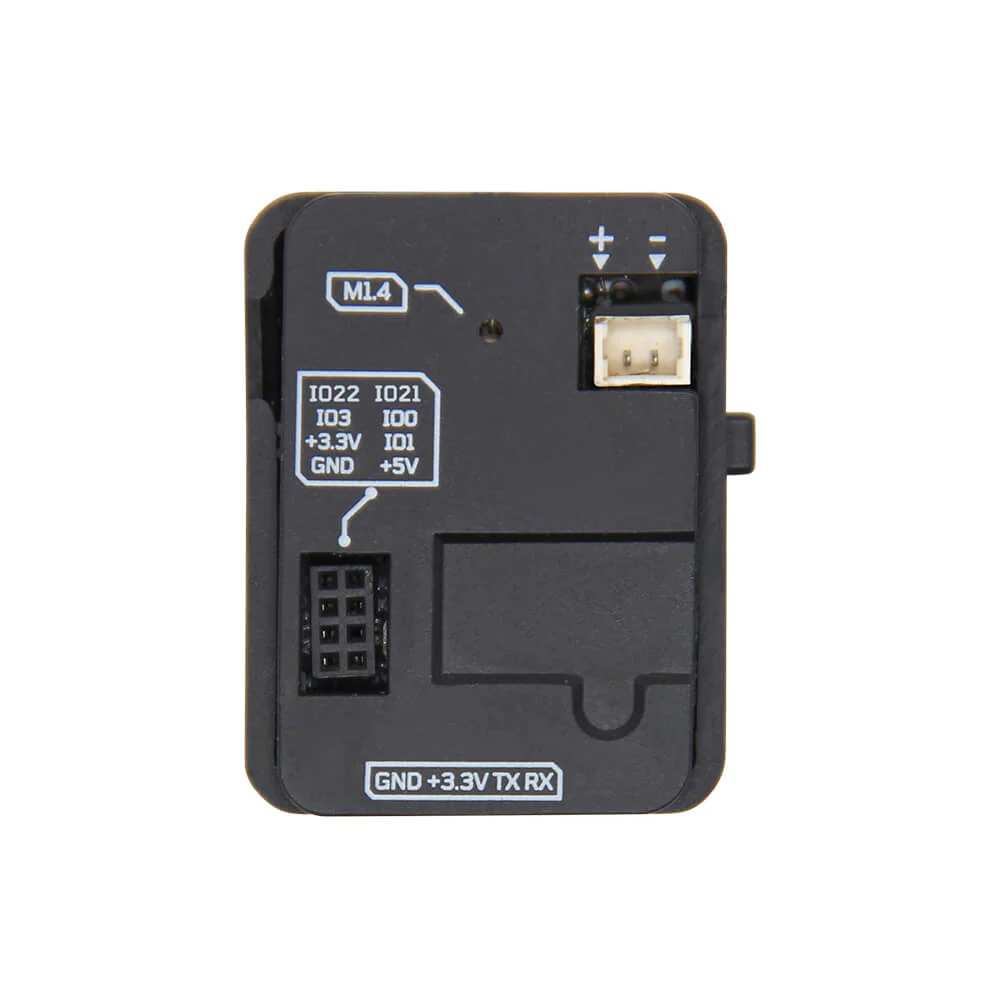

Pin Diagram
More
What's In The Box
T-QT C6
（Please note: The battery holder for the T-QT C6 shipped from the German warehouse is not pre-soldered.）
T-QT C6 With Ring
