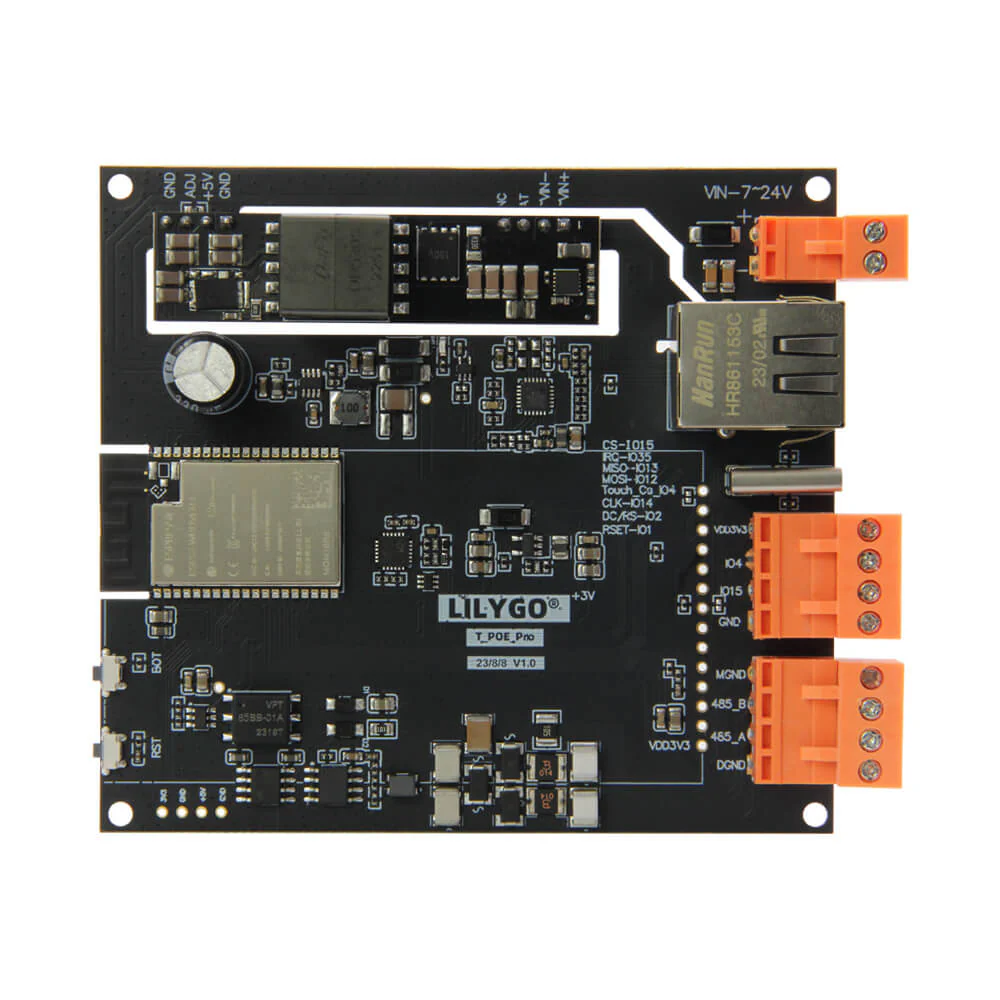

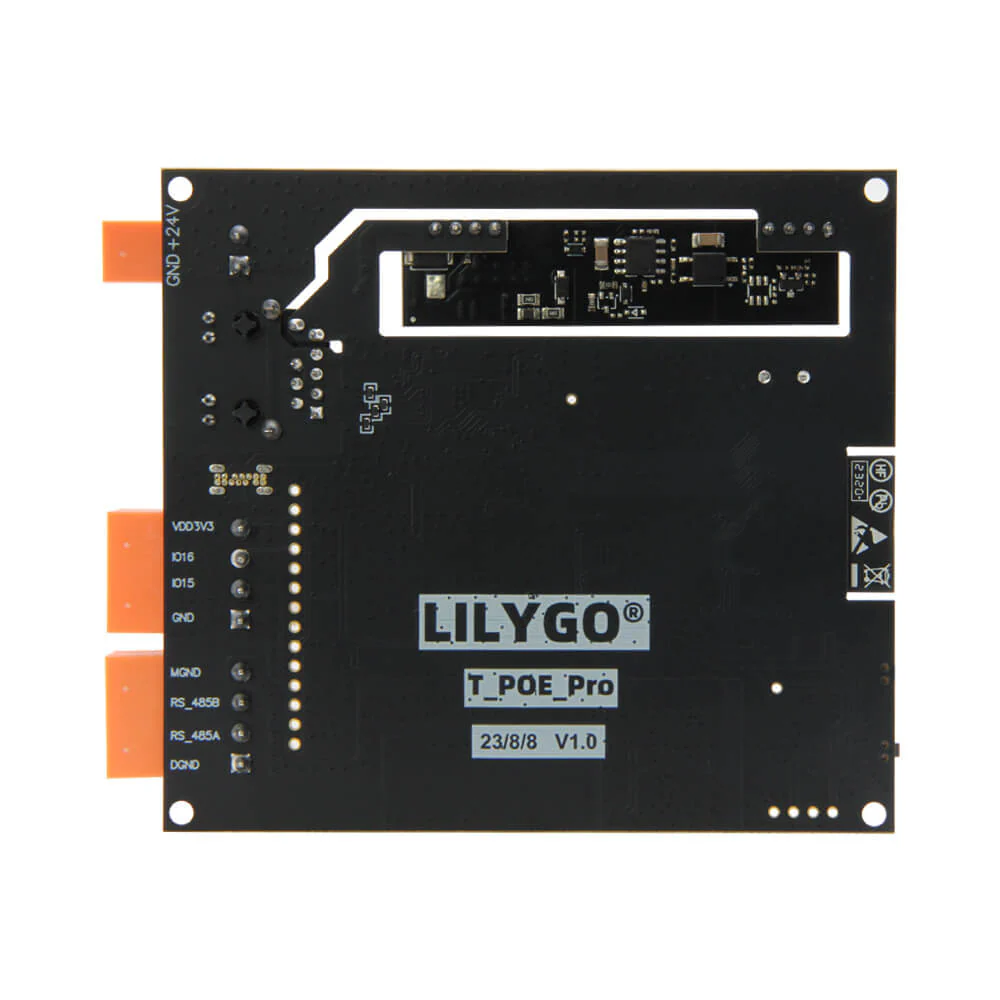

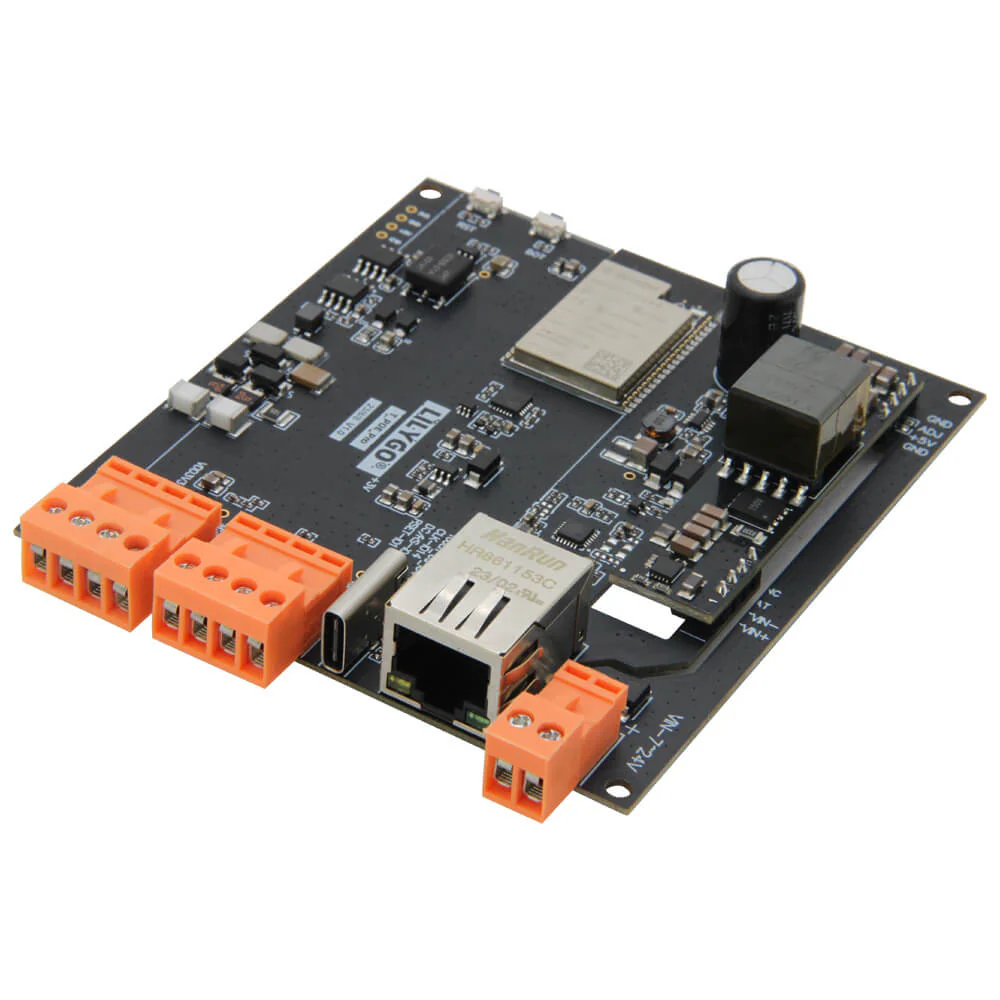

T-POE Pro
It is an upgraded version of T-Internet-POE.
Specifications
| MCU | ESP32-WROVER-E |
| Flash | 16MB |
| PSRAM | 8MB |
| Wireless Connectivity | Wi-Fi: 802.11 b/g/n/, BLE V4.2 |
| Buttons | Reset Button + Boot Button |
| Serial Chip | CH9102 |
| Onboard Function | Expandable LCD screen interface |
|
L AN8720 Ethernet Network Port Low-Power Ethernet Physical Layer Transceiver |
| PoE 5V@4A Power over Ethernet Module IEEE802.3 af/at, Input Voltage Range: 44~ 57V |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.

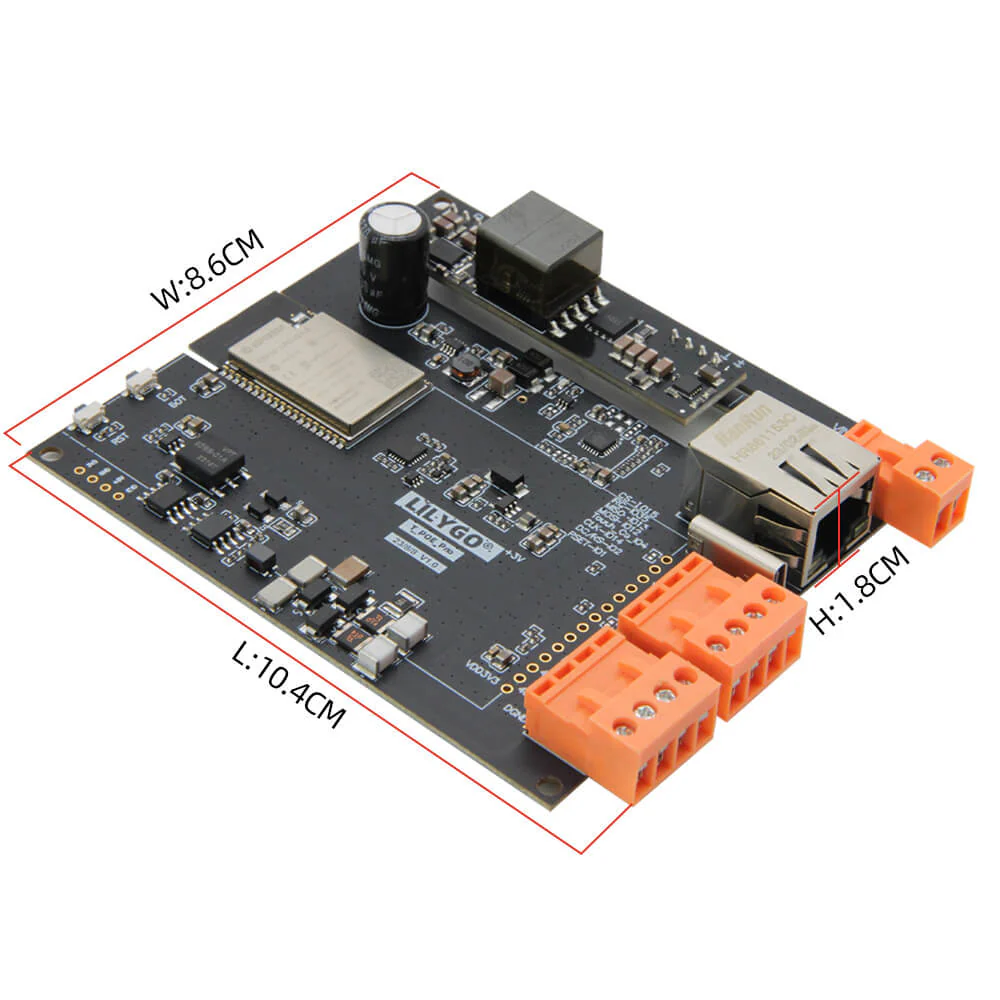

Size
Pin Digram
More Details
It is an upgraded version of T-Internet-POE.
Specifications
| MCU | ESP32-WROVER-E |
| Flash | 16MB |
| PSRAM | 8MB |
| Wireless Connectivity | Wi-Fi: 802.11 b/g/n/, BLE V4.2 |
| Buttons | Reset Button + Boot Button |
| Serial Chip | CH9102 |
| Onboard Function | Expandable LCD screen interface |
|
L AN8720 Ethernet Network Port Low-Power Ethernet Physical Layer Transceiver |
| PoE 5V@4A Power over Ethernet Module IEEE802.3 af/at, Input Voltage Range: 44~ 57V |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
Size
Pin Digram
More Details
$33.05
T-POE Pro—
$33.05
Description
It is an upgraded version of T-Internet-POE.
Specifications
| MCU | ESP32-WROVER-E |
| Flash | 16MB |
| PSRAM | 8MB |
| Wireless Connectivity | Wi-Fi: 802.11 b/g/n/, BLE V4.2 |
| Buttons | Reset Button + Boot Button |
| Serial Chip | CH9102 |
| Onboard Function | Expandable LCD screen interface |
|
L AN8720 Ethernet Network Port Low-Power Ethernet Physical Layer Transceiver |
| PoE 5V@4A Power over Ethernet Module IEEE802.3 af/at, Input Voltage Range: 44~ 57V |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
Size
Pin Digram
More Details
