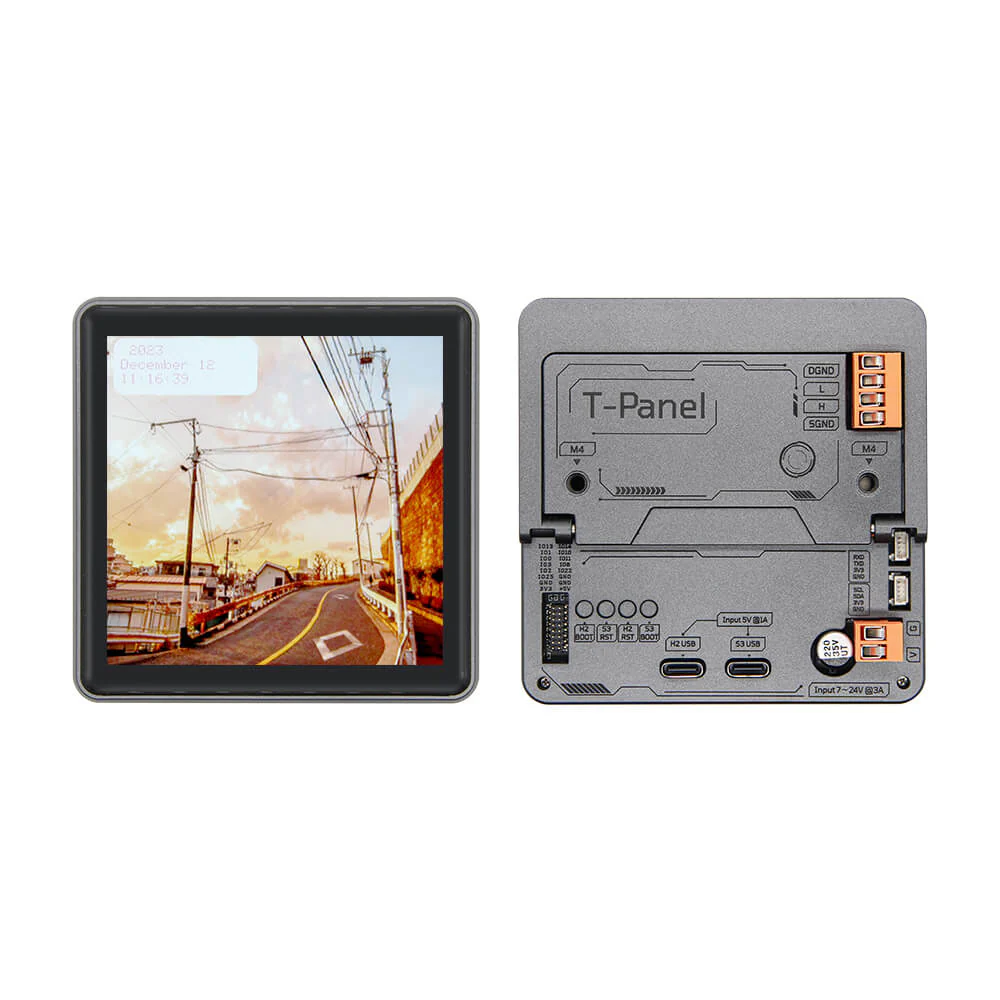

Product image 1
1 / 8
+3

T-Panel S3

Specifications

MCU1 ESP32-S3
Flash 16MB
PSRAM 8MB
Wireless Connectivity 2.4 GHz Wi-Fi + Bluetooth 5 (LE)
MCU2 ESP32-H2
Flash 4MB
Wireless Connectivity IEEE 802.15.4 + Bluetooth 5 (LE)
Development  Arduino, PlatformIO-IDE, Micropython
 4.00" 480*480 IPS ST7701S LCD:
Visible pixels 480(W) 480(H)
Interface SPI+RGB
Compatibility library Arduino_ GFX, LVGL
Onboard functions

QWiiCx2 + TF Card + Antenna

ESP32 4 X Button= S3(Boot + RST) + H2(Boot + RST)
 RS485 / CAN FD Transceiver Module(Optional)
Using bus communication protocol UART
 XL9535 Input/Output (GPIO) Expansion Chip
16-bit I2C-bus and SMBus I/O port Expander


Tech Support

ℹ️Product information

A: T-Panel S3

B: T-Panel-Lite

Check out our GitHub repository for sample code and more detailed information about this board.

 🧑‍💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.

RS485 500kbp

 Pin Diagram

More Details
