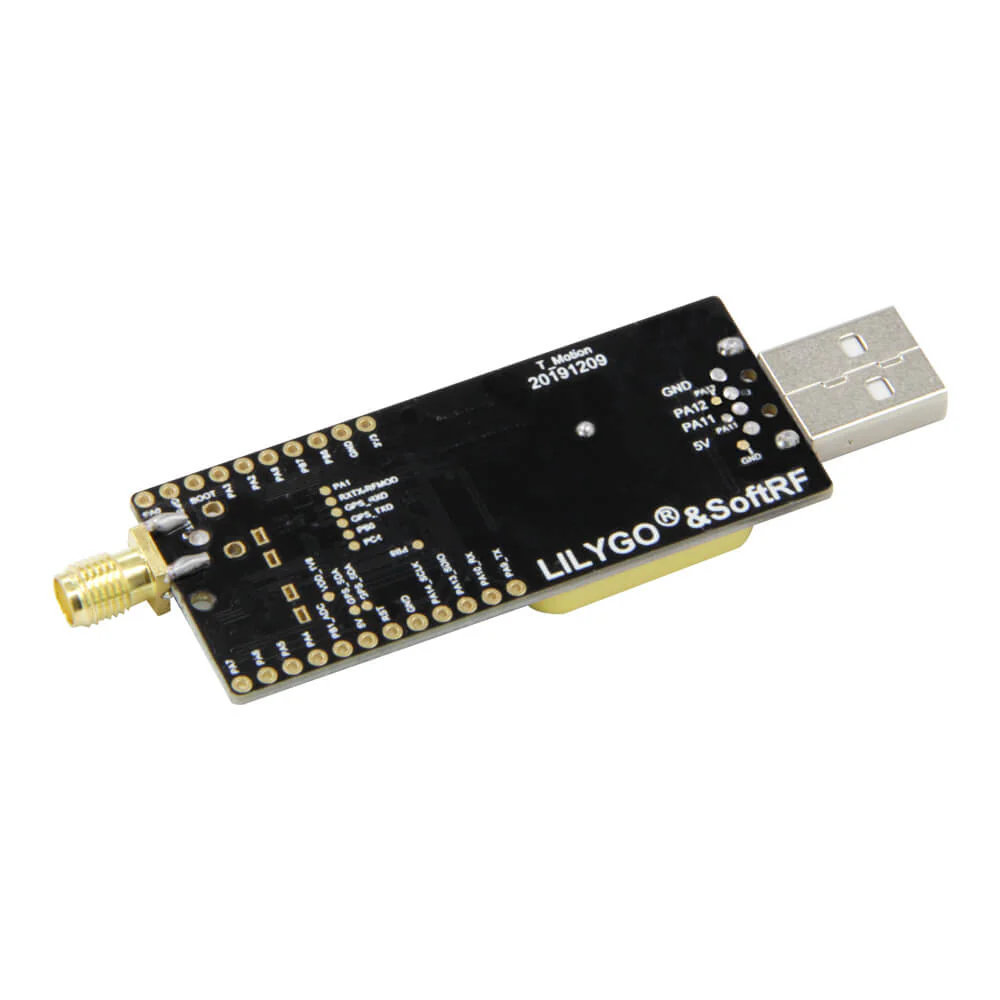

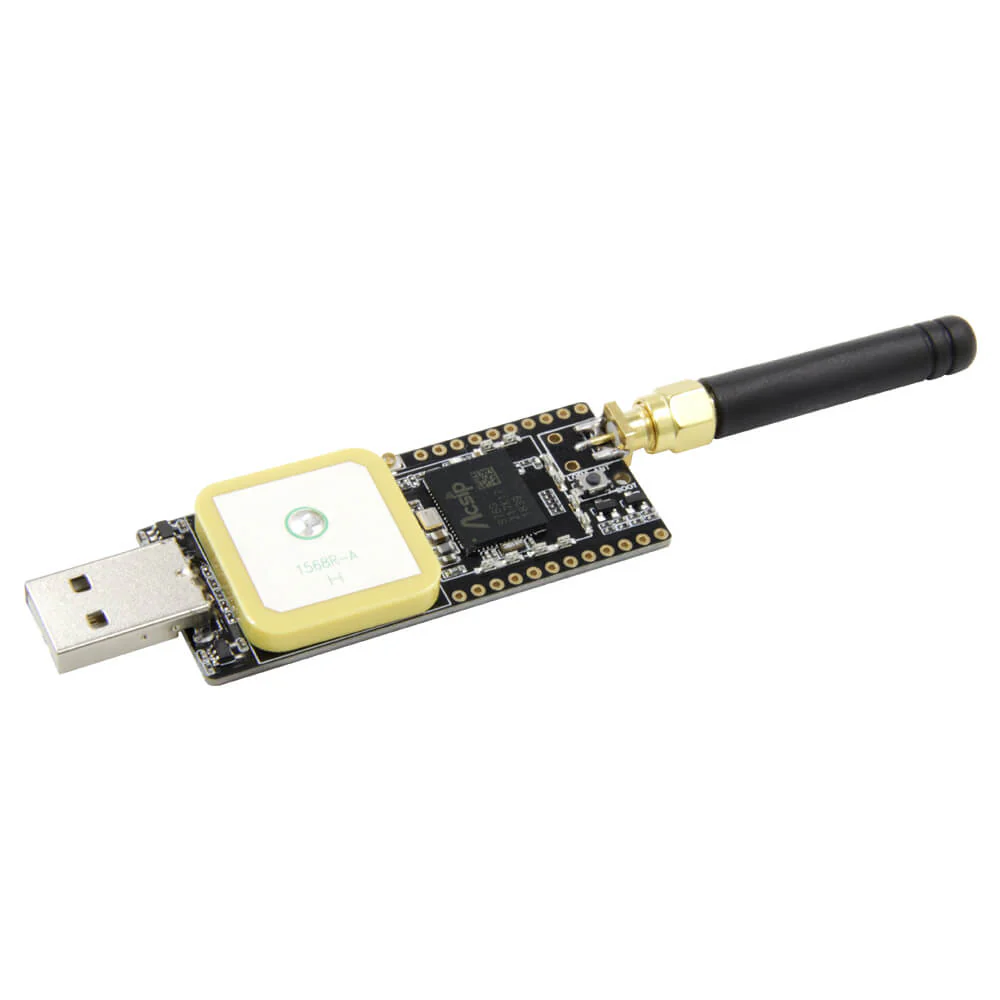

Main chip	S76G = STM32L073Z + LoRa + GNSS Module
Butto	BOOT
Car clock	26MHz active crystal
Antenna Model	GPS & LoRa Antenna
Operating temperature range	-45~80 ℃
Size	78.12*25.40*62.67mm
Weight	30g
Power Specifications
Working voltage	5v input
Working current	About 18mA
USB	USB male



Github

S7xG Flashing Instructions

SoftRF T-Motion Firmware

SoftRF Configuration Tool

T- Motion More information

T-Motion 868Mhz (Notice:SoftRF writer firmware is installed by default)



• 1 X T-Motion1 X LoRa 868MHz Antenna

• 2 X Pin

T-Motion 915/923Mhz (Notice:SoftRF writer firmware is installed by default)



• 1 X T-Motion

• 1 X LoRa 915/923MHz Antenna

• 2 X Pin

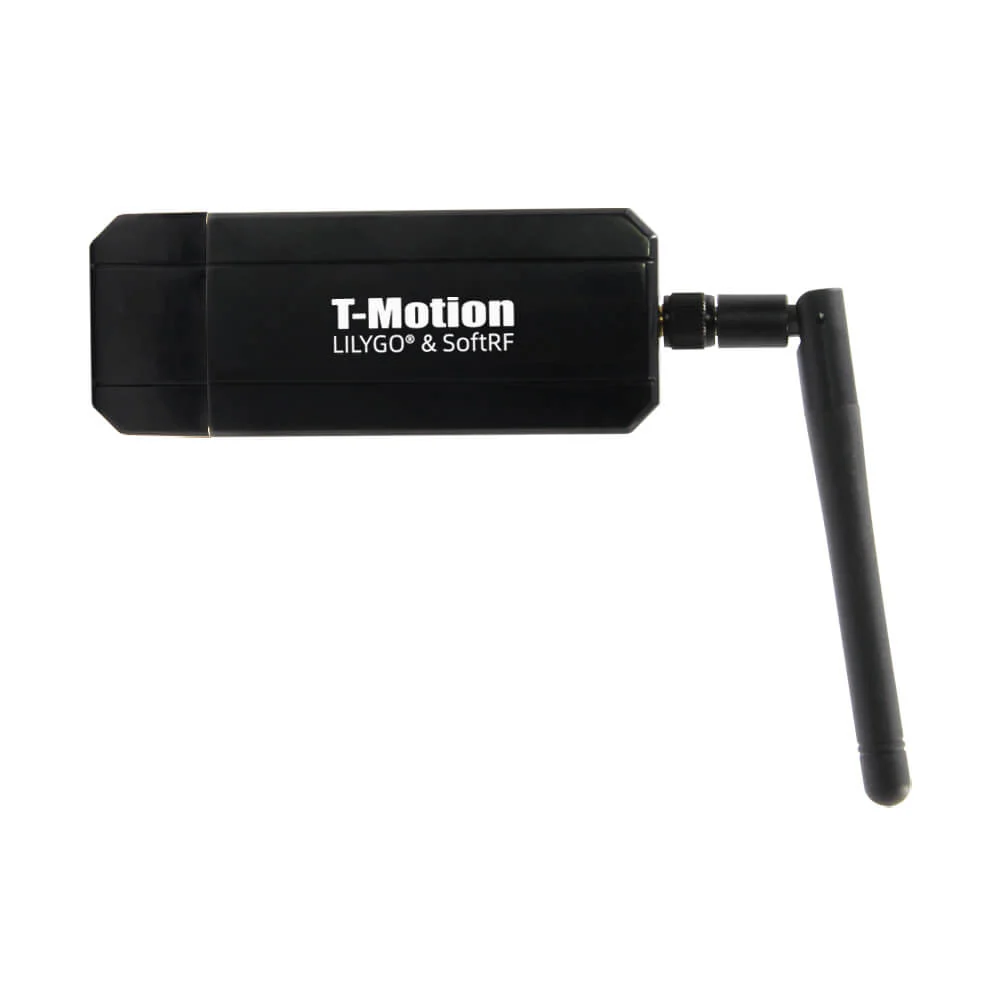

T-Motion 868MHz or 915Mhz With Shell

(Notice:SoftRF writer firmware is installed by default)

• 1 X T-Motion

• 1 XLoRa 868MHz or 915MHz Antenna

(Product is not assembled by default)
