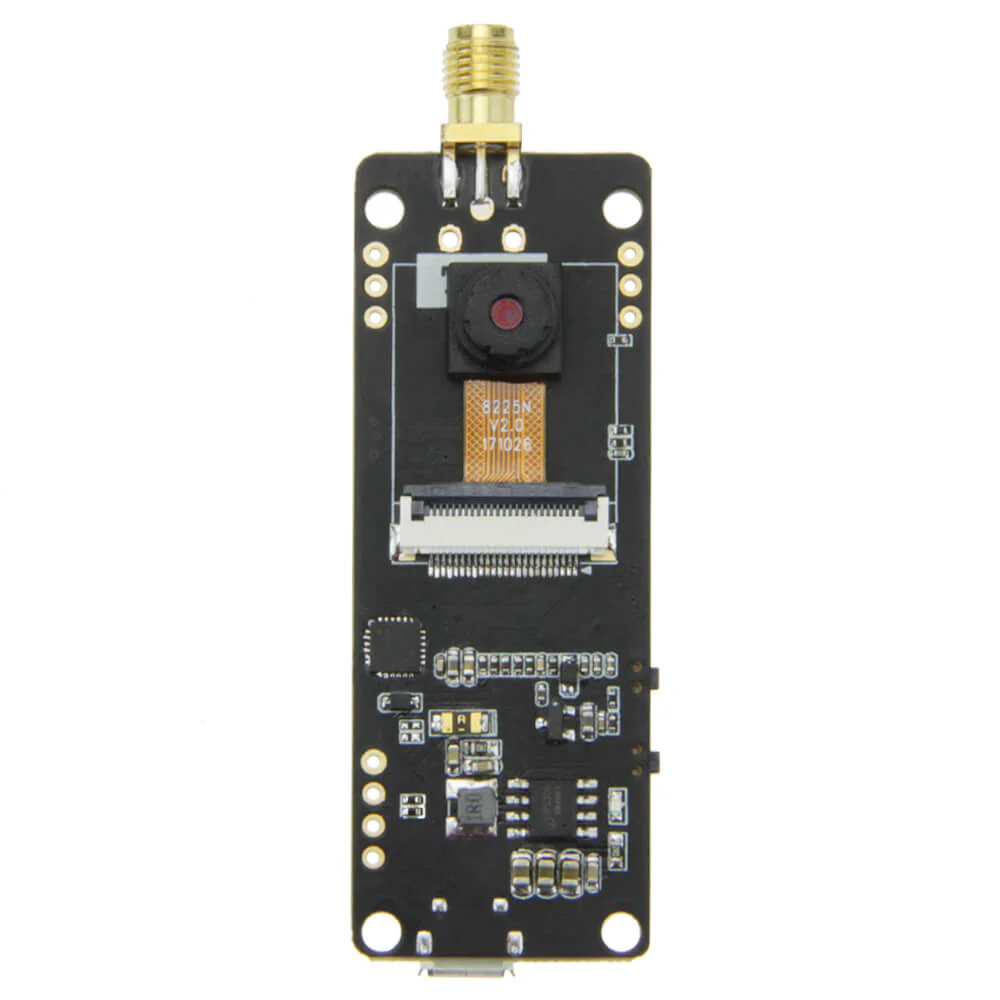

T-Journal
Chipset ESPRESSIF-ESP32-PCIO-D4 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
- FLASH QSPI flash/SRAM, up to 4 x 16 MB
- SRAM 520 kB SRAM
- KEY reset，IO32
- Dispaly 0.91 SSD1306
- Power indicator lamp red
- Camera OV2640 2Megapixel
- Steering engine analog servo
- On-board clock 40MHz crystal oscillator
Specifications
| Working voltage | 2.3V-3.6V |
| Working current | about 160mA |
| Working temperature range | -40℃ ~ +85℃ |
| Power Supply | USB 5V/1A |
| Charging current | 1A |
| Battery | 3.7V lithium battery |
| Battery connector | Jst 2pin 1.25mm |
Technology Support [Github]
If you need technical support please check the link to find more details.
Size

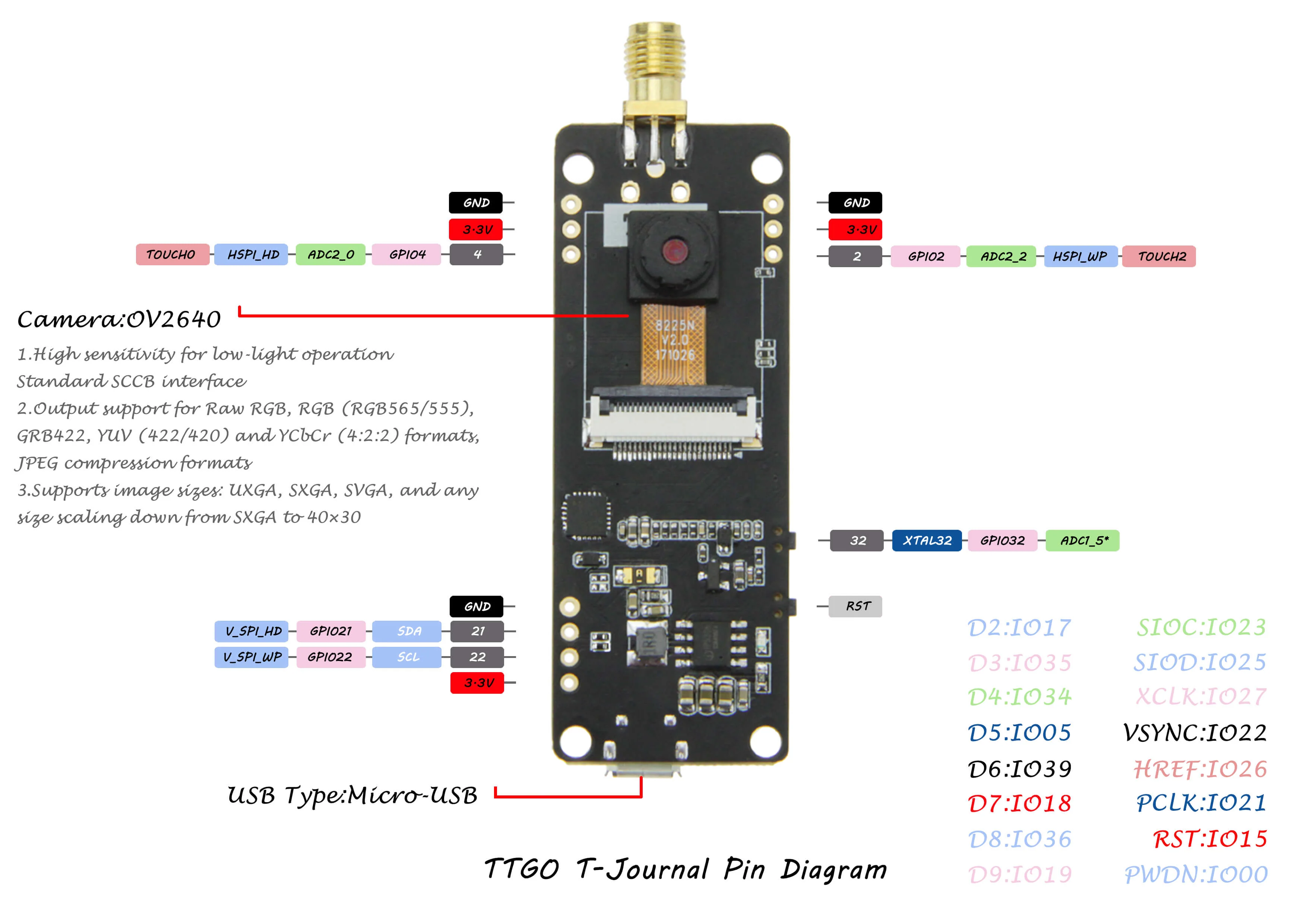

Pin Diagram
Details

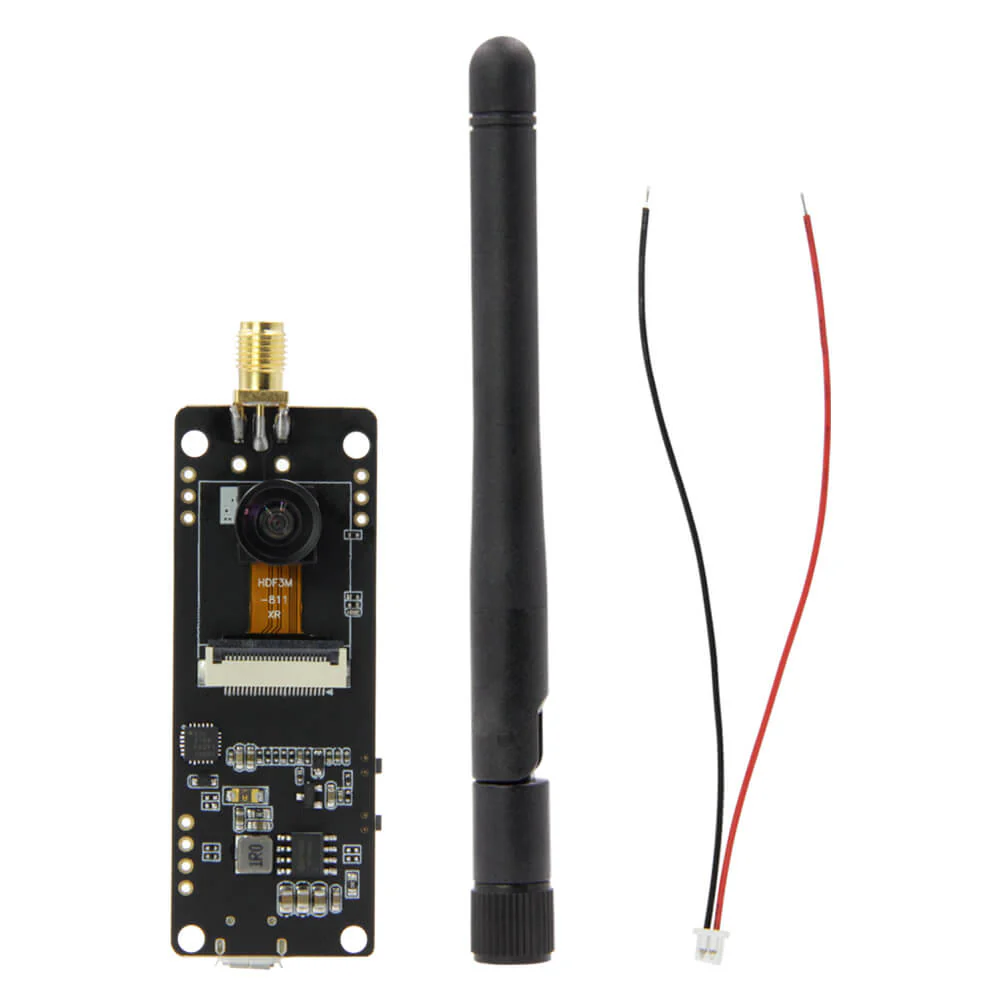

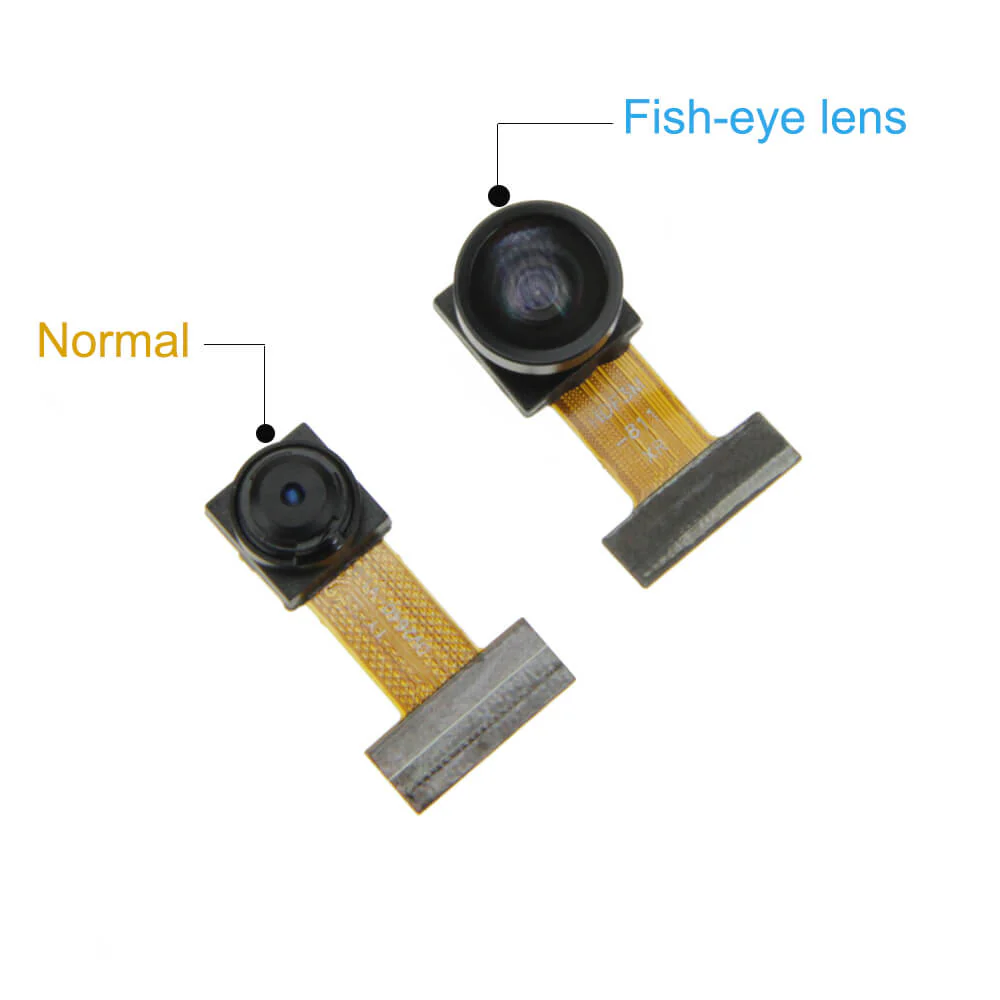

1 X T-Journal (Normal Lens Or Fish-eye Lens)
1 X Wi-Fi Antenna
1 X Power Cable
Chipset ESPRESSIF-ESP32-PCIO-D4 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
- FLASH QSPI flash/SRAM, up to 4 x 16 MB
- SRAM 520 kB SRAM
- KEY reset，IO32
- Dispaly 0.91 SSD1306
- Power indicator lamp red
- Camera OV2640 2Megapixel
- Steering engine analog servo
- On-board clock 40MHz crystal oscillator
Specifications
| Working voltage | 2.3V-3.6V |
| Working current | about 160mA |
| Working temperature range | -40℃ ~ +85℃ |
| Power Supply | USB 5V/1A |
| Charging current | 1A |
| Battery | 3.7V lithium battery |
| Battery connector | Jst 2pin 1.25mm |
Technology Support [Github]
If you need technical support please check the link to find more details.
Size
Pin Diagram
Details
1 X T-Journal (Normal Lens Or Fish-eye Lens)
1 X Wi-Fi Antenna
1 X Power Cable
Select T-Journal CH9102
From $4.25
Original: $14.15
-70%T-Journal—
$14.15
$4.25Description
Chipset ESPRESSIF-ESP32-PCIO-D4 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
- FLASH QSPI flash/SRAM, up to 4 x 16 MB
- SRAM 520 kB SRAM
- KEY reset，IO32
- Dispaly 0.91 SSD1306
- Power indicator lamp red
- Camera OV2640 2Megapixel
- Steering engine analog servo
- On-board clock 40MHz crystal oscillator
Specifications
| Working voltage | 2.3V-3.6V |
| Working current | about 160mA |
| Working temperature range | -40℃ ~ +85℃ |
| Power Supply | USB 5V/1A |
| Charging current | 1A |
| Battery | 3.7V lithium battery |
| Battery connector | Jst 2pin 1.25mm |
Technology Support [Github]
If you need technical support please check the link to find more details.
Size
Pin Diagram
Details
1 X T-Journal (Normal Lens Or Fish-eye Lens)
1 X Wi-Fi Antenna
1 X Power Cable
