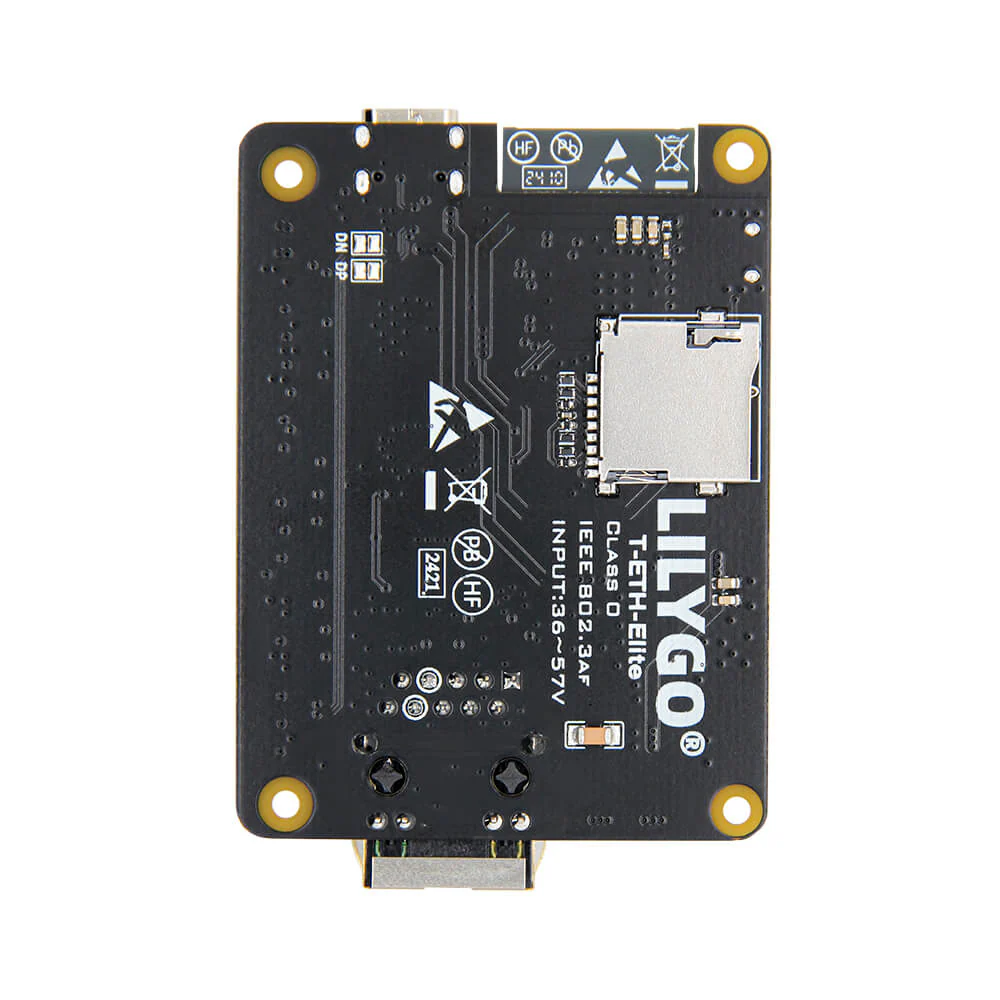

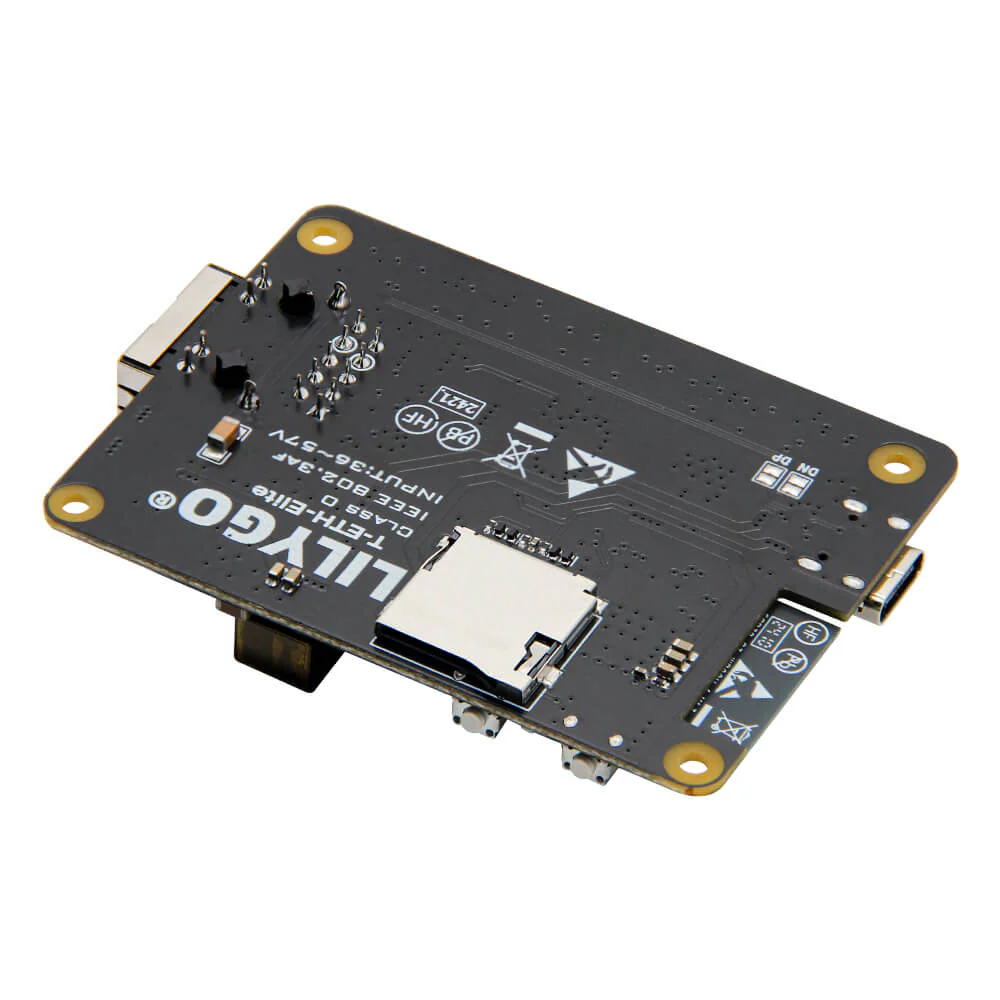

T-ETH ELite
It can be used as LoraWan gateway mode, and the Lora+GPS expansion board can be realized by stacking the Lora Mesh mode.
Specifications
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor |
| Wireless Connectivity | 2.4 GHz Wi-Fi & Bluetooth 5 (LE) |
| Development | Arduino, PlatformlO-IDE, ESP-IDF |
| Flash | 16MB |
| PSRAM | 8MB |
| Size | 50 X 67mm |
| USB Charging | 5V 500mA |
W5500 Ethernet Module
| Supports Protocols | TCP, UDP, ICMP, IPv4, ARP, PPPoE |
Sample Code For Reference [Github]
If you need technical support please check the link to find more details.
--See how it works😎-- |

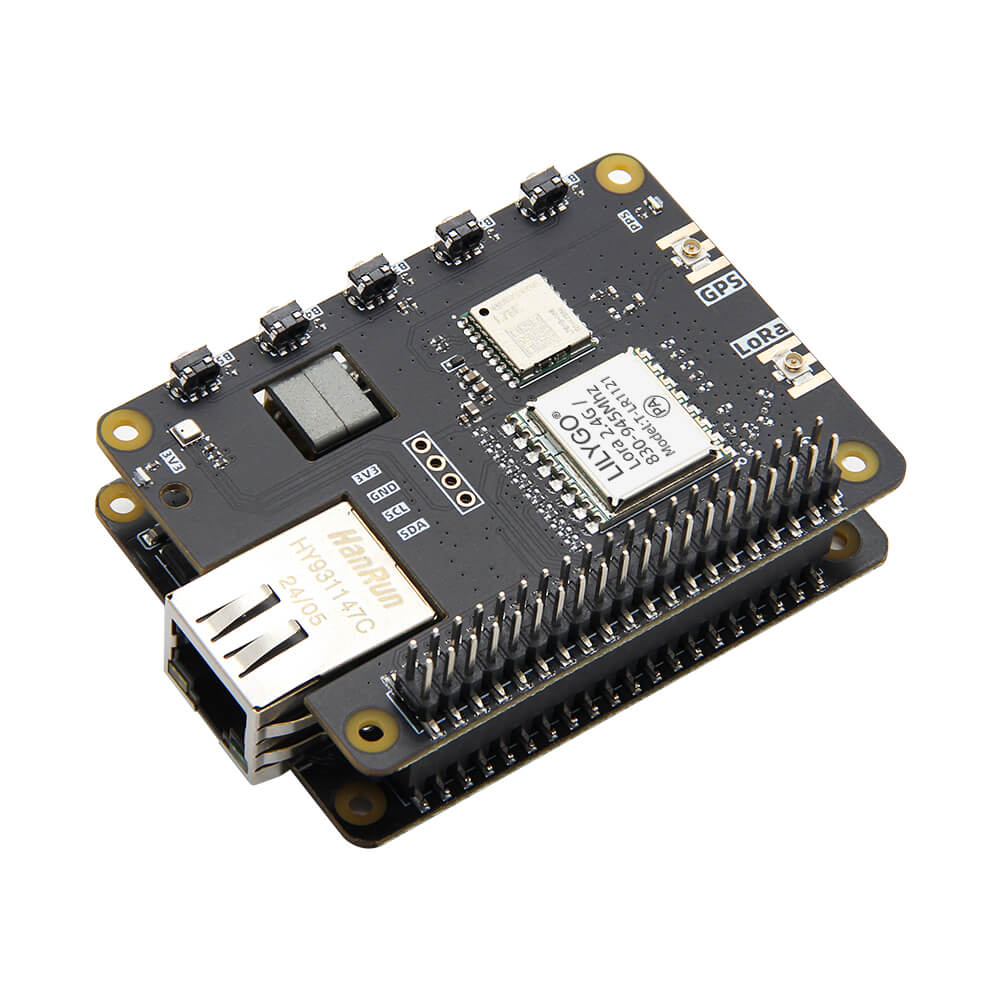

Combination For Reference
|
 |
|
 |
|
 |
T-SX1302 not included |
 |
Size
Pin Diagram
