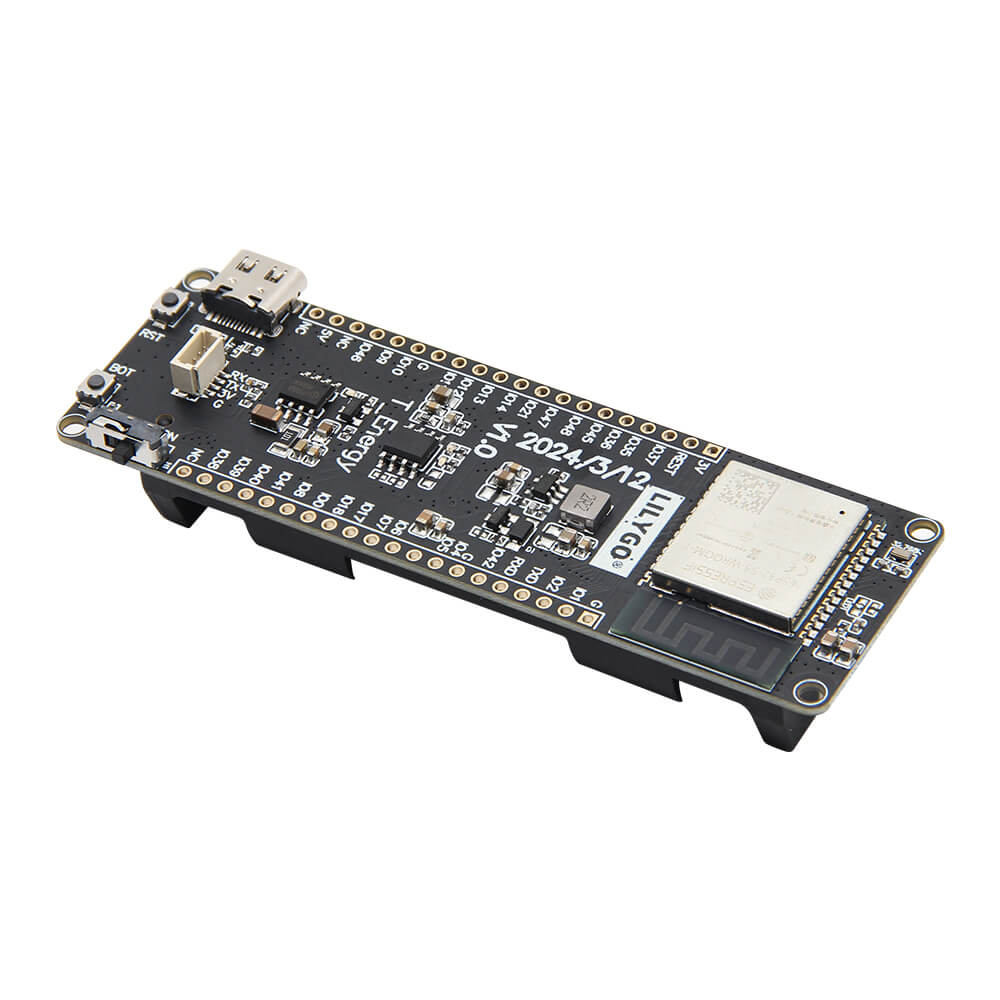

T-Energy S3

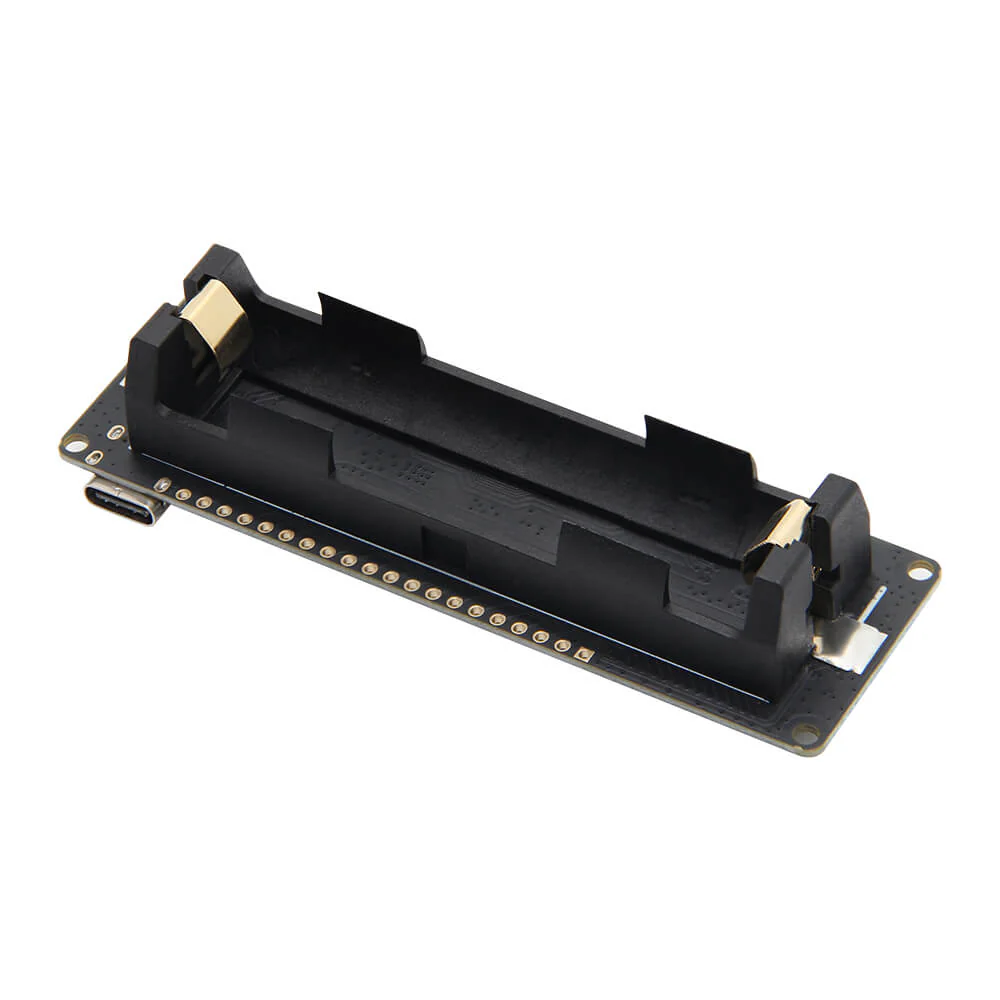

The T-Energy module was developed using the ESP32S3, equipped with an 18650 lithium battery.
Specifications
| MCU | ESP32-S3 |
| Flash | 16MB |
| PSRAM | 8MB |
| Wireless protocol | 2.4 GHz Wi-Fi and Bluetooth 5 (LE) |
| Support Language | C/C++, Micropython, Lua |
| Programming Platform | Arduino-IDE, VS Code, ESP-IDF |
| Onboard functions | Qwiic 4-Pin, BOOT + Reset, 18650 |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
Size

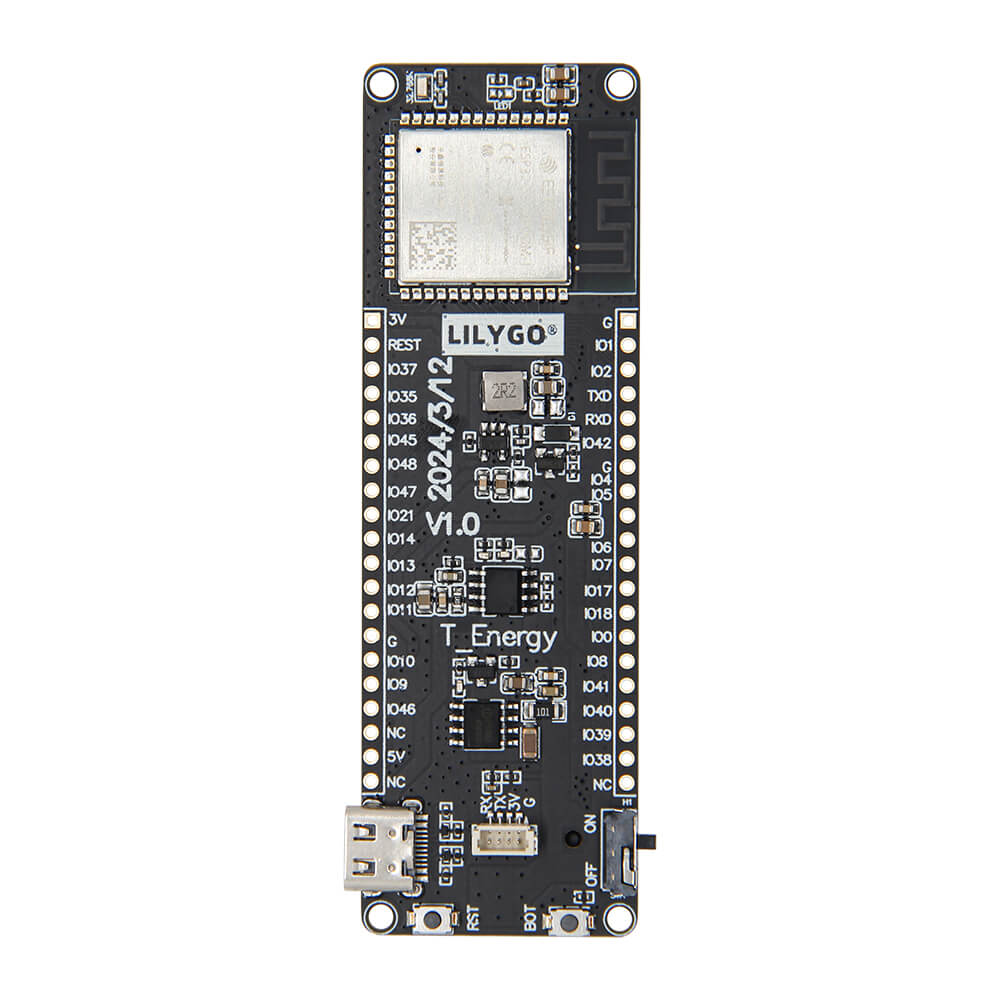

Pin Diagram
