T-Dongle C5

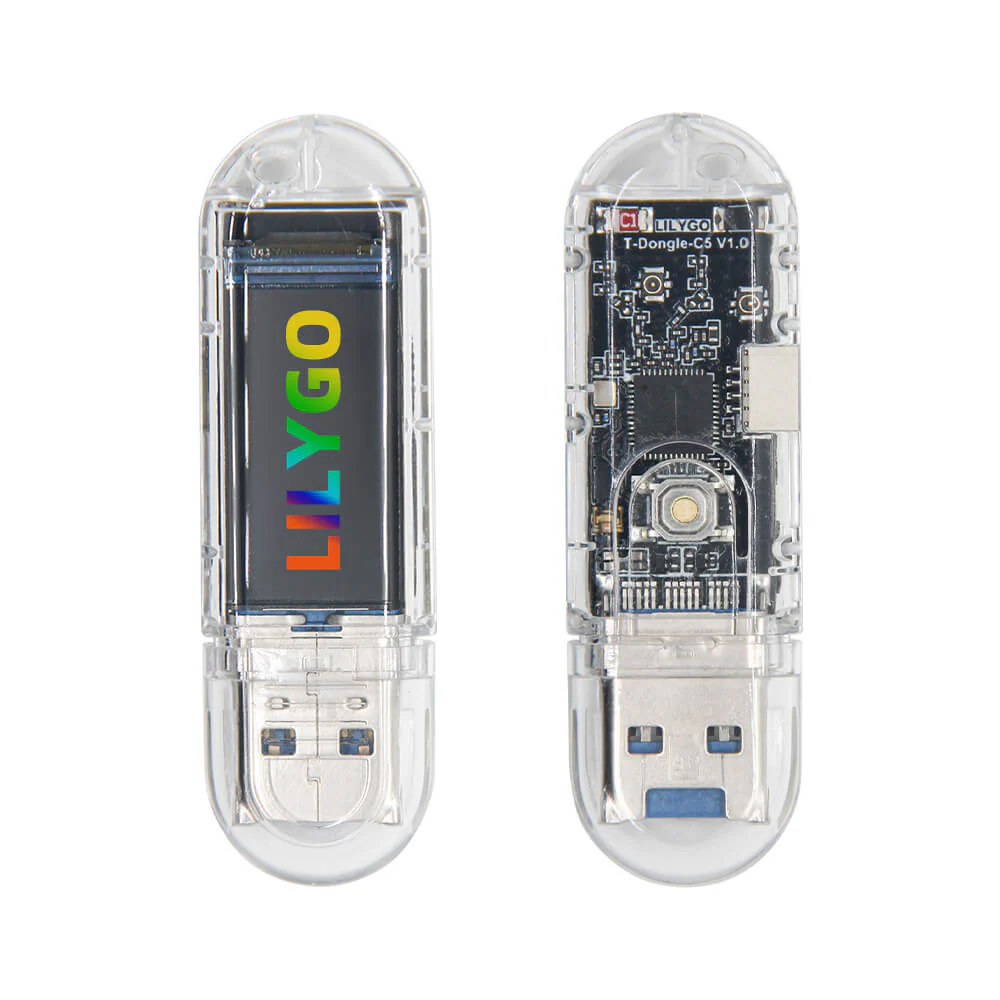

Product image 1
1 / 6
+1

T-Dongle C5

Specifications

Built-in Wi-Fi, Bluetooth highly sensitive ceramic antenna

MCU  ESP32-C5; 2.4 and 5 GHz dual-band Wi-Fi 6
Wireless Connectivity Wi-Fi 802.11  ax/b/g/n, bluetooth5
Platform Arduino-ide, ESP-IDF
Onboard functions 16MB Flash + 8MB PSRAM, TF card
 0.96 inch ST7735 IPS LCD
 Full color (65k) Display, 4-Wire SPI interface
Resolution  80 X 160, 0.96 diagonal
Model ST7735 LCD
Working Power Supply 3.3V


LILYGO GitHub Support



ℹ️Product Information
Check out our GitHub repository for sample code and more detailed information about this board.

💻Technical support
Visit our GitHub community, post a description of the problem and our engineers will help you directly.



What's In The Box

    Specifications

    Built-in Wi-Fi, Bluetooth highly sensitive ceramic antenna

    MCU  ESP32-C5; 2.4 and 5 GHz dual-band Wi-Fi 6
    Wireless Connectivity Wi-Fi 802.11  ax/b/g/n, bluetooth5
    Platform Arduino-ide, ESP-IDF
    Onboard functions 16MB Flash + 8MB PSRAM, TF card
     0.96 inch ST7735 IPS LCD
     Full color (65k) Display, 4-Wire SPI interface
    Resolution  80 X 160, 0.96 diagonal
    Model ST7735 LCD
    Working Power Supply 3.3V


    LILYGO GitHub Support



    ℹ️Product Information
    Check out our GitHub repository for sample code and more detailed information about this board.

    💻Technical support
    Visit our GitHub community, post a description of the problem and our engineers will help you directly.



    What's In The Box
