Specifications

MCU	ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity	Wi-Fi 802.11, BLE 5 + BT mesh
Programming Platform	Arduino-ide, VS Code
Flash	16MB
PSRAM	8MB
Bat voltage detection	IO02
Onboard functions	Boot + Reset Button, Battery Switch

3.4-inch Capacitive Touch TFT LCD (Support Touch Function):

Color depth	565, 666
Resolution	180(H)RGB x640(V)
Interface	QSPI

Sample Code For Reference [Github]

If you need technical support please check below link to find more details.

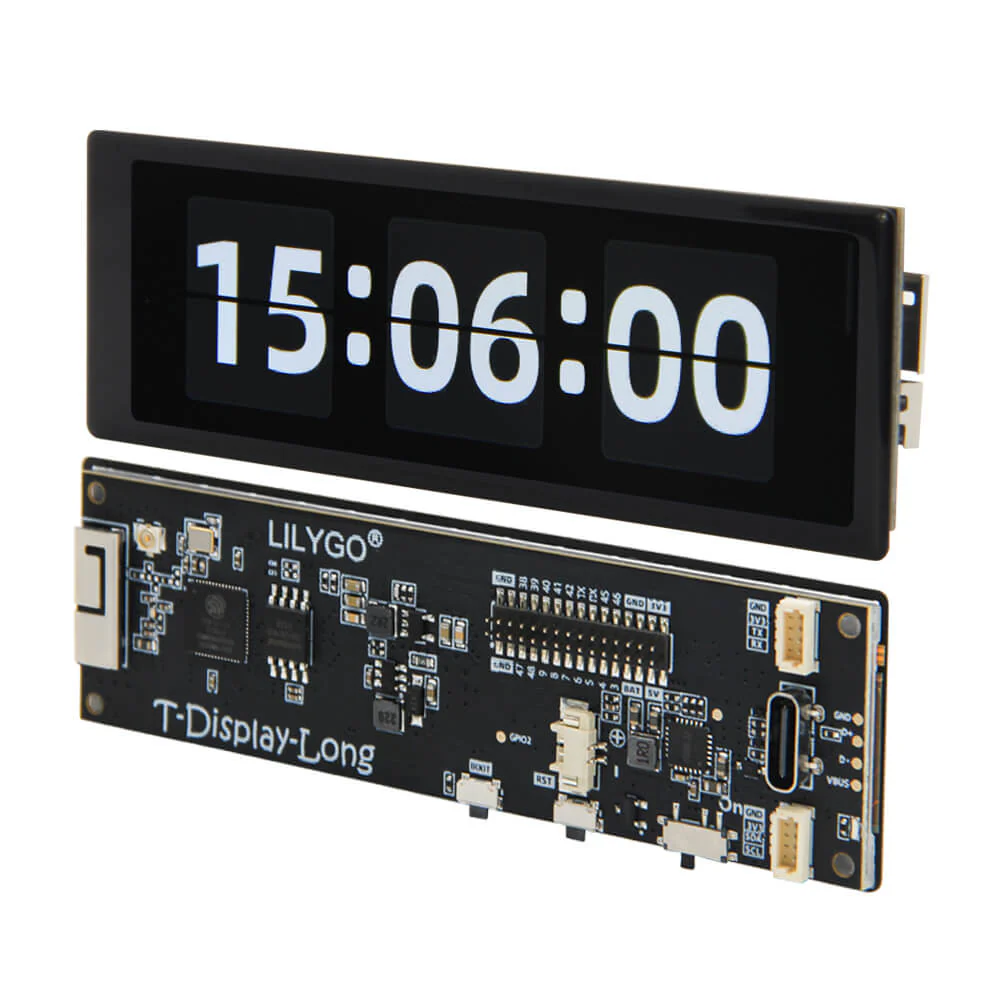

T-Display-S3 Long

Pin Diagram

More

What's In The Box

Basic Version

With Shell Version
