T-Display S3 AMOLED series in different size version

——————————————

Specifications [Common part]

MCU	ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity	2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development	Arduino, PlatformlO-IDE, ESP-IDF
Flash	16MB
PSRAM	8MB
Bat Voltage Detection	IO04

Specifications [Different part]

1.75-inch SH8601 AMOLED

Resolution	466 x 466 px
Bus Interface	QSPI
Driver IC	SH8601
Screen type	AMOLED
Compatibility library	Arduino_ GFX

-------------------------------

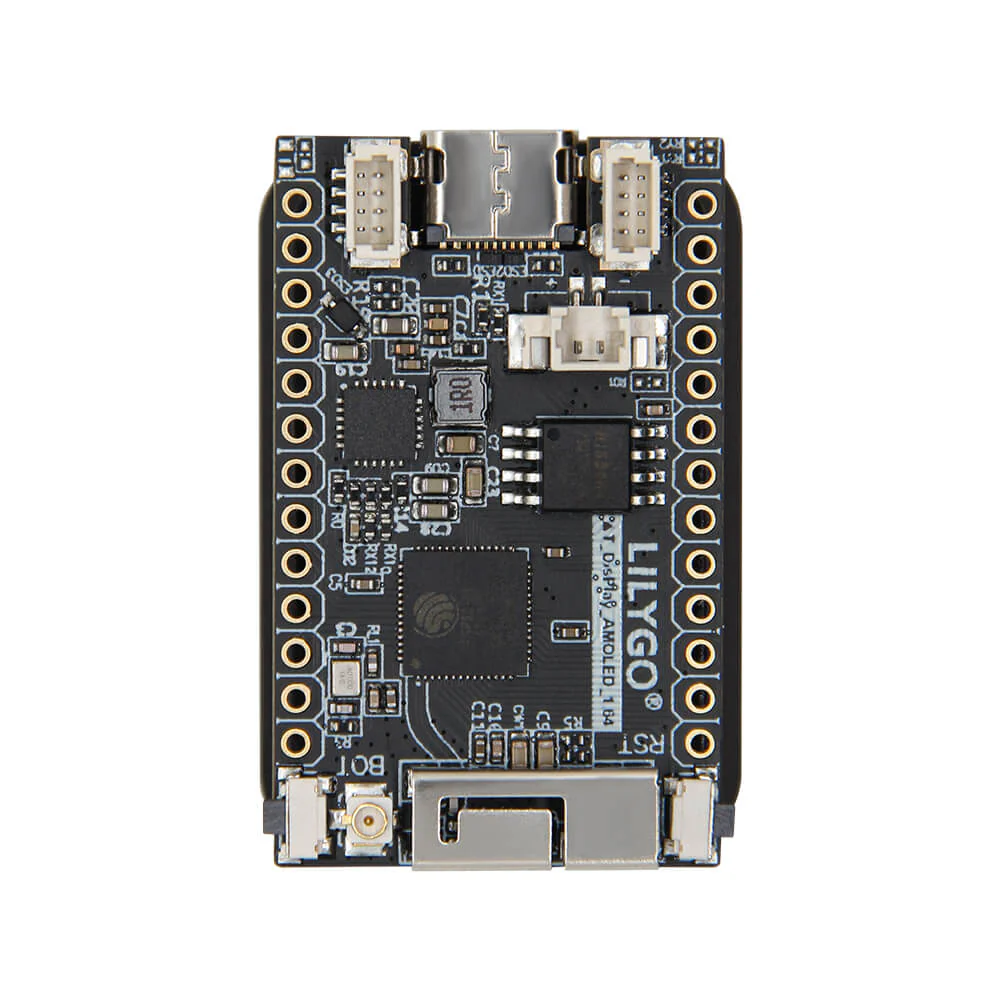

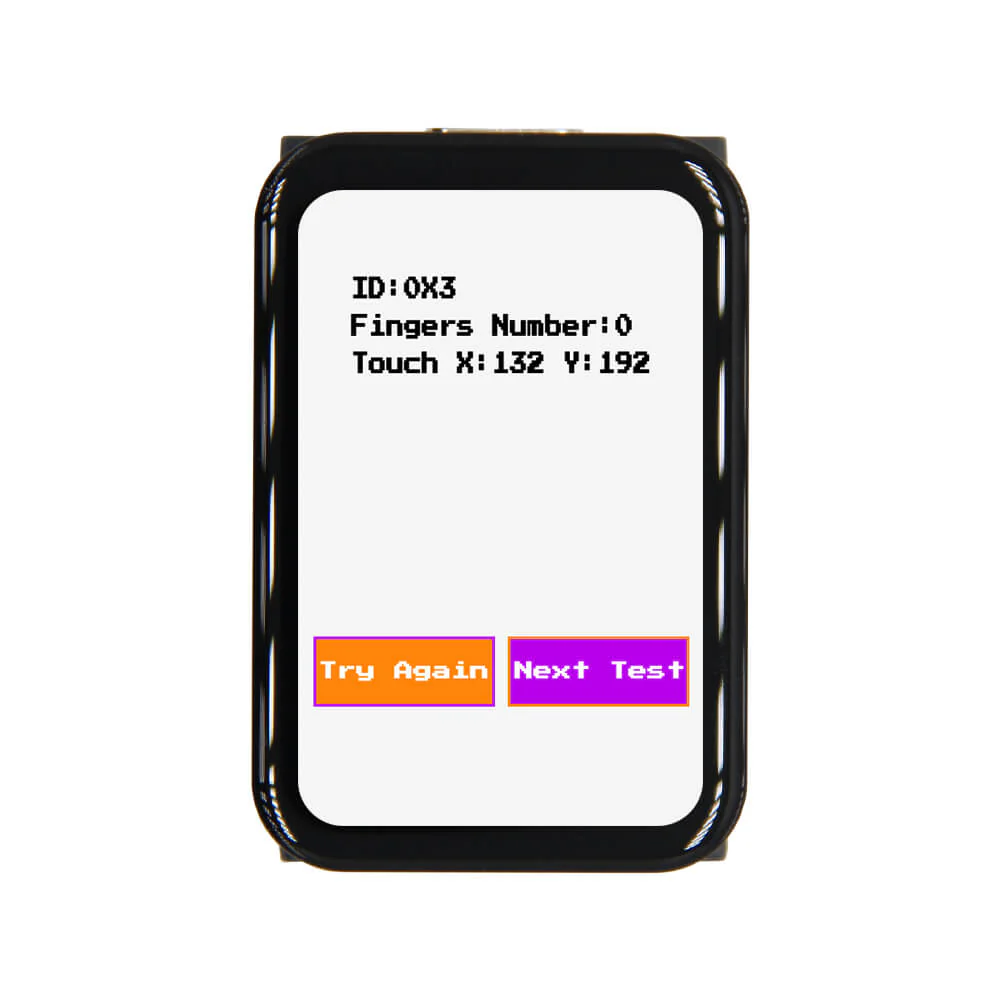

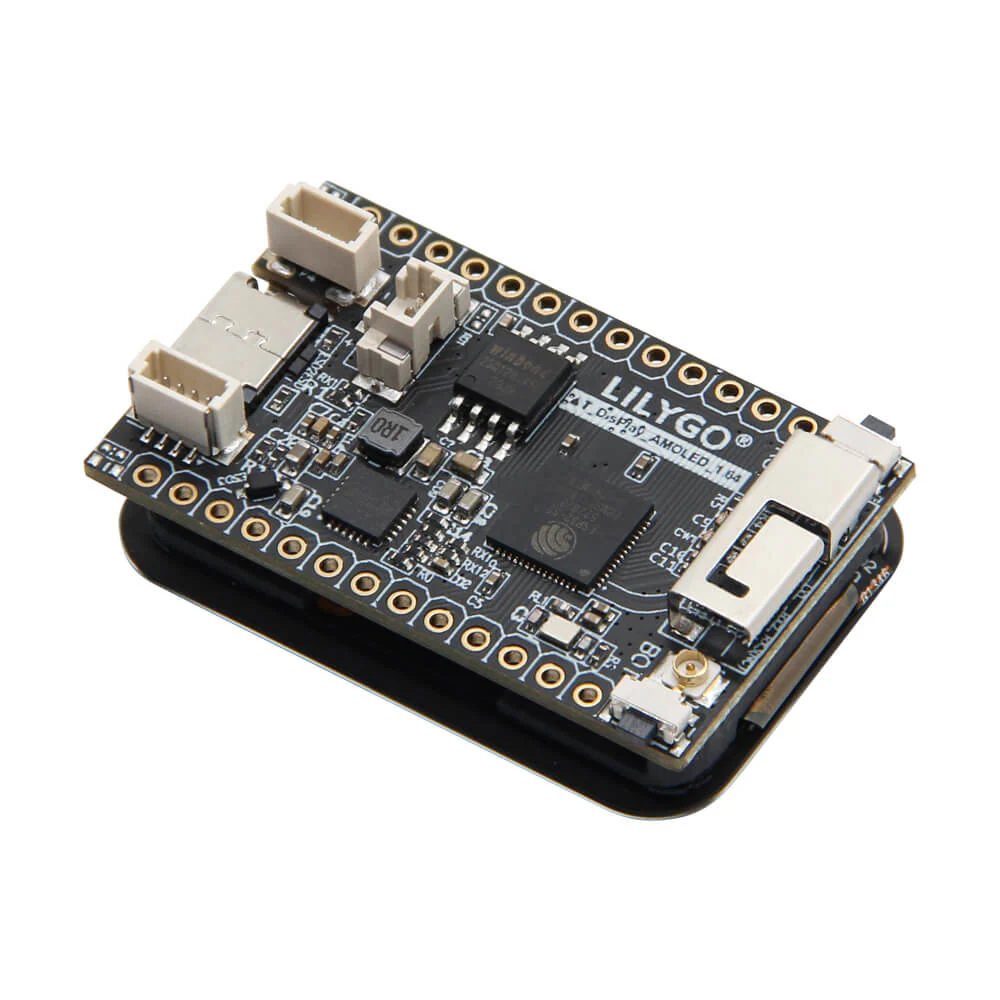

1.64-inch ICNA3311 AMOLED

Resolution	280 x 456 px
Bus Interface	QSPI
Driver IC	ICNA3311(C05300)
Screen type	AMOLED
Compatibility library	Arduino_ GFX

-------------------------------
1.43-inch SH8601 AMOLED

Resolution	466 x 466 px
Bus Interface	QSPI
Driver IC	SH8601
Screen type	AMOLED
Compatibility library	Arduino_ GFX

Tech Support

ℹ️Product information A. 1.64 Inch B.1.43 Inch & 1.75Ich  Check out our GitHub repository for sample code and more detailed information about this board.  🧑‍💻Technical support Visit our GitHub community, post a description of the problem and our engineers will help you directly.



Pin Diagram

Size For Reference

1.75 Inch

1.64 Inch

1.43 Inch

What's In The Box
