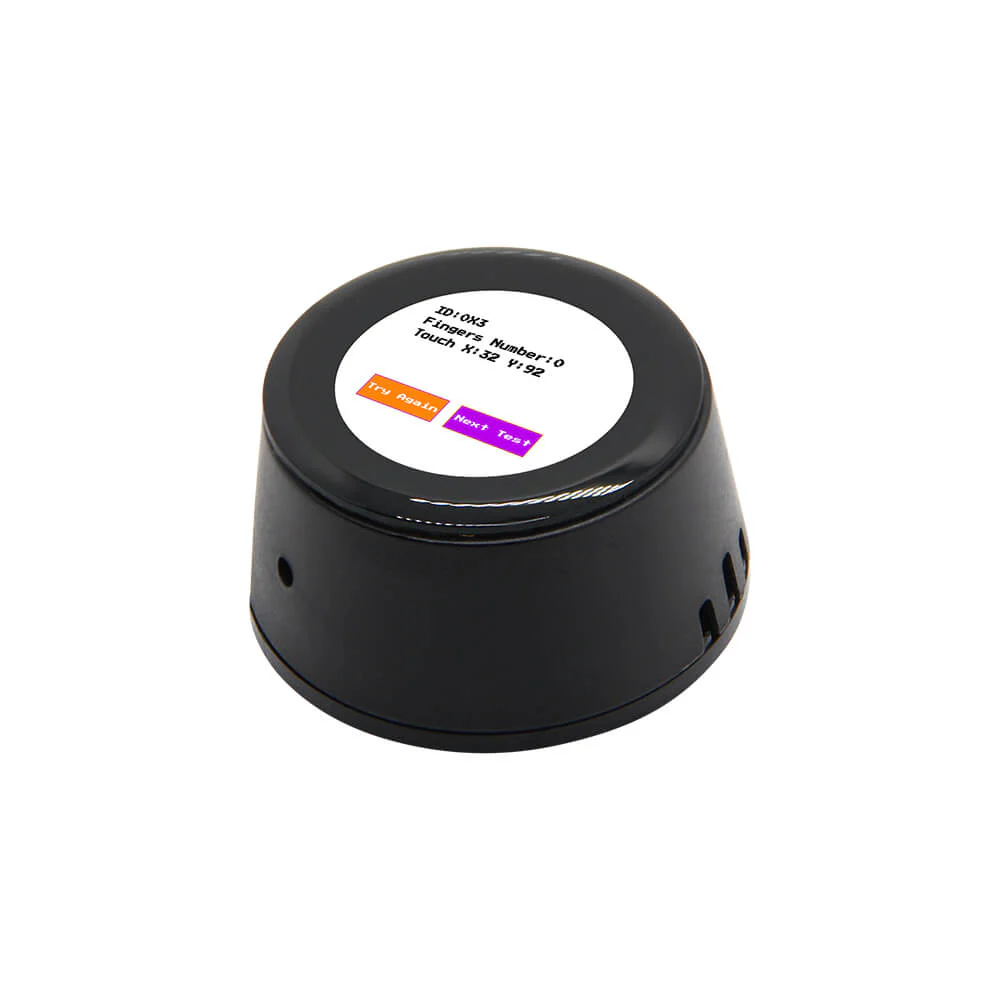

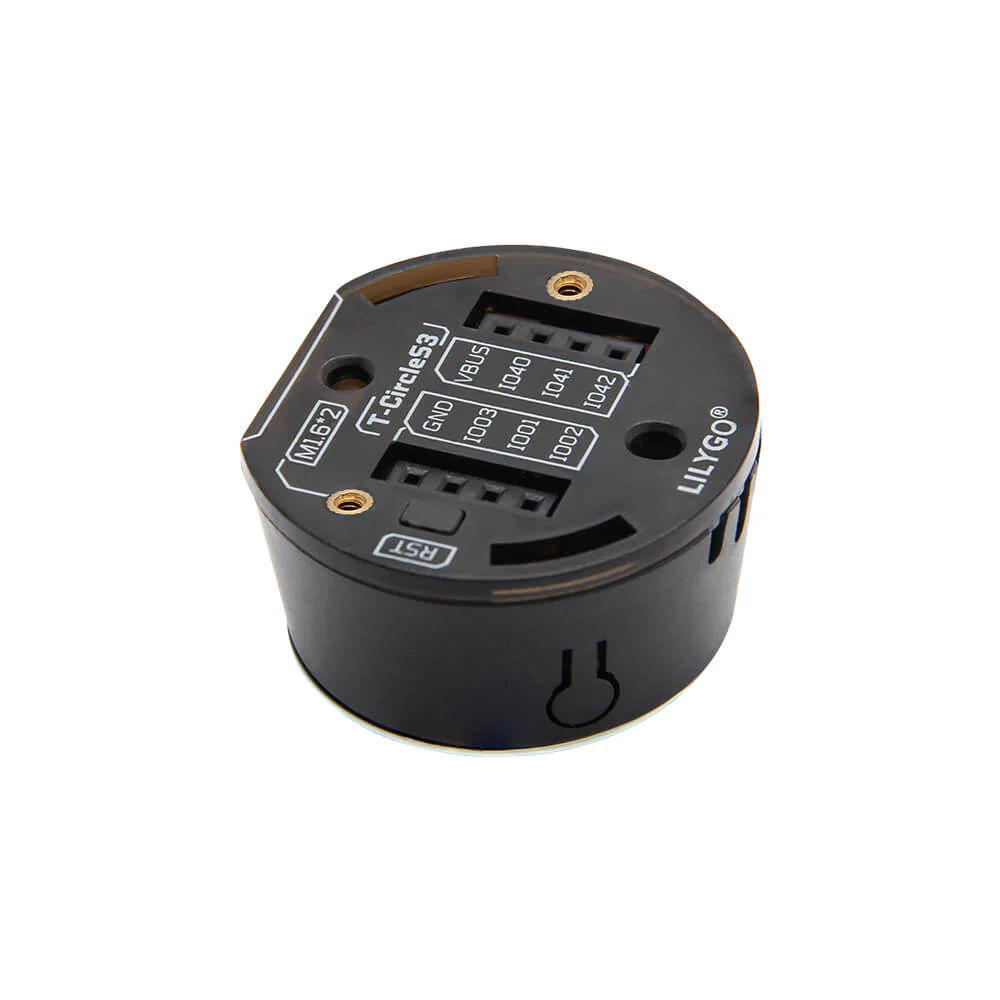

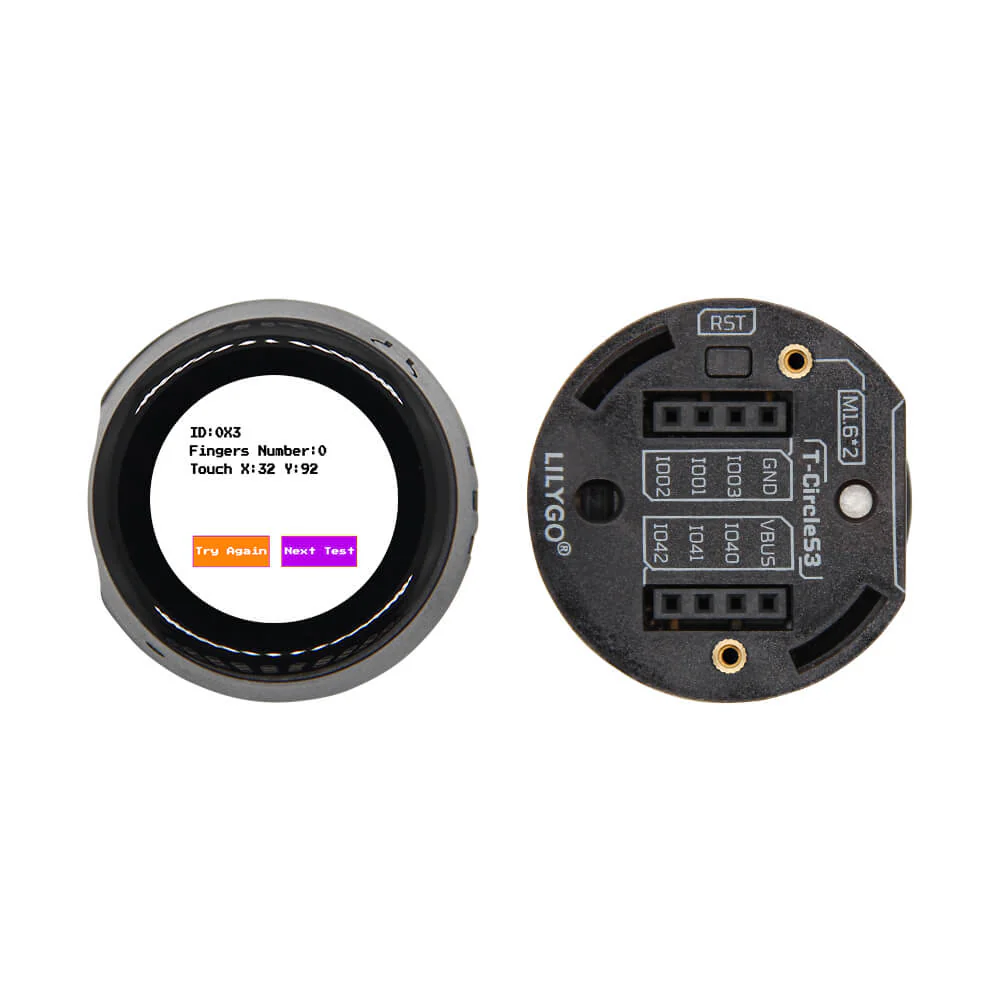

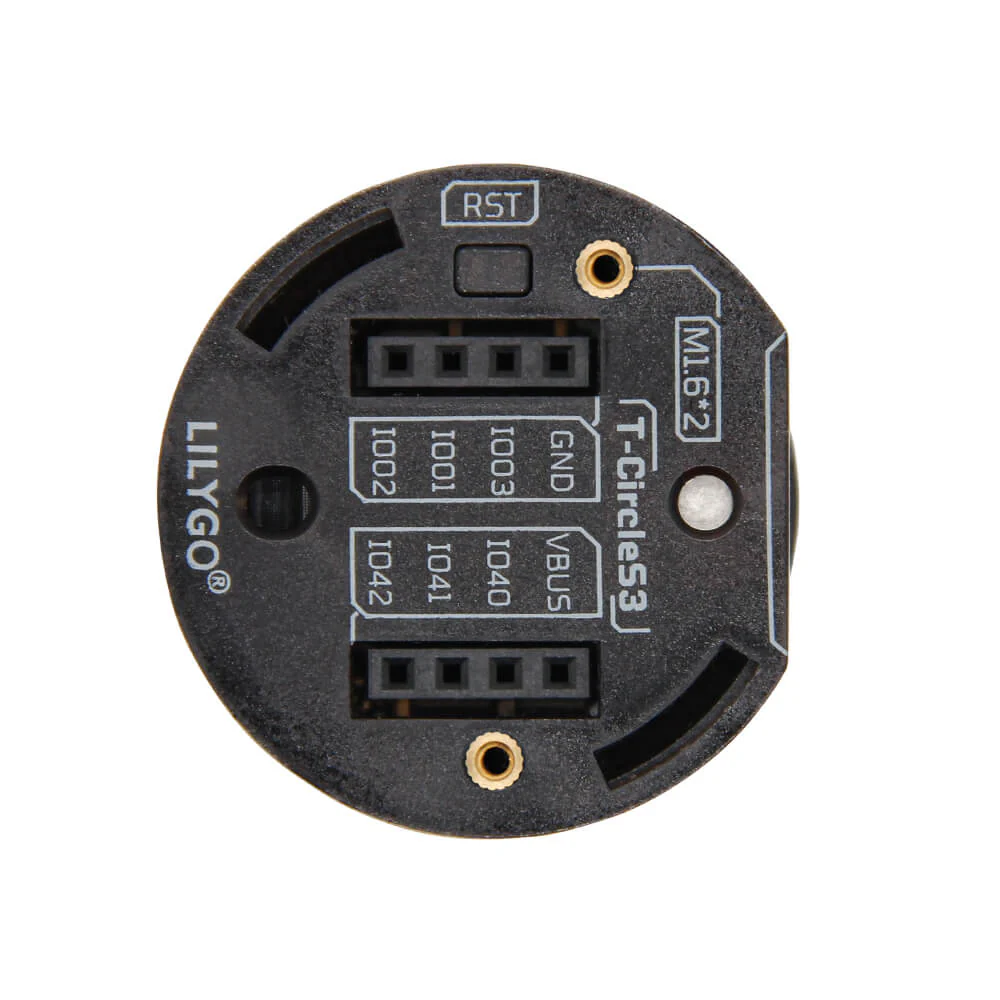

T-Circle-S3 is a development board with a 0.75-inch onboard small screen developed based on the ESP32S3, equipped with a speaker, microphone, and three-color LED lights. It has six programmable input/output IO ports on the back, which can be expanded to connect a variety of peripherals.

Specifications [T-Circle S3]

MCU	ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity	2.4 GHz Wi-Fi & Bluetooth5 (LE)
Development	Arduino, PlatformIO-IDE, ESP-IDF
Flash	16MB
PSRAM	8MB
Size	32*17mm
USB Charging	5v 500mA

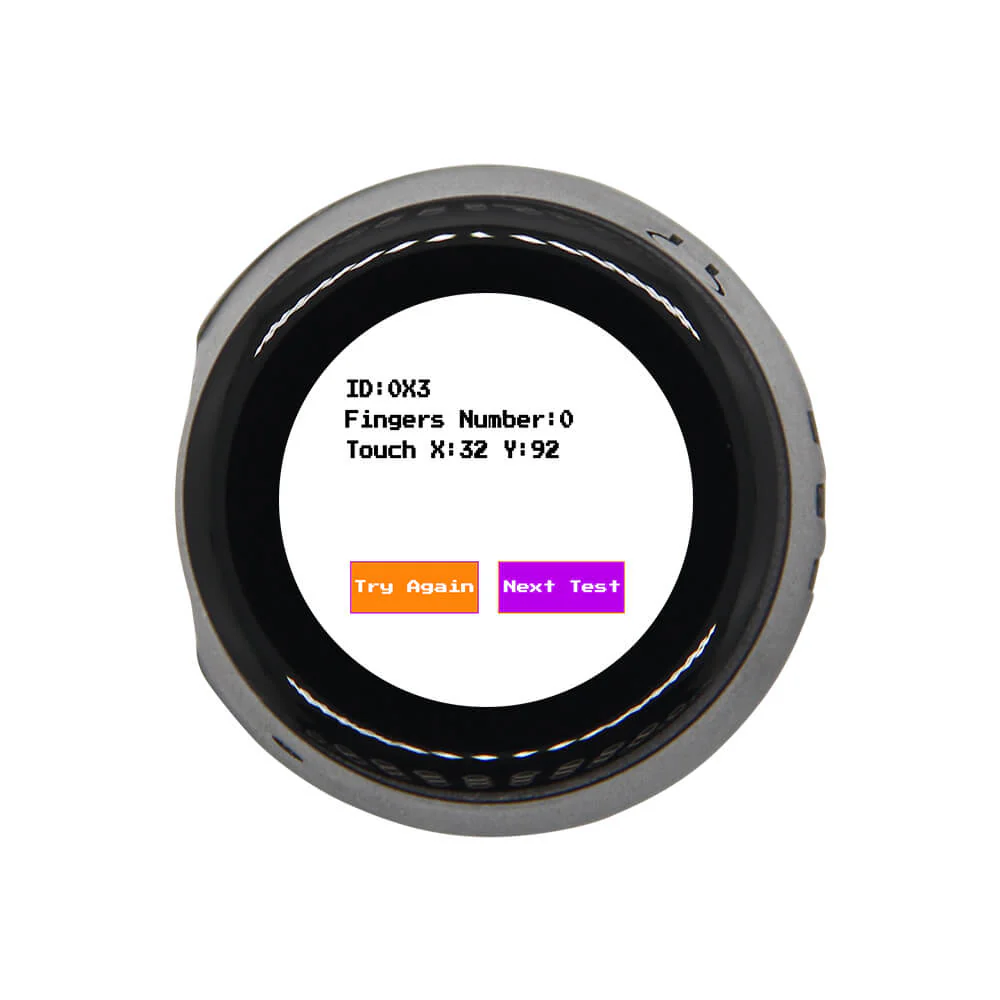

0.75-inch 4SPI TFT LCD

Driver IC	GC9D01N
Resolution	160RGB X 160

Specifications [T-Circle]

--- LILYGO GitHub Support ---

ℹ️Product Information T-Circle T-Circle S3 Check out our GitHub repository for sample code and more detailed information about this board. 🧑💻Technical support Visit our GitHub community, post a description of the problem and our engineers will help you directly.



Pin Diagram

What's In the Box

T-Circle S3

T-Circle
