T-Camera S3
LilyGo New Development Boards, adapts to T-Camera shell.
Specifications
| MCU | ESP32-S3FN1 6R8 Dual-core microprocessor |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5 + BT mesh |
| Programming Platform | Arduino-ide、 VS Code |
| PSRAM | 8MB |
| Flash | 16MB |
| OV2640-Camera module(Optional OV5640 Ver) |
| Pixels | 2 Million (UXGA 1622X1200) |
| Voltage | 3.3V |
| OLED I2C SSD1306 0.96 inch |
| Resolution | 128x64 |
| Drive Protocol | I2C |
| SDA | IO07 |
| SCL | IO06 |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
T-Camera S3

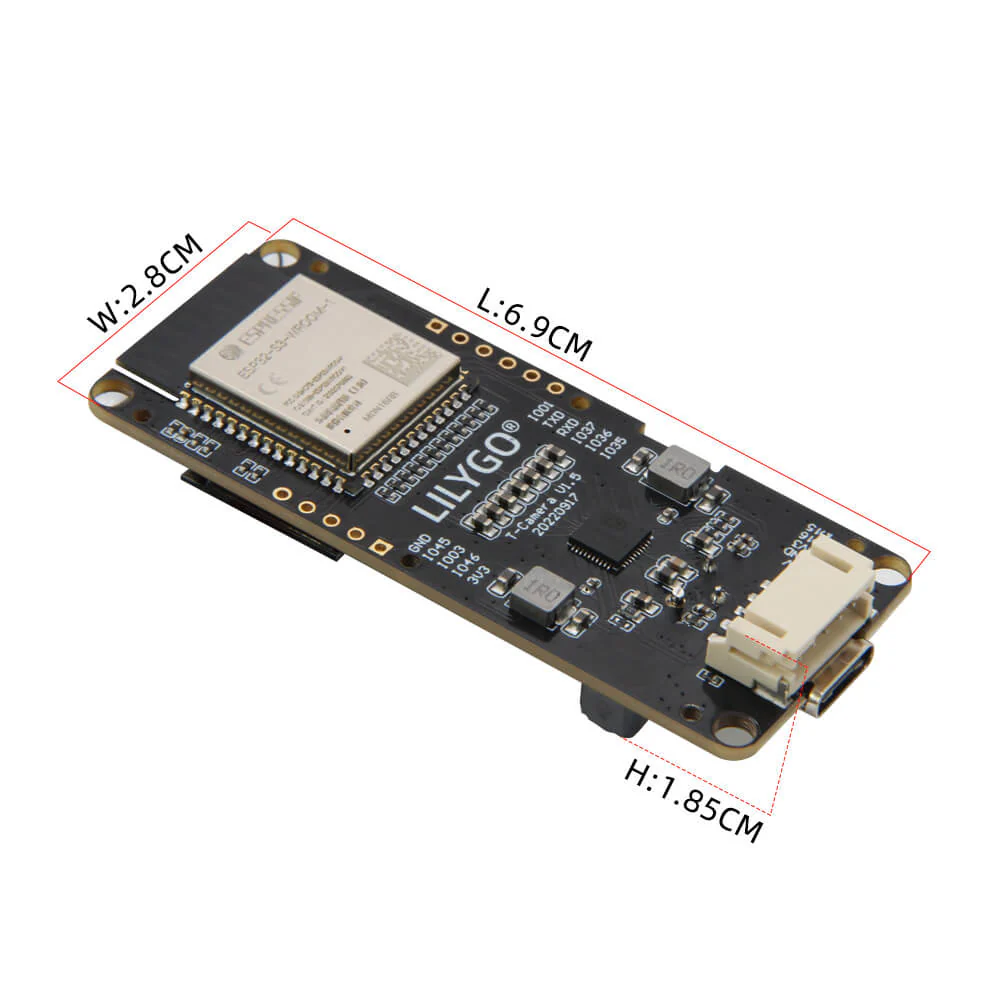

Size

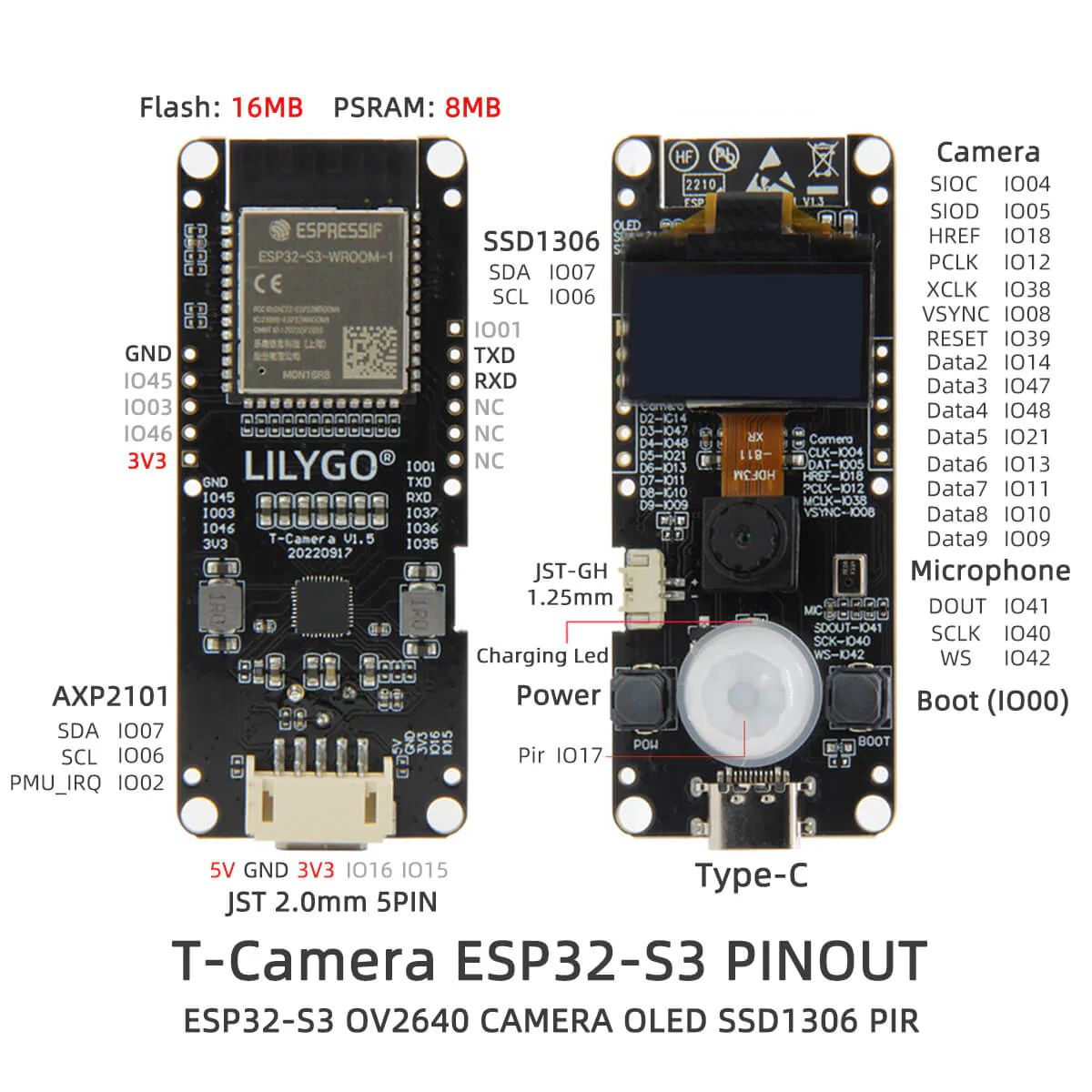

Pin Diagram
More Details
LilyGo New Development Boards, adapts to T-Camera shell.
Specifications
| MCU | ESP32-S3FN1 6R8 Dual-core microprocessor |
| Wireless Connectivity | Wi-Fi 802.11, BLE 5 + BT mesh |
| Programming Platform | Arduino-ide、 VS Code |
| PSRAM | 8MB |
| Flash | 16MB |
| OV2640-Camera module(Optional OV5640 Ver) |
| Pixels | 2 Million (UXGA 1622X1200) |
| Voltage | 3.3V |
| OLED I2C SSD1306 0.96 inch |
| Resolution | 128x64 |
| Drive Protocol | I2C |
| SDA | IO07 |
| SCL | IO06 |
Sample Code For Reference [Github]
If you need technical support please check below link to find more details.
T-Camera S3
Size
Pin Diagram
More Details
