Since AXP192 is out of production, it is now replaced by AXP2101.

------------------------------------------------------------------------------------

This T-PCIE is equipped with a 4.0H socket, which is used to link the T-PCIE SIM module. We have many T-PCIE SIM modules, you can match freely, we have SIM868, SIM7000X, SIM7600X, SIM7020X, SIM7070X, SIM7080X, A7608X-H, and A7670X.

LILYGO® 2022/4/8

Hardware Specifications
Chipset	ESP32-WROVER-B/E(B and E are shipped randomly)
FLASH	4MB/16M
PSRAM	8MB
SRAM	520 kB SRAM
Button	PWR Power Switch,Reset
USB to TTL	CH9102F
On-board clock	40MHz crystal oscillator
Peripherals	SIM Nano Card Slot,Mini PCIE Card Slot
Antenna	Onboard antenna(Default)
Working voltage	2.7V-3.6V
Working current	-
Sleep current	About 700uA
Working temperature range	-40℃ ~ +85℃
Size	753310.5mm
Weight	14.5g

Power Supply Specifications
Power Supply Input	USB 5V/1A
Charging current	500mA
Battery Input	3.7-4.2V
Charge IC	AXP192
JST Connector	2Pin 2.0mm
USB	Type-C

Technology Support [Github]

If you need technical support please check the link to find more details.

T-PCIE

Pin Diagram

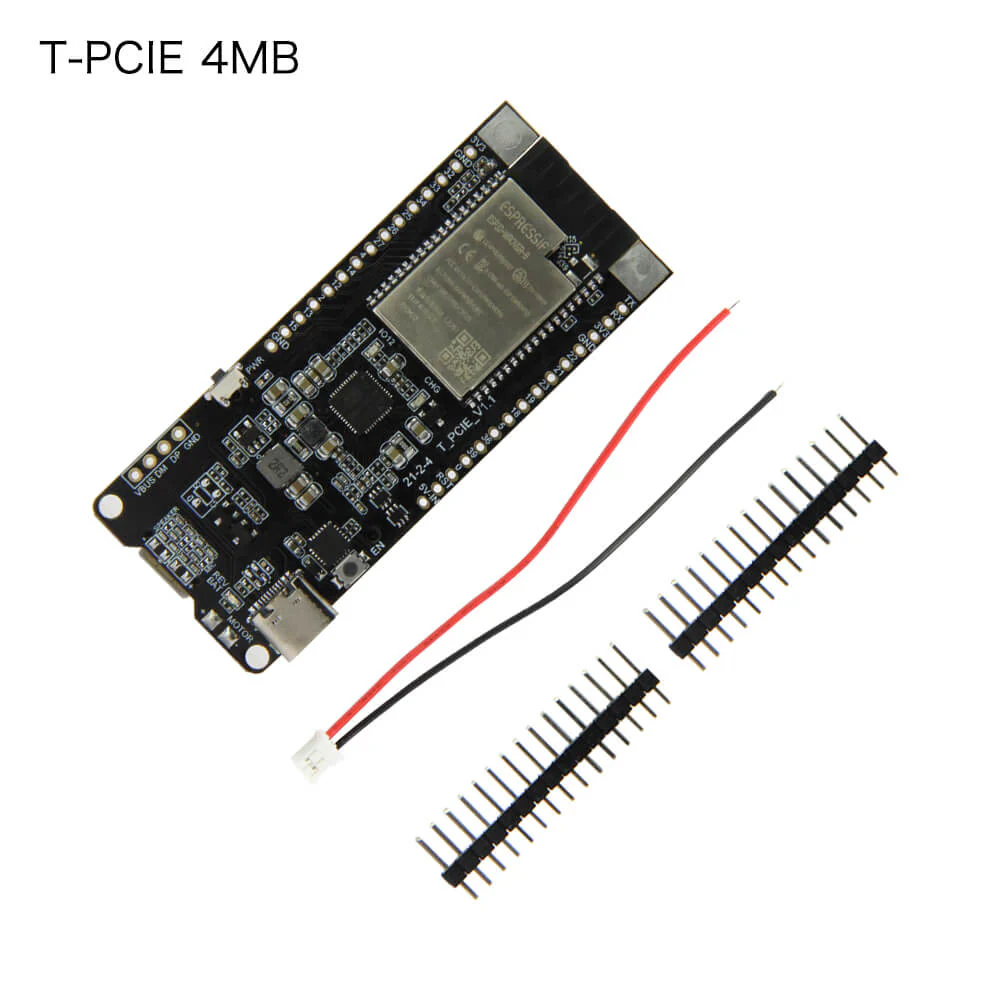

What's In The Box

T-PCIE CH9102

1 XT-PCIE CH9102 4MB/ 16MB
1 X Charging Cable
2XPin

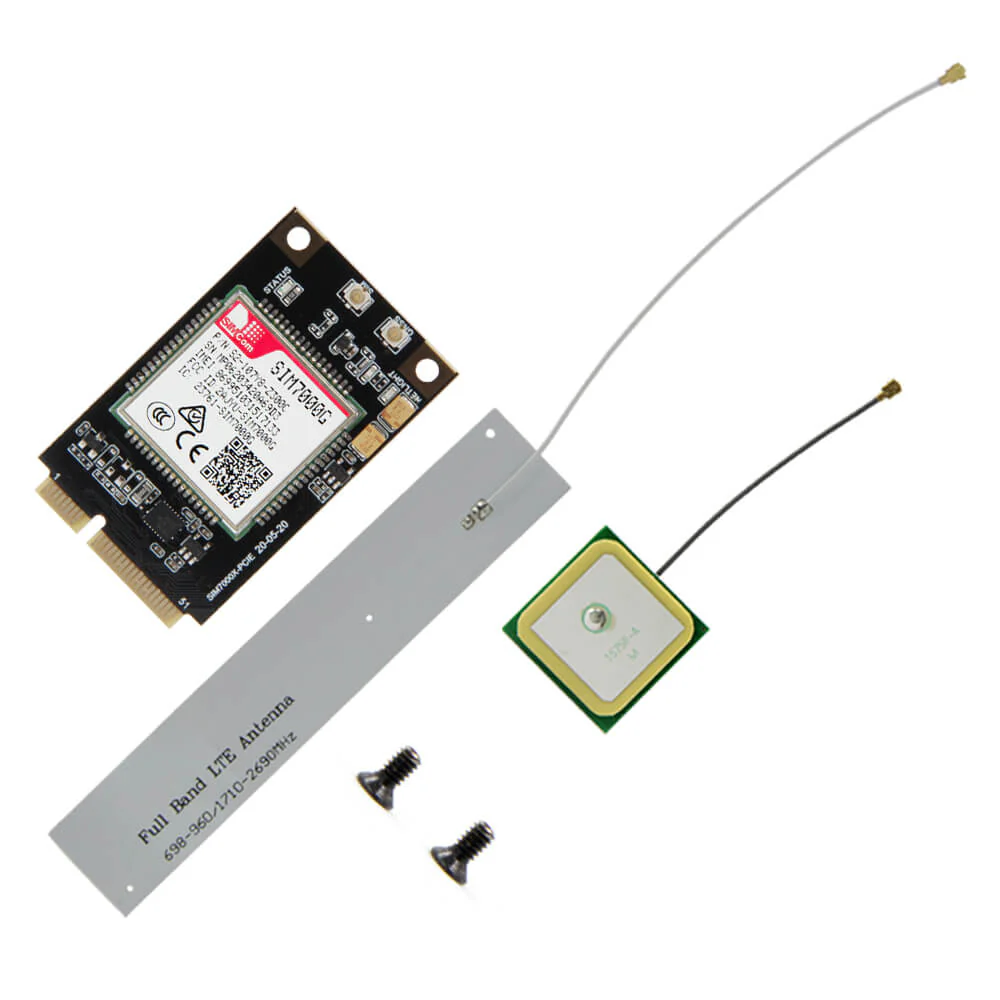

T-PCIE

1X SIM module [no MCU on board]
1X LET Antenna
1X GPS Antenna
2X Screw

[Note: The SIM module is for reference only, the specific model depends on your purchased version ]
[No MCU on board, you need to purchase the main control module separately and then use it together. ]

T-SIM / T-PCIE Series

Price

Collections

T-Call

T-SIM7000G

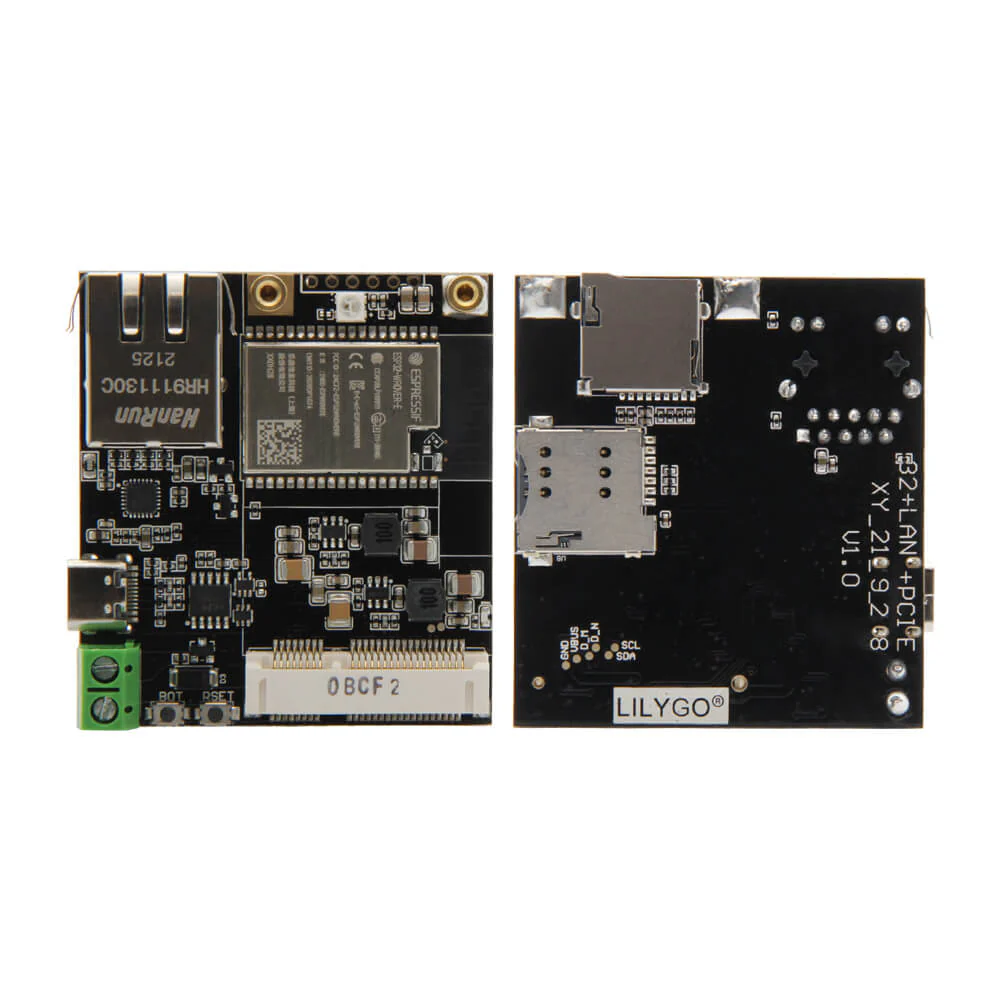

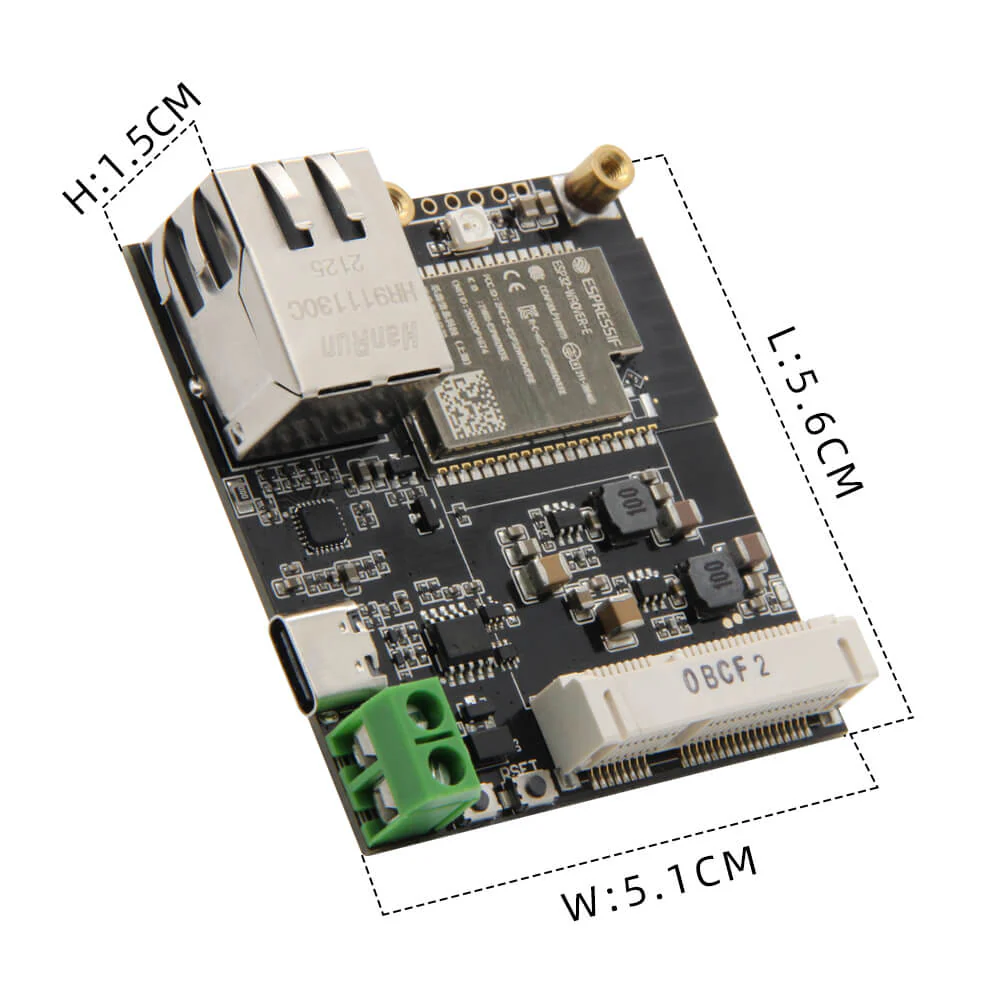

T-Internet-COM

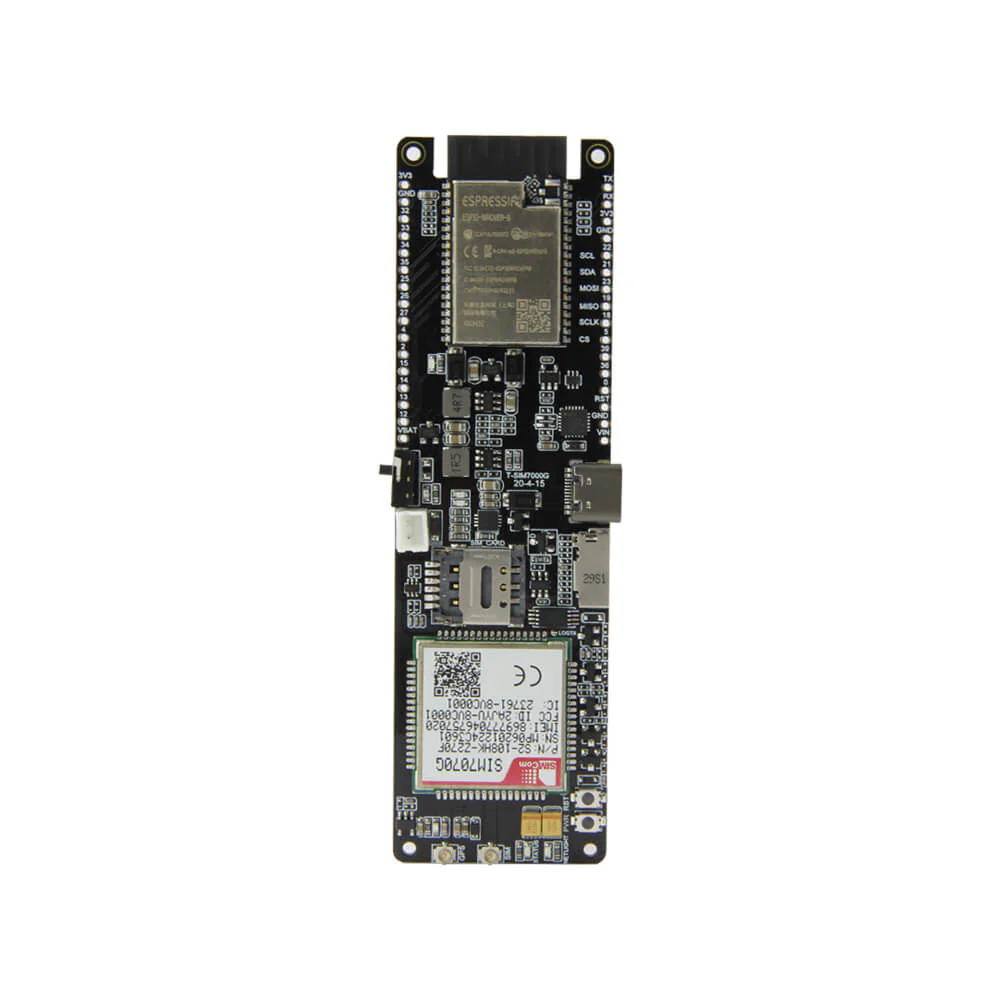

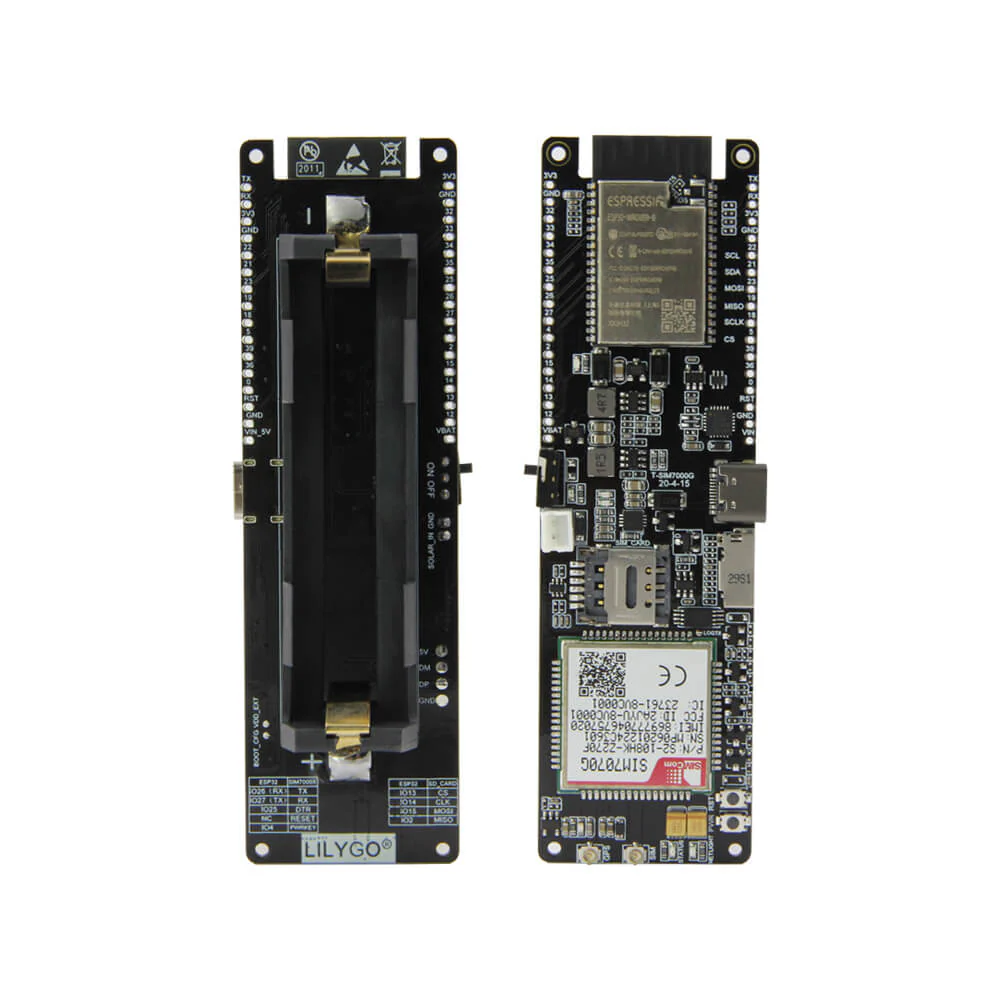

T-SIM7070G

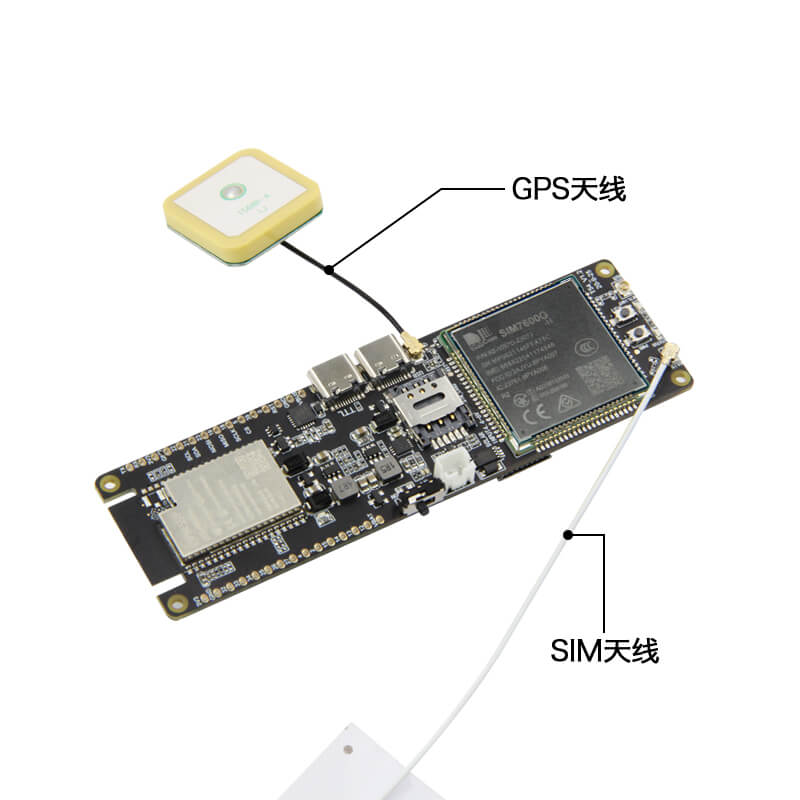

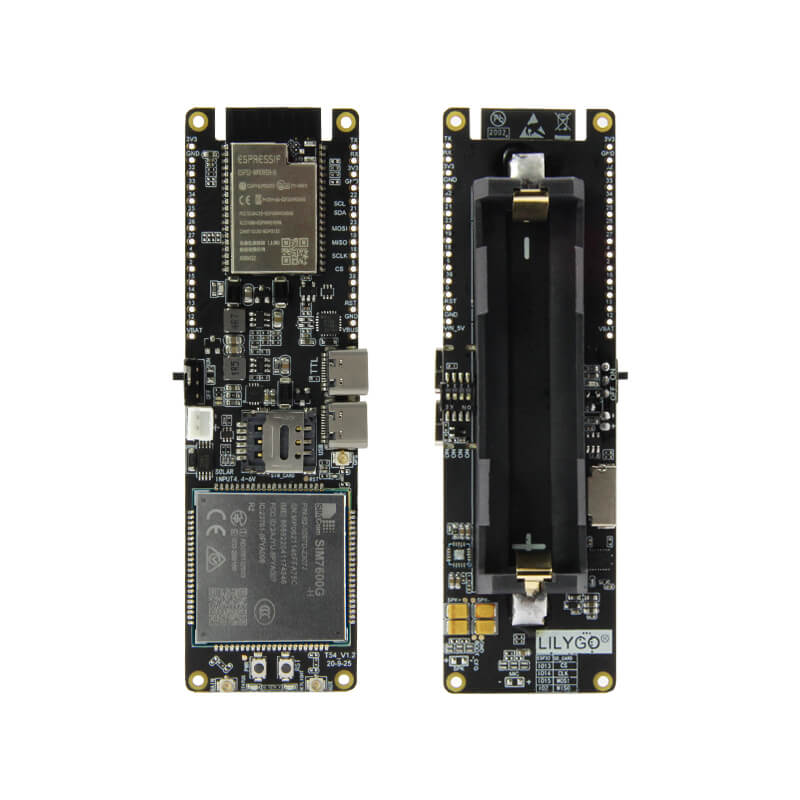

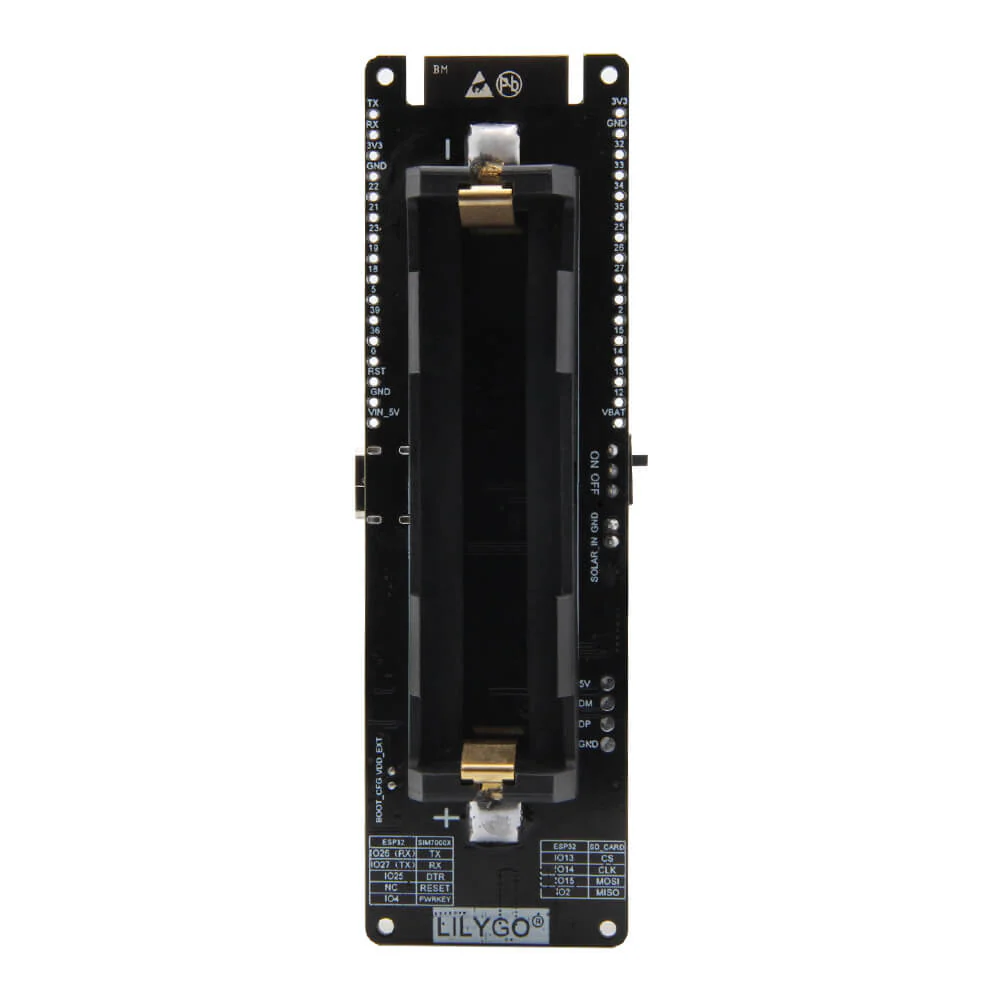

T-SIM7600E/G/SA-H

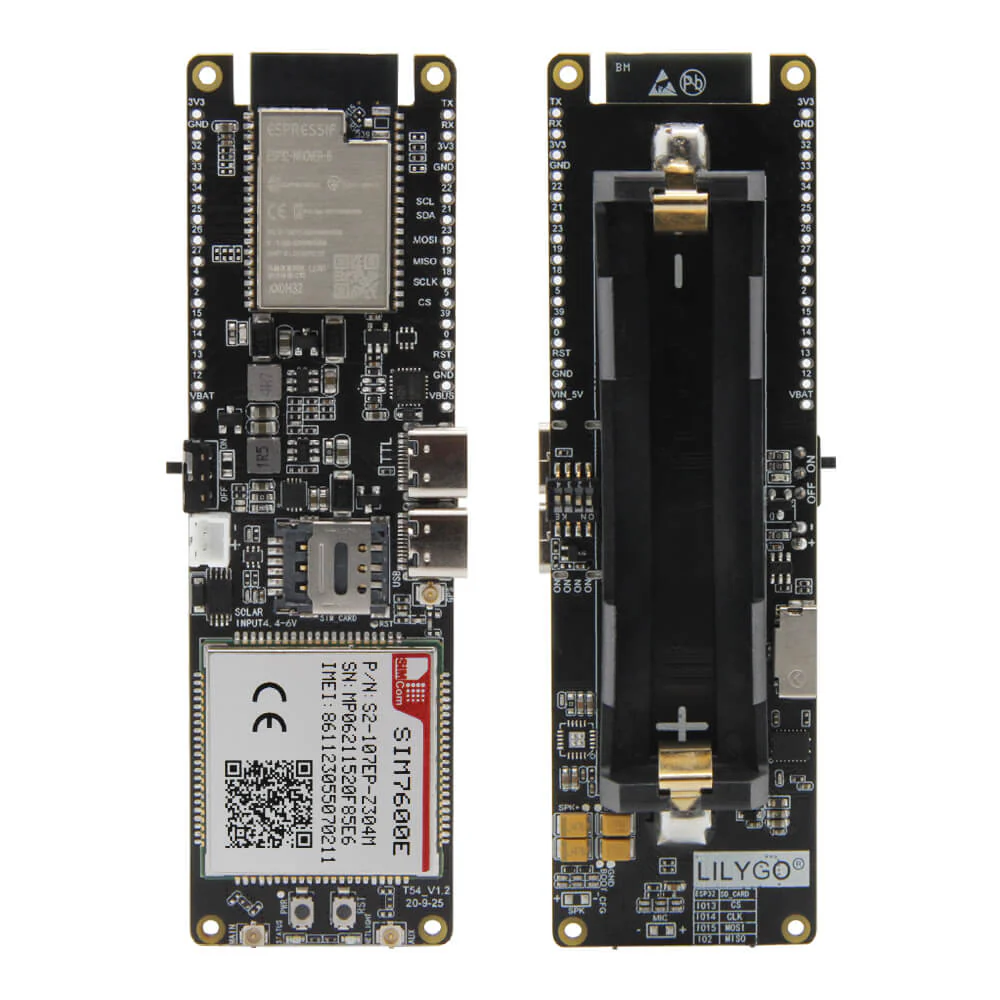

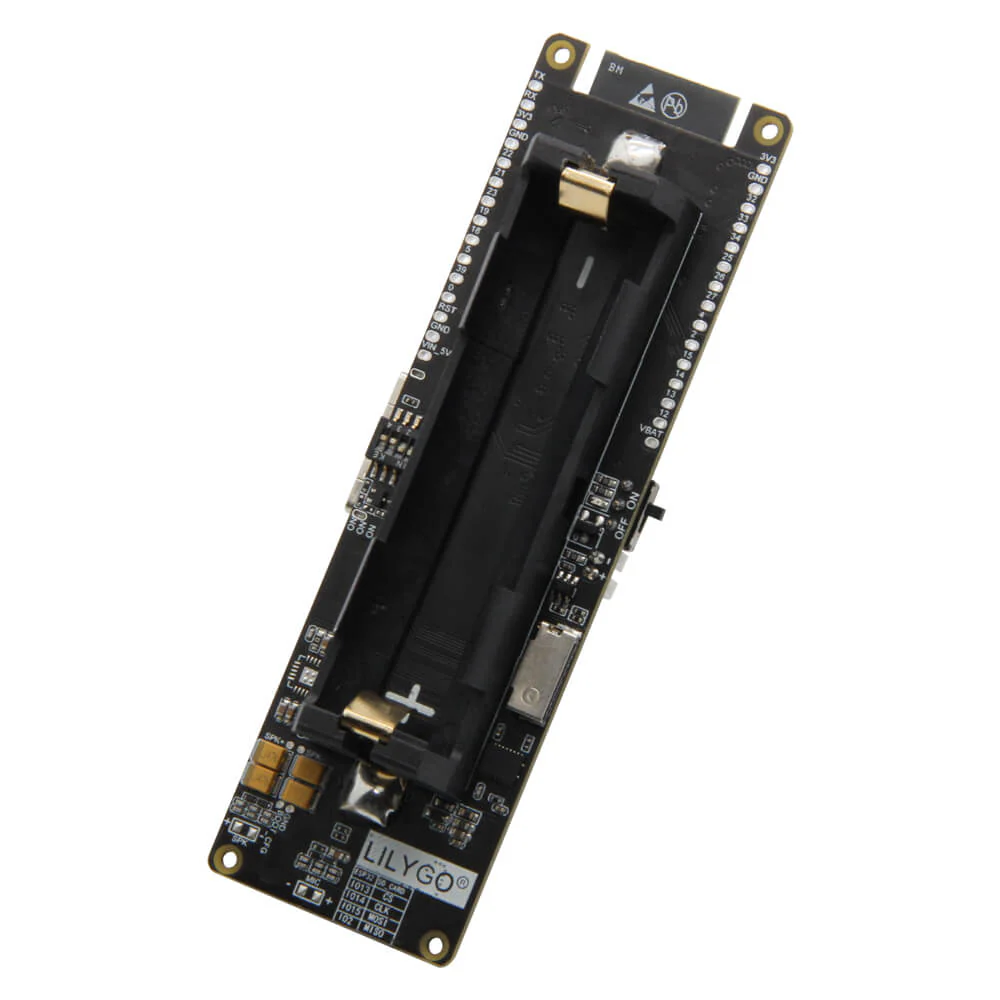

T-SIM7600E-L1

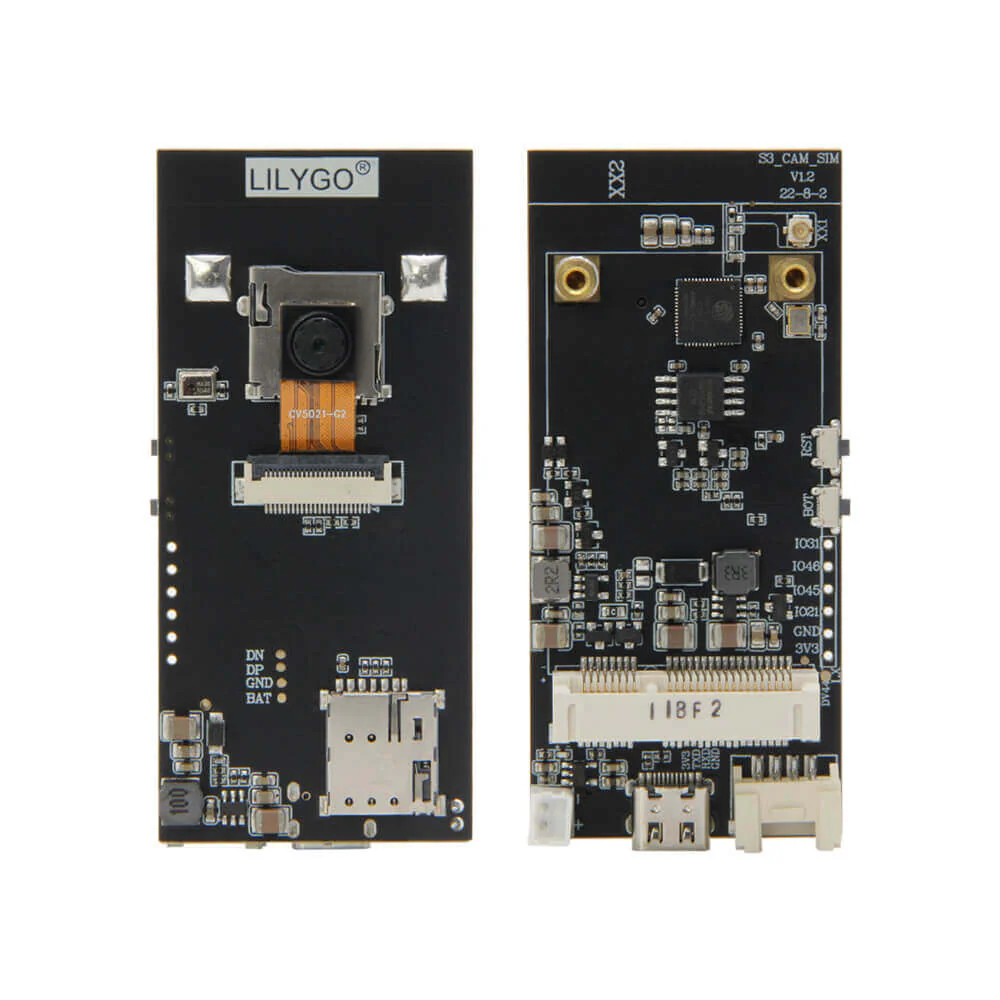

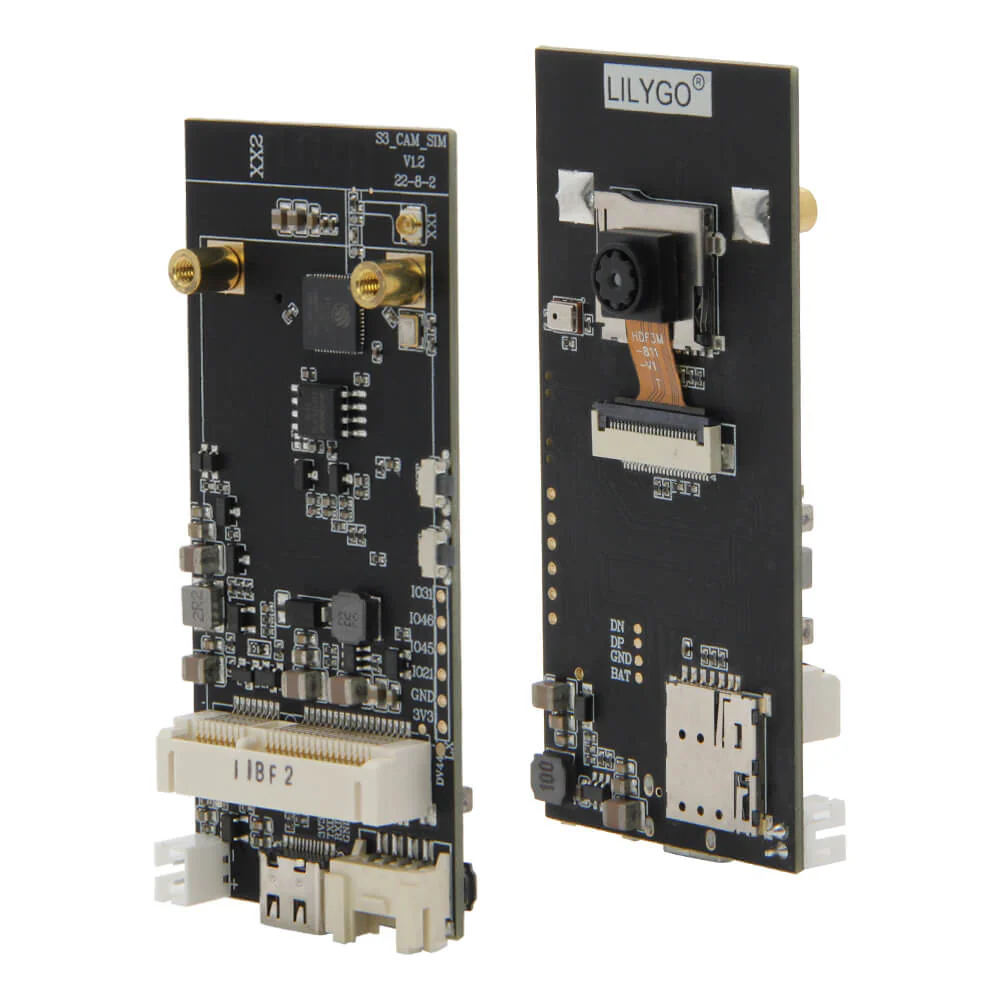

T-SIMCAM

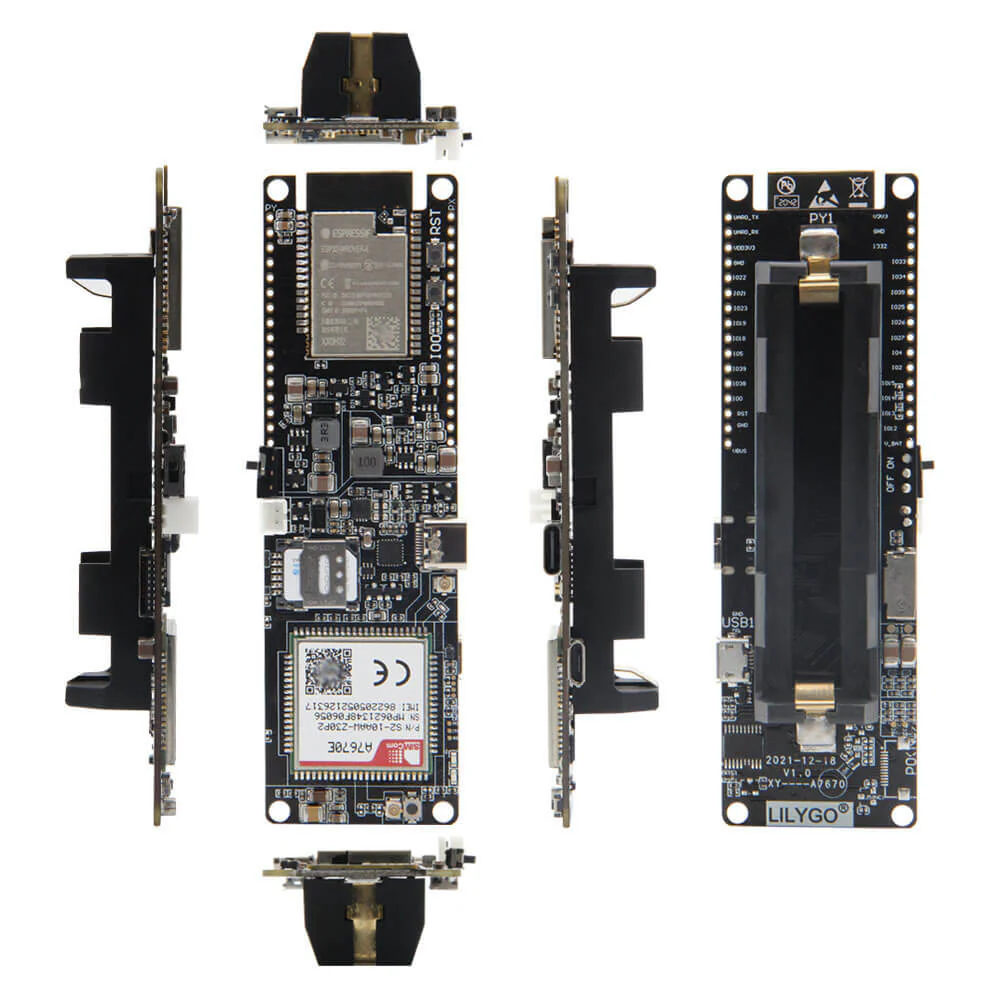

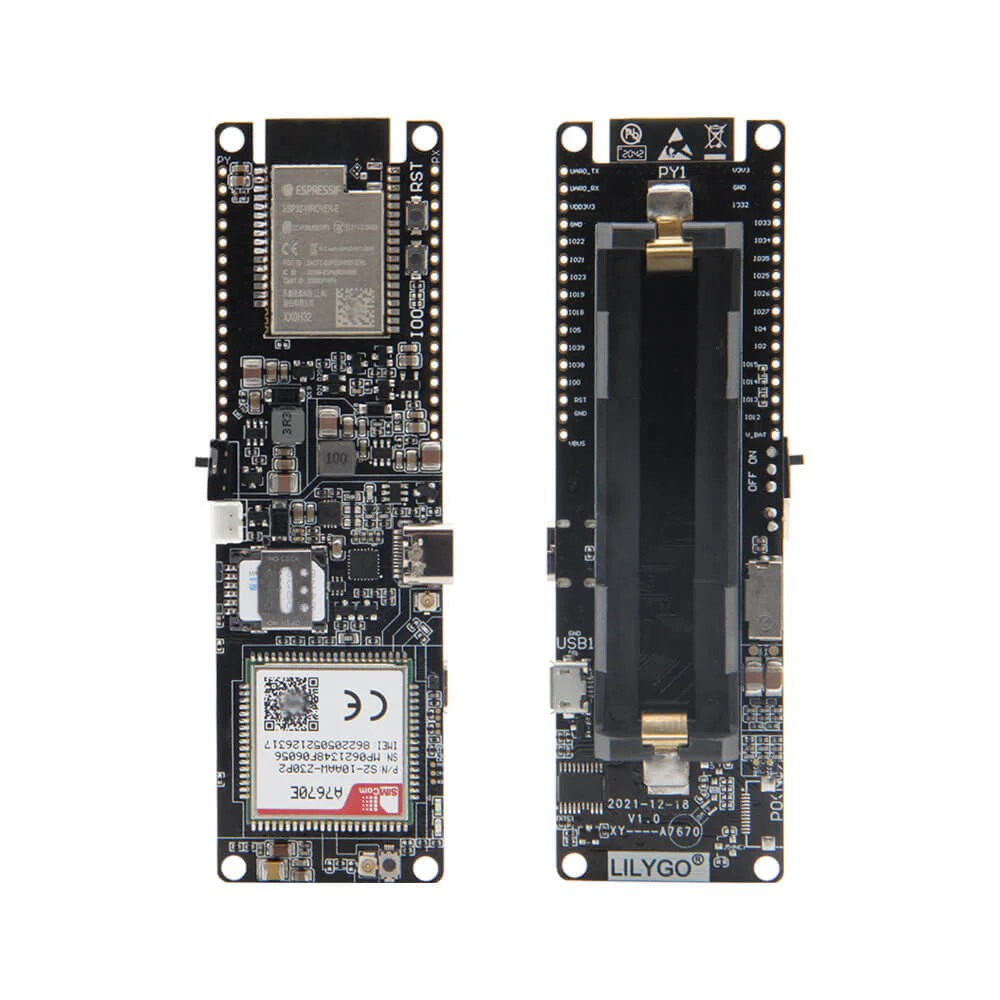

T-A7670E/G/SA R2

T-PCIE

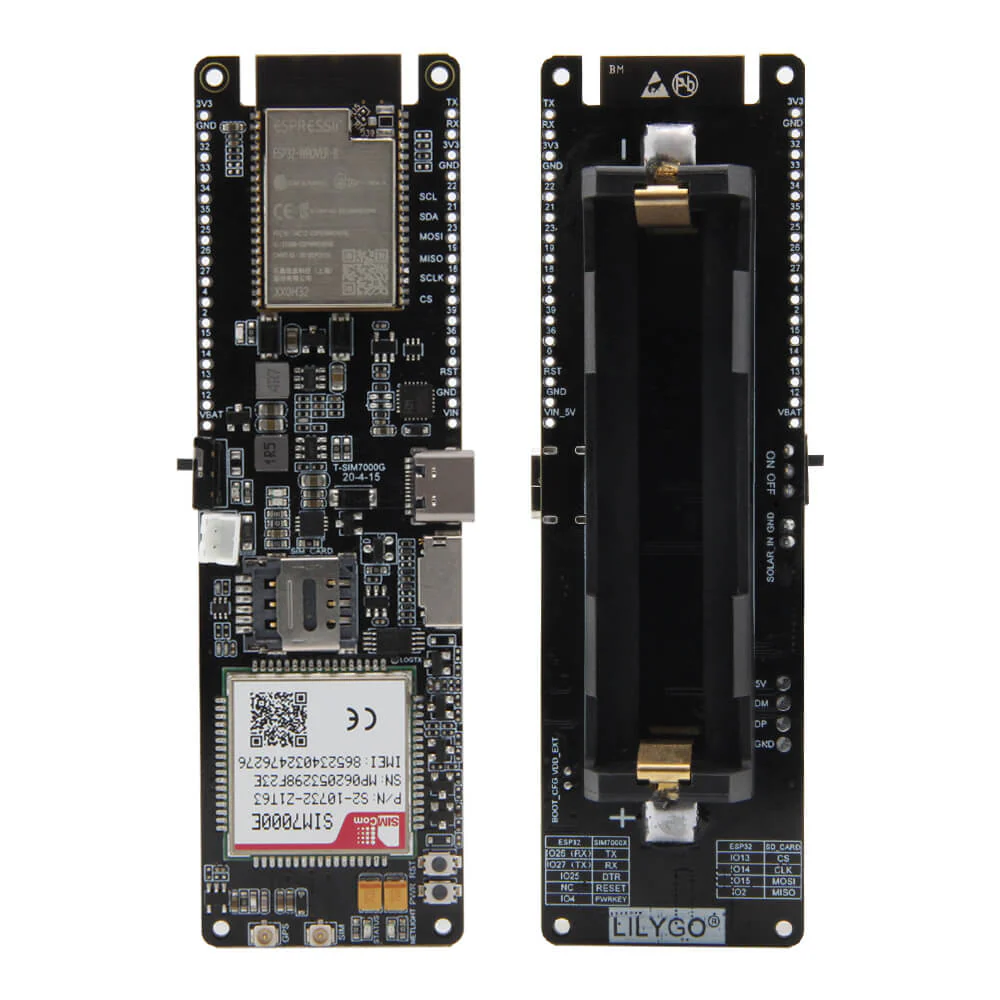

T-SIM7000E

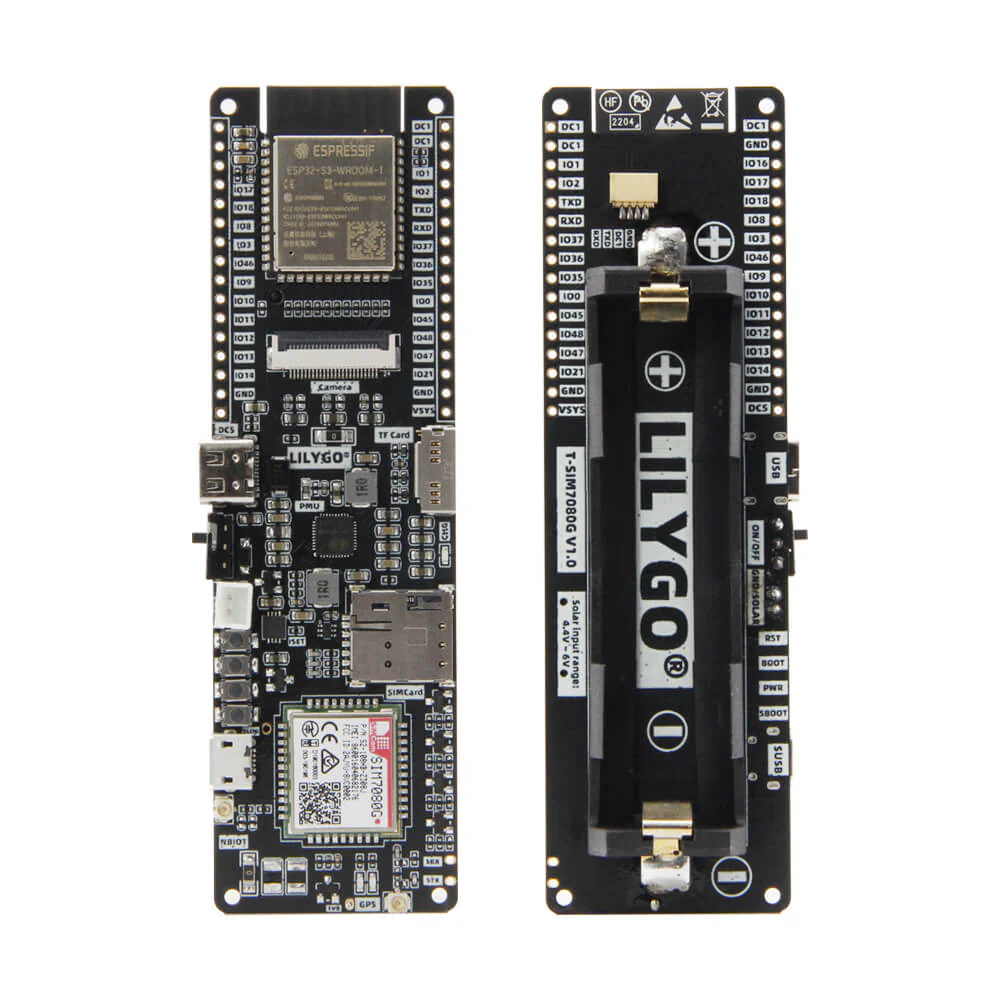

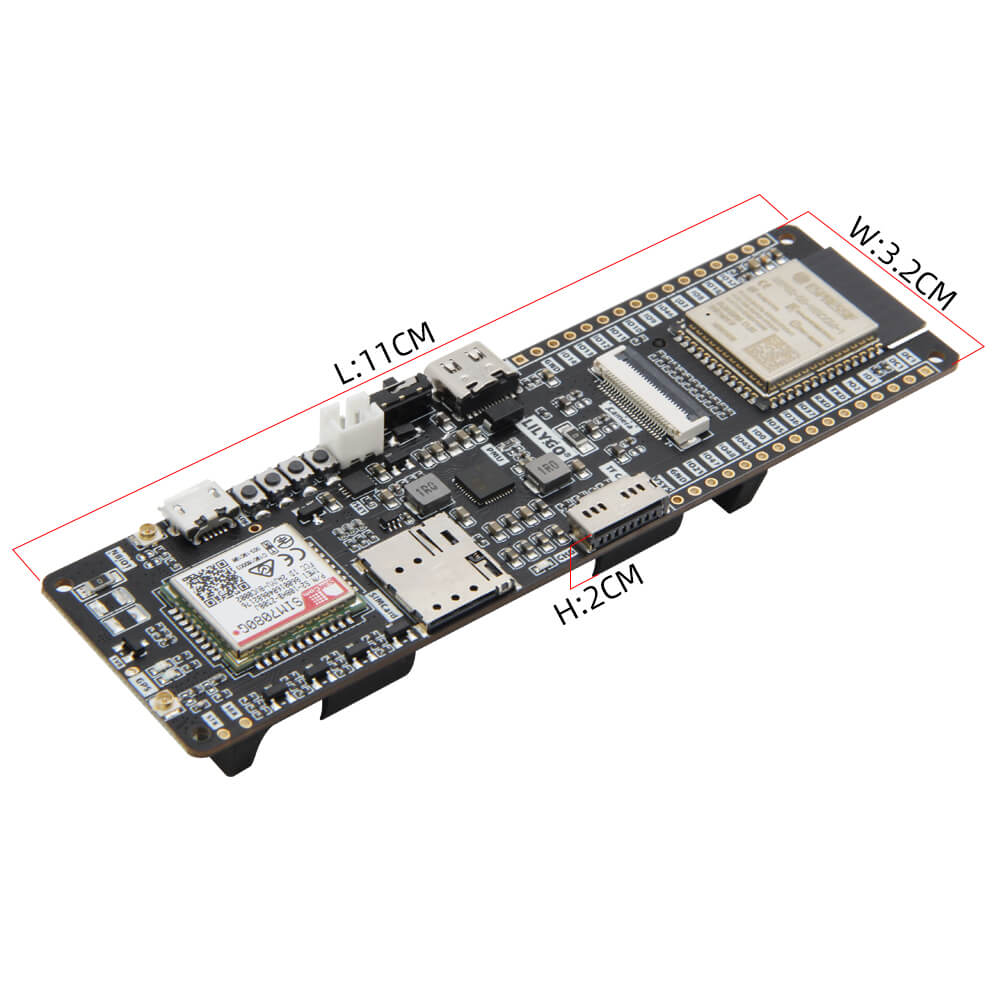

T-SIM7080G S3

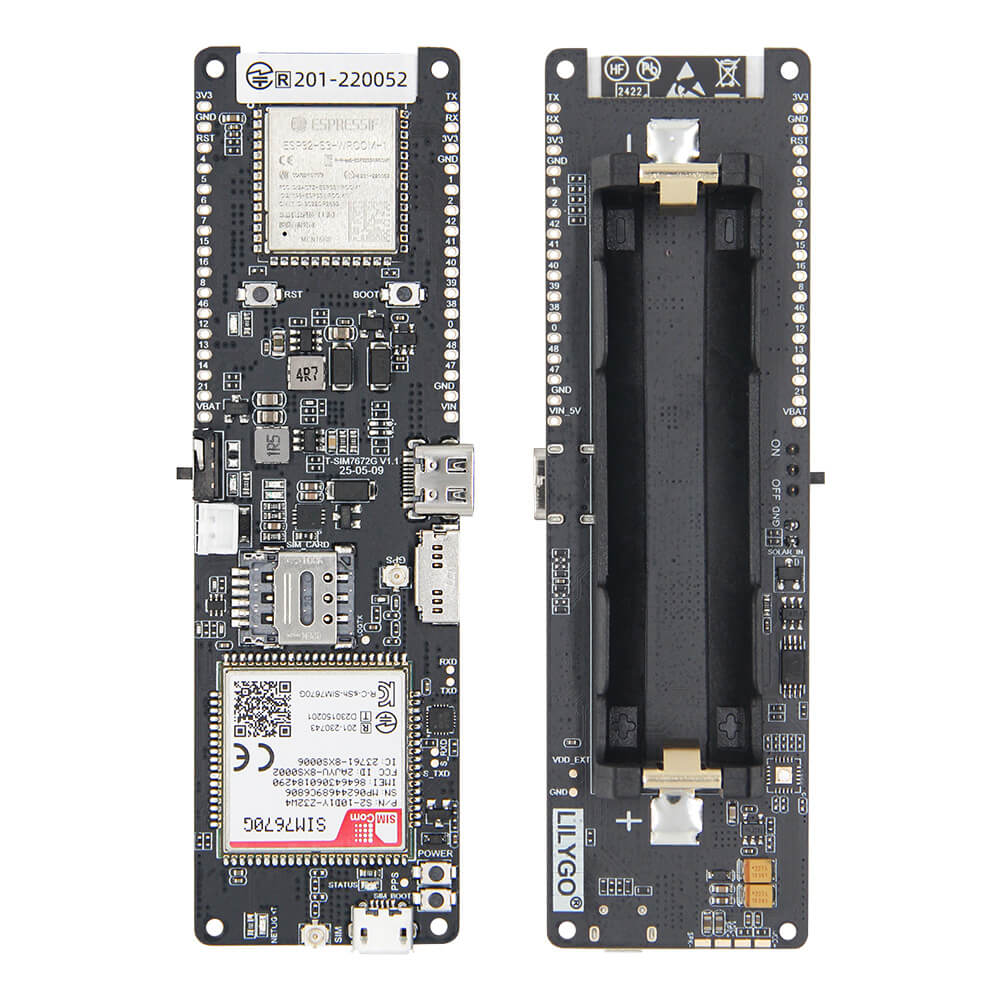

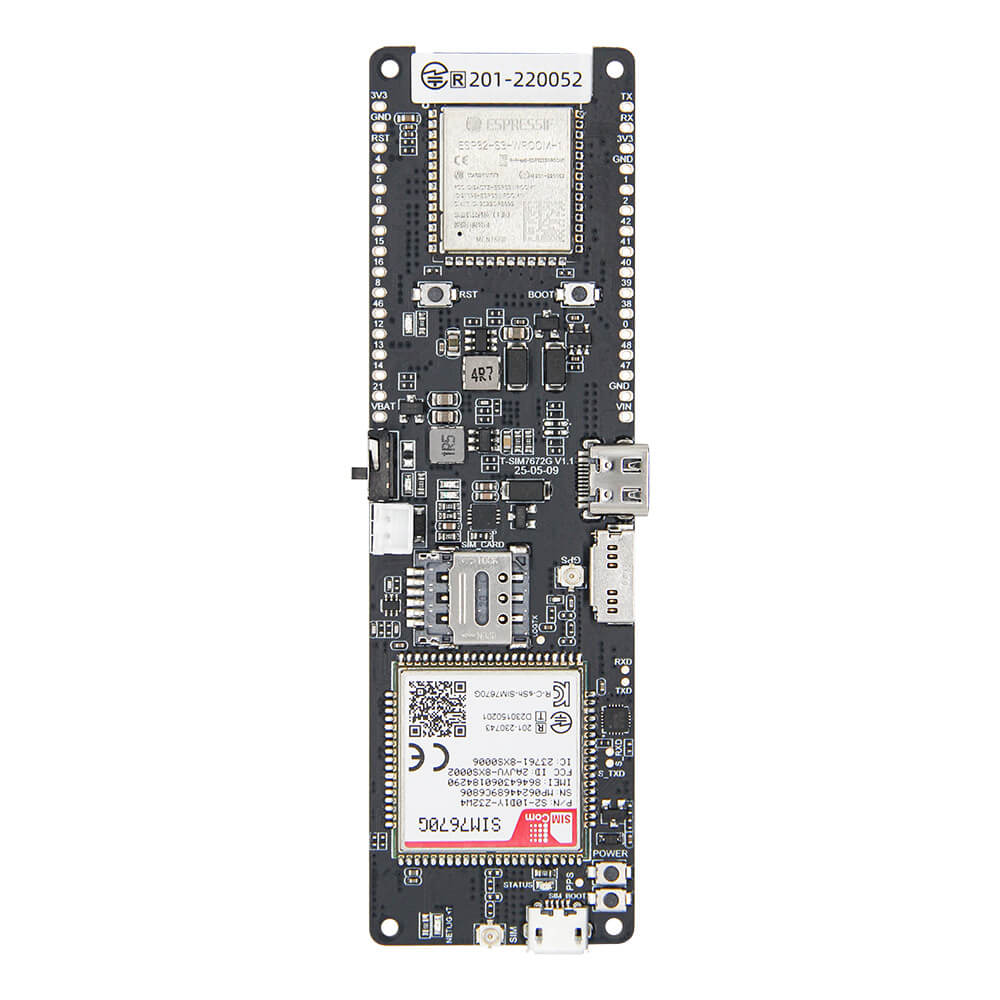

T-SIM7670G S3
