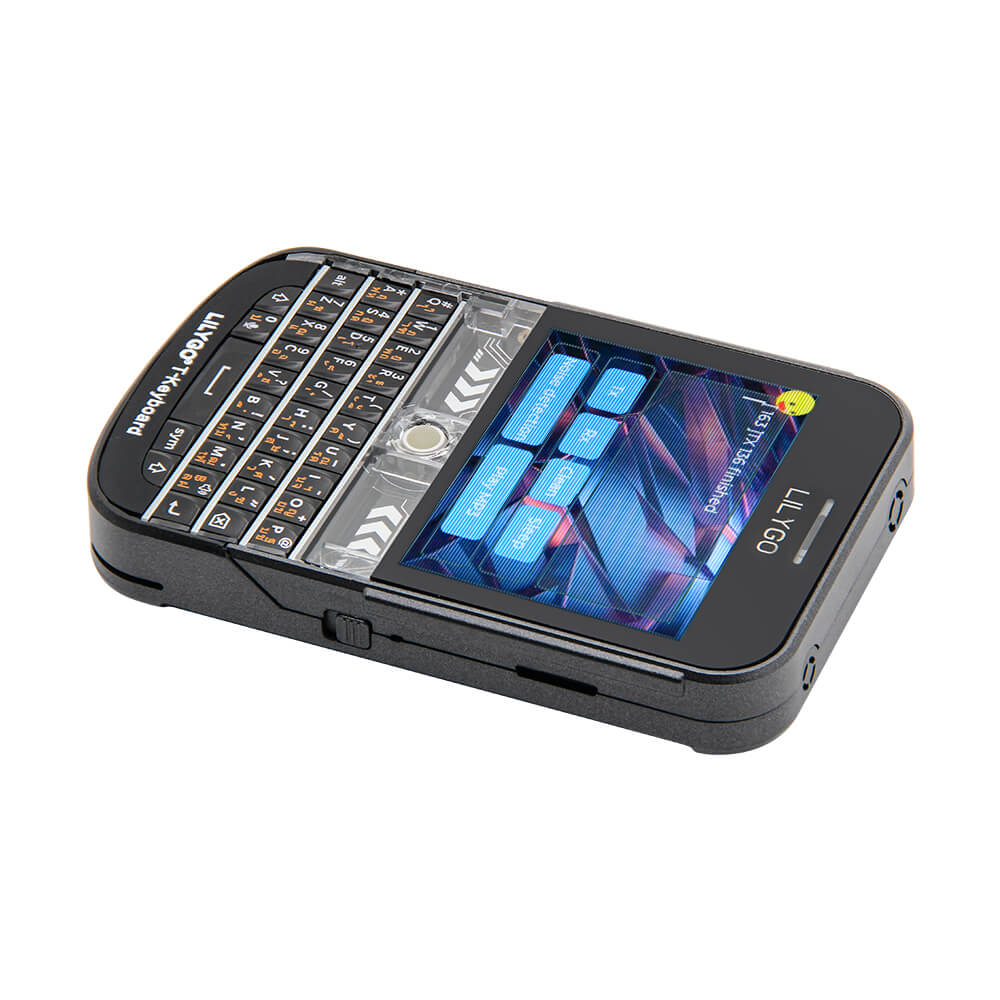

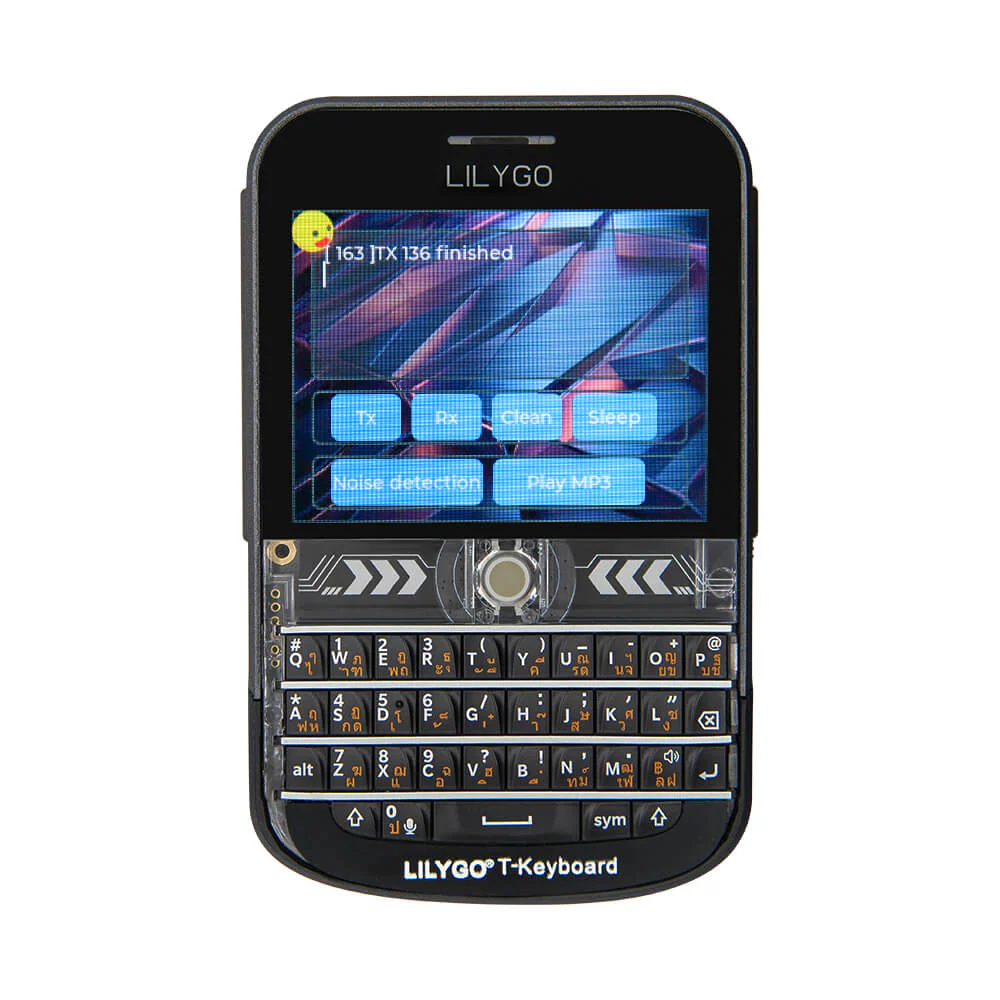

Upgraded based on T-Deck, mainly added GPS module, and Built-in 2000 mah battery

【Keyboard letter styles are sent randomly】

Specifications

MCU	ESP32-S3FN16R8 Dual-core LX7 microprocessor
Wireless Connectivity	2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development	Arduino, PlatformlO-IDE, Micropython
Flash	16MB
PSRAM	8MB
Battery ADC PIN	IO04
Onboard functions	GPS,TF Card,Microphone,Speaker

2.8 inch ST7789 SPI Interface IPS LCD: Resolution: 320 x 240 Full viewing angle

SX1262 LoRa Transceiver

Transmit power	+22dBm
Frequency Optional	433/868/915Mhz

--- LILYGO GitHub Support ---

ℹ️Product Information Check out our GitHub repository for sample code and more detailed information about this board.  🧑‍💻Technical support Visit our GitHub community, post a description of the problem and our engineers will help you directly.

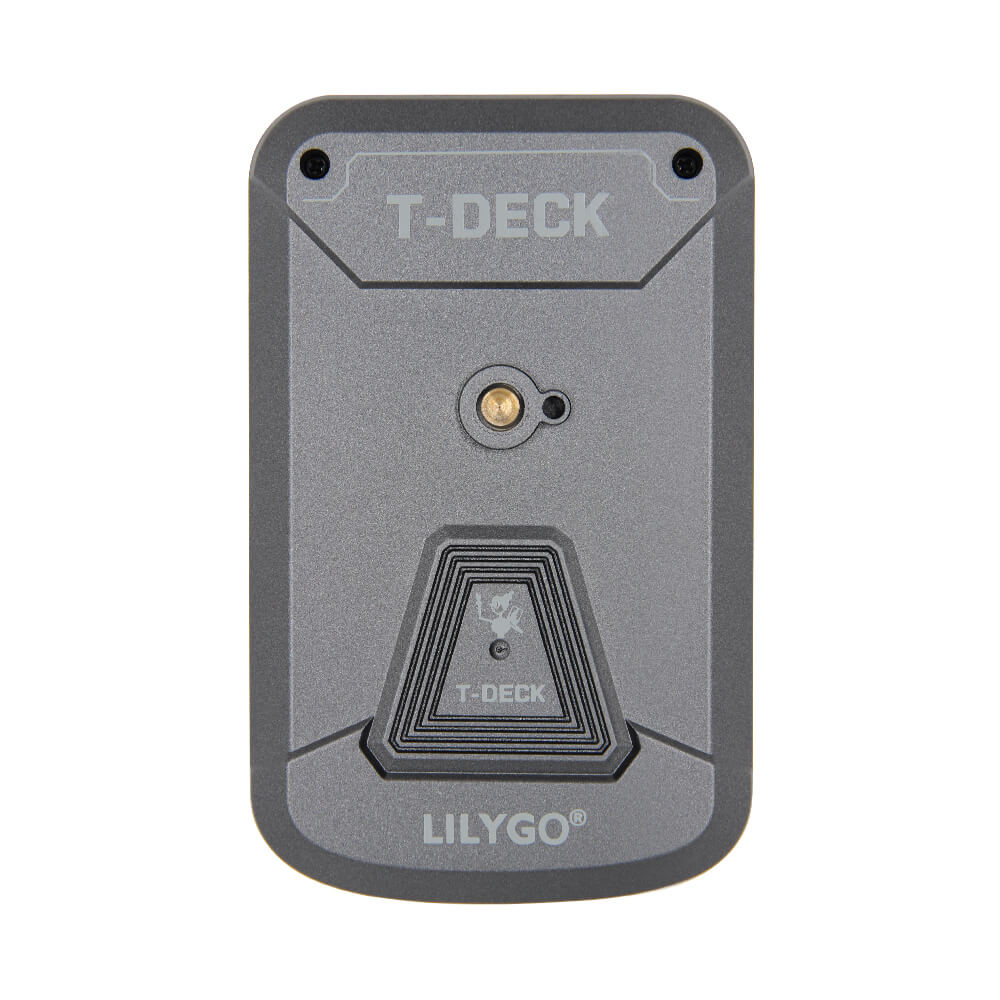

An external antenna connector is reserved on the case, you can connect it by opening the small hole in the case.

Pin Diagram

More

What's In The Box

433Mhz
